Toyota Camry/hybrid AXVH70 RADIATOR GRILLE

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53101-33640	AXVH70..D NO PAINT REQ.,ATARA S	02/2021 - 12/2999	1
53101-33640	AXVH70..V;AXVA70,GSV70..SE NO PAINT REQ.	02/2021 - 12/2999	1
53101-33640	AXVH70..D NO PAINT REQ.,ATARA SL	02/2021 - 12/2999	1
53101-33620	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD NO PAINT REQ.	02/2021 - 12/2999	1
Common parts
90109-06388
90167-50063
90179-06362
90467-07220
Linked diagrams
5201
7501
8408
8606

Click highlighted areas on diagram

Part #	Description	Period	Qty
52111F - BAR, FRONT BUMPER, CENTER
52111-33900	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD	02/2021 - 12/2999	1
52161K - PIECE, FRONT BUMPER
52161-16010	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD	02/2021 - 12/2999	2
53101 - GRILLE SUB-ASSY, RADIATOR
53101-33640	AXVH70..D NO PAINT REQ.,ATARA S	02/2021 - 12/2999	1
53101-33640	AXVH70..V;AXVA70,GSV70..SE NO PAINT REQ.	02/2021 - 12/2999	1
53101-33640	AXVH70..D NO PAINT REQ.,ATARA SL	02/2021 - 12/2999	1
53101-33620	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD NO PAINT REQ.	02/2021 - 12/2999	1
53395J - SEAL, HOOD TO FRONT END PANEL
53395-33030	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD	02/2021 - 12/2999	1
Common parts
90109-06388
90167-50063
90179-06362
90467-04032
90467-07220
Linked diagrams
7501
8408

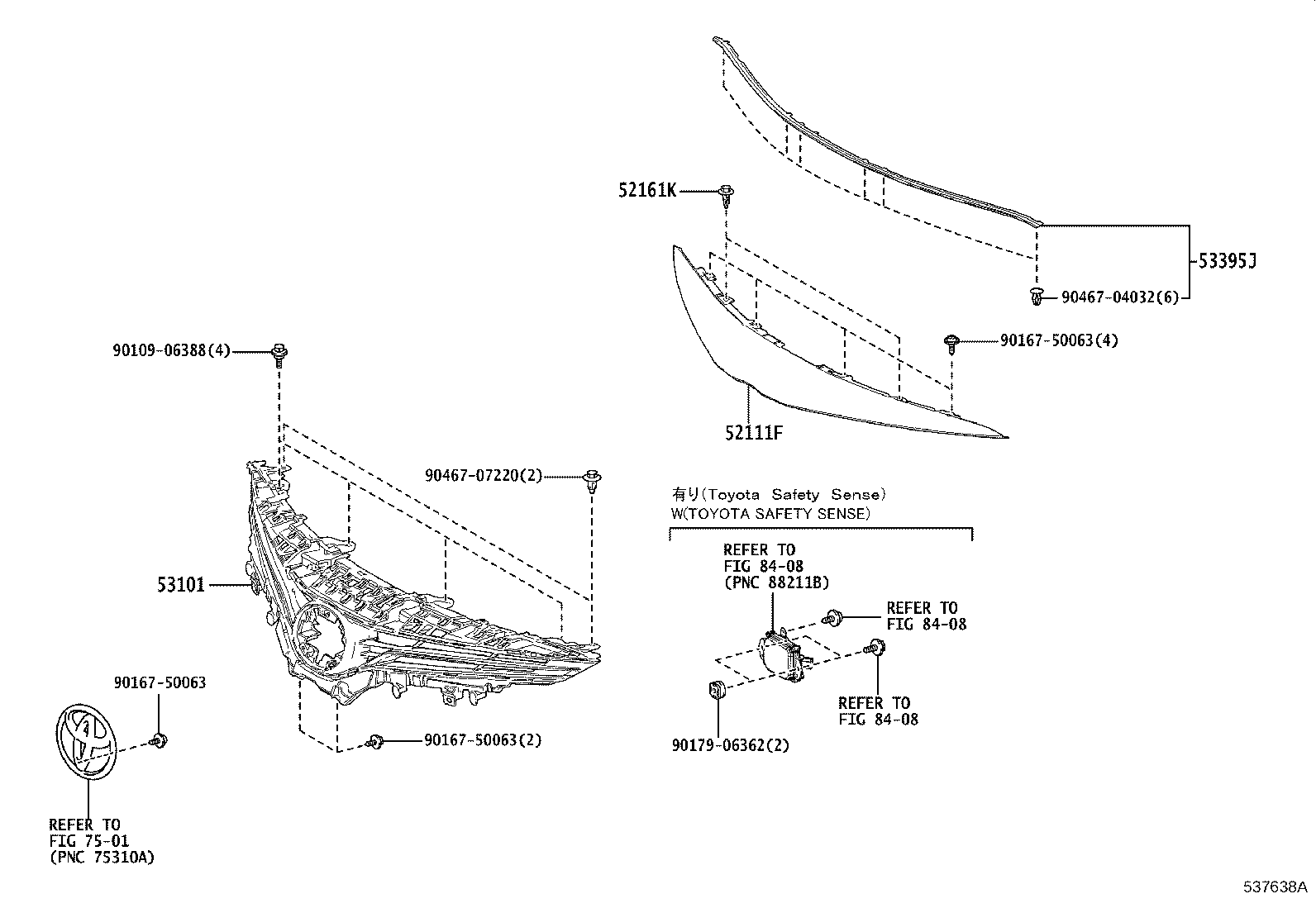

Click highlighted areas on diagram

Part #	Description	Period	Qty
53101 - GRILLE SUB-ASSY, RADIATOR
53101-33640	AXVH70..D NO PAINT REQ.,ATARA S	02/2021 - 12/2999	1
53101-33640	AXVH70..V;AXVA70,GSV70..SE NO PAINT REQ.	02/2021 - 12/2999	1
53101-33640	AXVH70..D NO PAINT REQ.,ATARA SL	02/2021 - 12/2999	1
53101-33620	AXVA70,AXVH7#,MXVA71..D;AXVA70,GSV70..GLE,LE,LIMD NO PAINT REQ.	02/2021 - 12/2999	1
Common parts
90109-06388
90167-50063
90179-06362
90467-07220
Linked diagrams
5201
7501
8408

AXVH70R-AEXDBQ (2021)
