AXVH70R-AEXDBQ (2020)

Toyota Camry/Hybrid

Production Aug 2020 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )ARL

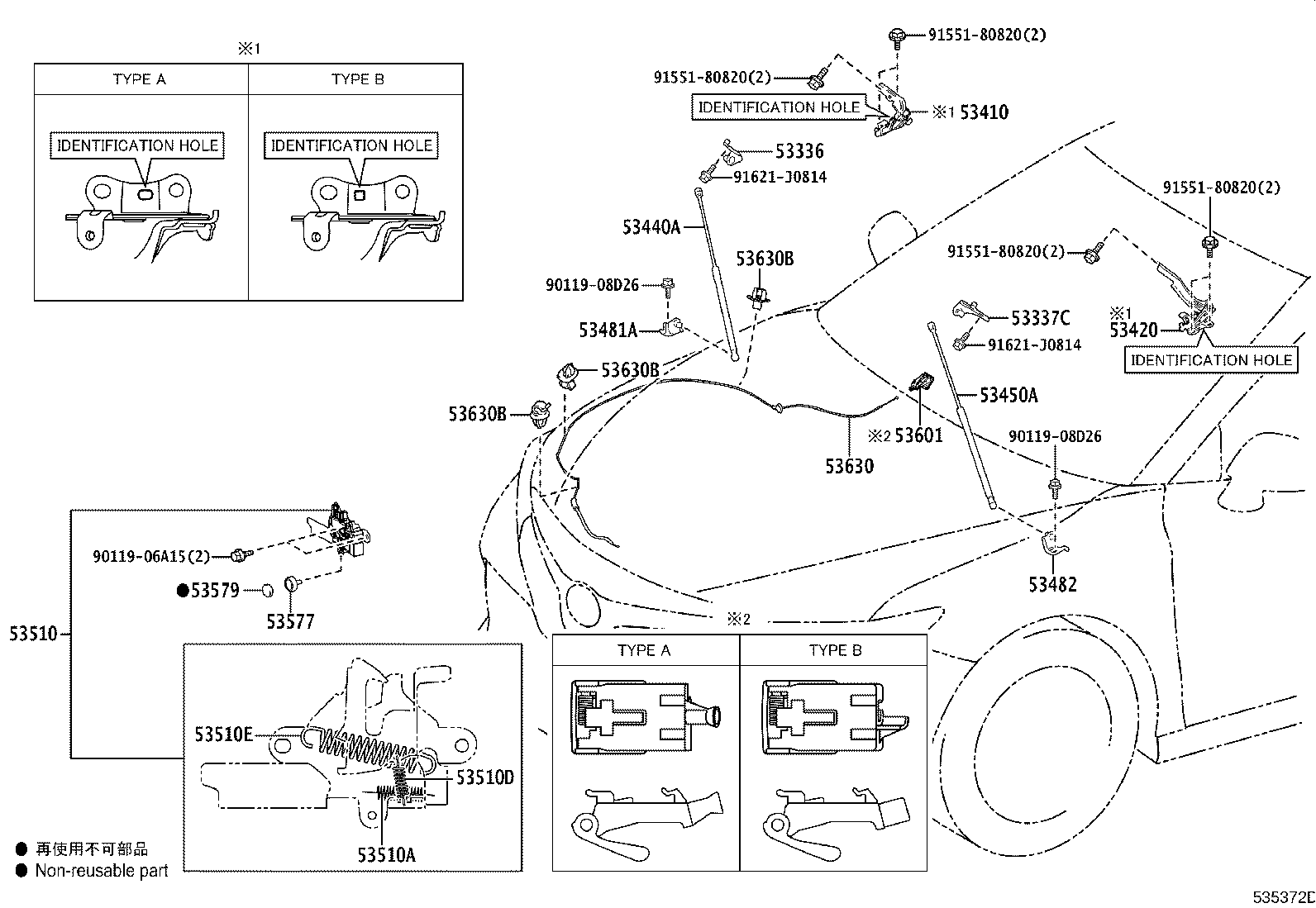

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53481A 53482 53510 53510A 53510D 53510E 53577 53579 53601 53630 53630B 53630B 53630B 9011906A15 9011908D26 9011908D26 9155180820 9155180820 9155180820 9155180820 91621J0814 91621J0814
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-33070

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53337C - BRACKET, HOOD STAY, LH
53337-33050

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-06200

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-06170

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53481A - BRACKET, HOOD SUPPORT, RH
53481-33070

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53482 - BRACKET, HOOD SUPPORT, LH
53482-33060

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53510 - LOCK ASSY, HOOD
53510-33430

ASV70,AXVH70,GSV70..ARL

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

WD=1.8,CW=13

 1
53577 - BOLT, HOOD LOCK
53577-33010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 3
Common parts
90119-06A15
90119-08D26
91551-80820
91621-J0814
