AXVH70R-AEXDBQ (2020)

Toyota Camry/Hybrid

Production Aug 2020 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

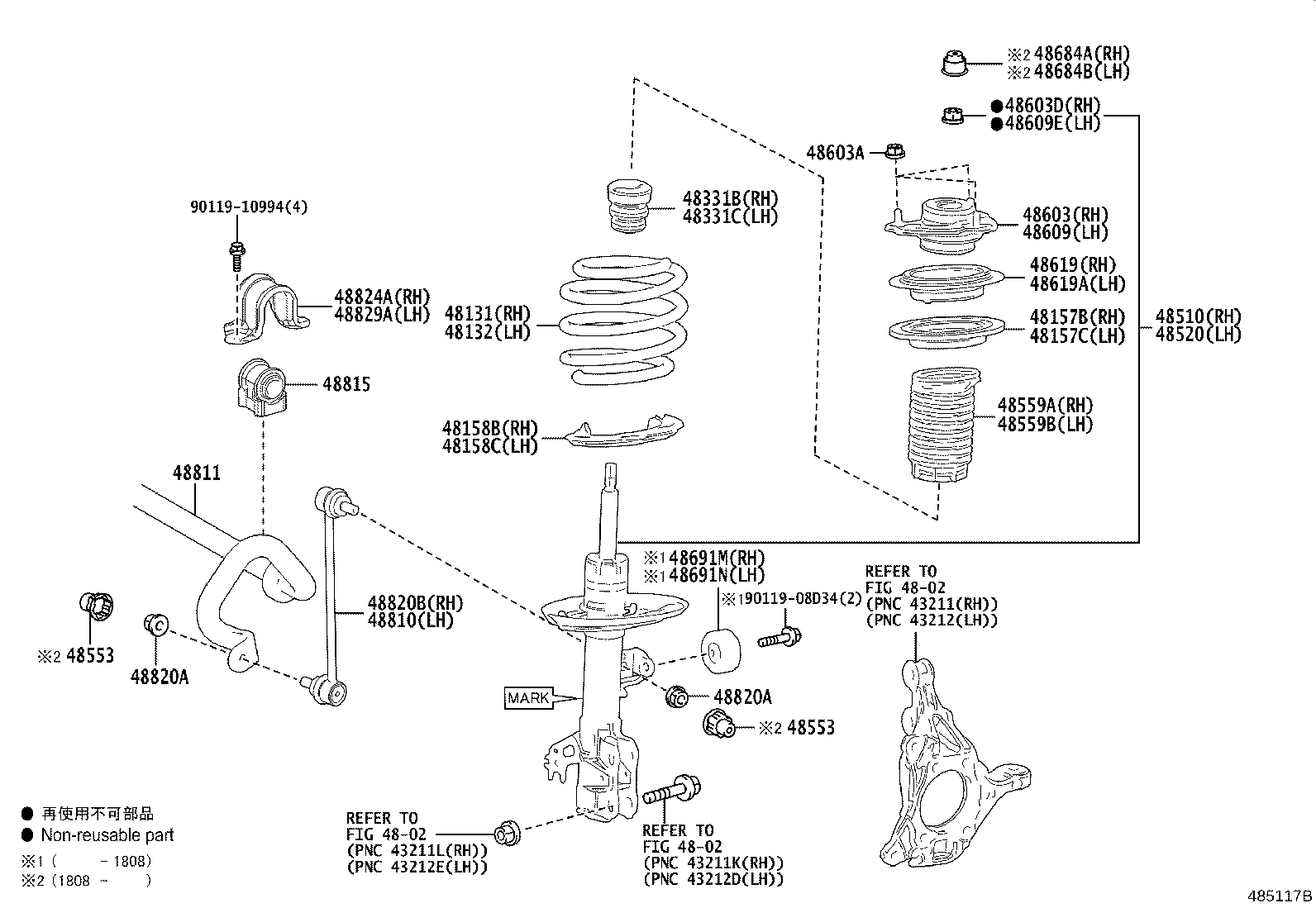

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48520 48553 48553 48559A 48559B 48603 48603A 48603D 48609 48609E 48619 48619A 48684A 48684B 48691M 48691N 48810 48811 48815 48820A 48820A 48820B 48824A 48829A 9011908D34 9011910994
Part # Description Qty Price
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-33090

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-33090

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-33110

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-33110

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559-33020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48559-33020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-33260

ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-10029

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14007

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-33260

ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14007

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48619 - BEARING, STRUT MOUNTING, RH
48619-33010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48619A - BEARING, STRUT MOUNTING, LH
48619-33010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-33090

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-33090

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-33040

AXVH71..D;ASV70,AXVH70,GSV70

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
Common parts
90119-08D34
90119-10994
Linked diagrams
4802
