AXVH70R-AEXDBQ (2020)

Toyota Camry/Hybrid

Production Aug 2020 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )ARL

Click highlighted areas on diagram

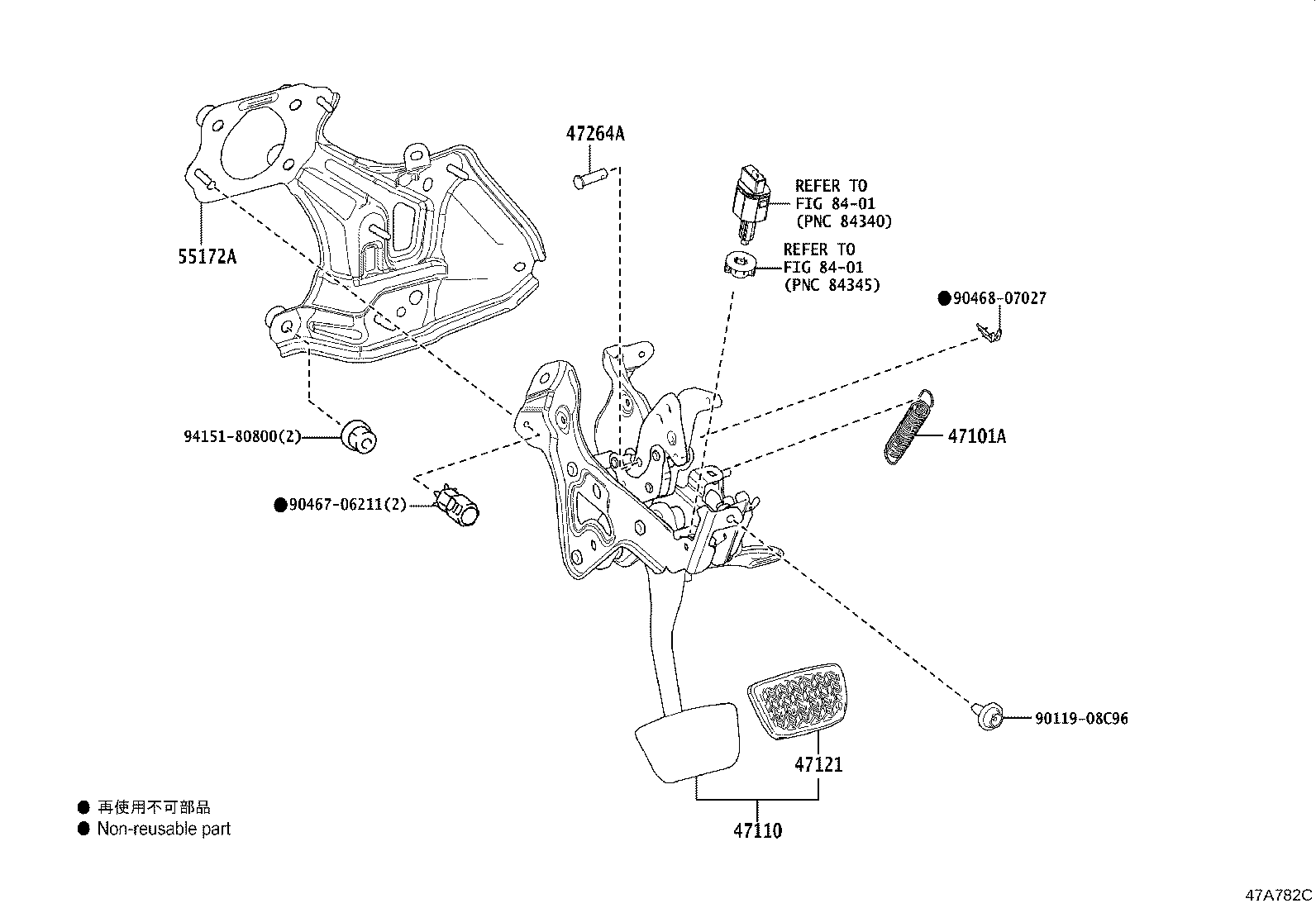

diagram 47101A 47110 47121 47264A 55172A 8401 8401 9011908C96 9046706211 9046807027 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47121 - PAD, BRAKE PEDAL
47121-48010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-33050

ASV70,AXVH70,GSV70..ARL

 1
Common parts
90119-08C96
90467-06211
90468-07027
94151-80800
Linked diagrams
8401
