AXVH70R-AEXDBQ (2020)
Toyota Camry/Hybrid
Production
Aug 2020
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )ARL

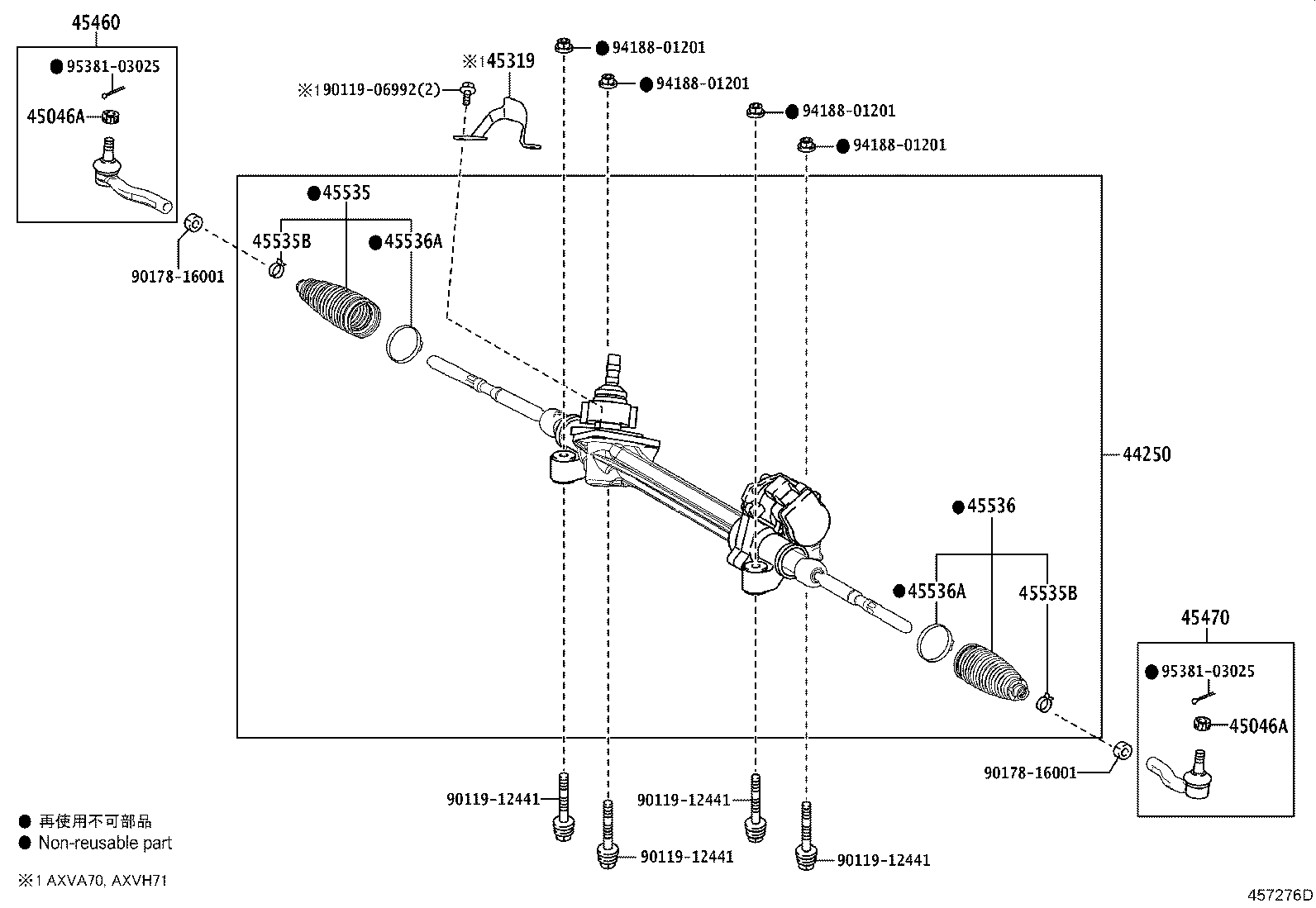

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-80008 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39365 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-29025 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-29025 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-06030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-06030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| Common parts | ||||
| 90119-06992 | ||||
| 90119-12441 | ||||
| 90178-16001 | ||||
| 94188-01201 | ||||
| 95381-03025 | ||||
