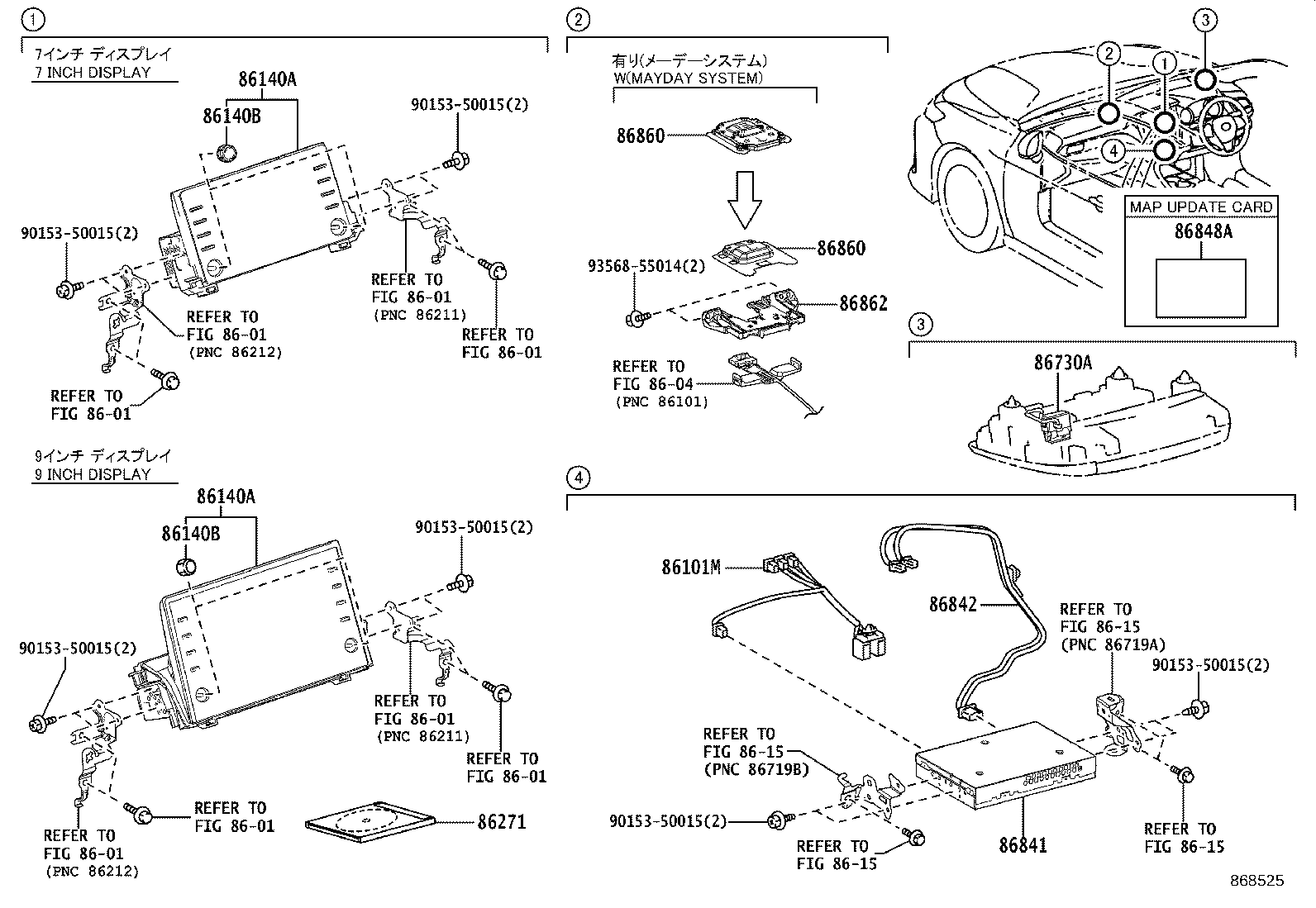

AXVA70R-AEZDBQ (2021)
Toyota Camry/Hybrid
(2102- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86101-33W70 |
AXVA70,AXVH70..D NEW ZEALAND SPEC&AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86101-33X00 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86101-33W70 |
AXVA70..GLE,SE CONVENIENT PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86101-33X10 |
AXVA70,AXVH70..D |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-33G30 |
AXVA70,GSV70..GLE,LIMD,SE DENSO TEN |
1 | ||
| 86140-33J40 |
AXVA70,AXVH70..D PIONEER,AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86140-33G50 |
AXVA70..GLE,SE PIONEER,CONVENIENT PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86140-33J30 |
AXVA70,AXVH70..D DENSO TEN |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-33G30 |
AXVA70,GSV70..GLE,LIMD,SE DENSO TEN |
1 | ||
| 86140-33J40 |
AXVA70,AXVH70..D PIONEER,AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86140-33G50 |
AXVA70..GLE,SE PIONEER,CONVENIENT PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86140-33J30 |
AXVA70,AXVH70..D DENSO TEN |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-22129 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
2 | ||
| 90010-23060 |
AXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#..D..(ARL,TAKR) |
2 | ||
| 90010-22129 |
AXVA70..GLE,SE CONVENIENT PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-22129 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
2 | ||
| 90010-23060 |
AXVA70,GSV70..GLE,LIMD,SE;AXVA70,AXVH7#..D..(ARL,TAKR) |
2 | ||
| 90010-22129 |
AXVA70..GLE,SE CONVENIENT PACKAGE&AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
2 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86807-11043 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86807-11034 |
AXVA70..GLE,SE;AXVH71,GSV70..GCC AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 86730-53030 |
AXVA70,AXVH70..ARL |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-K0051 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86840-47101 |
AXVA70..GLE,SE;AXVH71,GSV70..GCC AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-33180 |
AXVA70,AXVH70..D NEW ZEALAND SPEC&AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86842-33120 |
AXVH71,GSV70;AXVA70..GLE,SE AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86848A - CARD, SERIAL NUMBER MAP UPDATE | ||||
| 86848-33060 |
AXVA70..GLE,SE;AXVH71,GSV70..GCC AUDIO-9INCH & *DA & 9SPEAKAR & JBL |
1 | ||
| 86848-33040 |
AXVA70,AXVH70..D AUDIO-9INCH & *DA & 6SPEAKAR |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-52020 |
AXVA70,AXVH70..ARL |
1 | ||
| 86860-78010 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 86860-78010 |
AXVA70,AXVH70..ARL NEW ZEALAND SPEC |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-52020 |
AXVA70,AXVH70..ARL |
1 | ||
| 86860-78010 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 86860-78010 |
AXVA70,AXVH70..ARL NEW ZEALAND SPEC |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-42010 |
AXVA70,AXVH7#..ARL,TAKR;AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8604 | ||||
| 8615 | ||||
