AXVA70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)

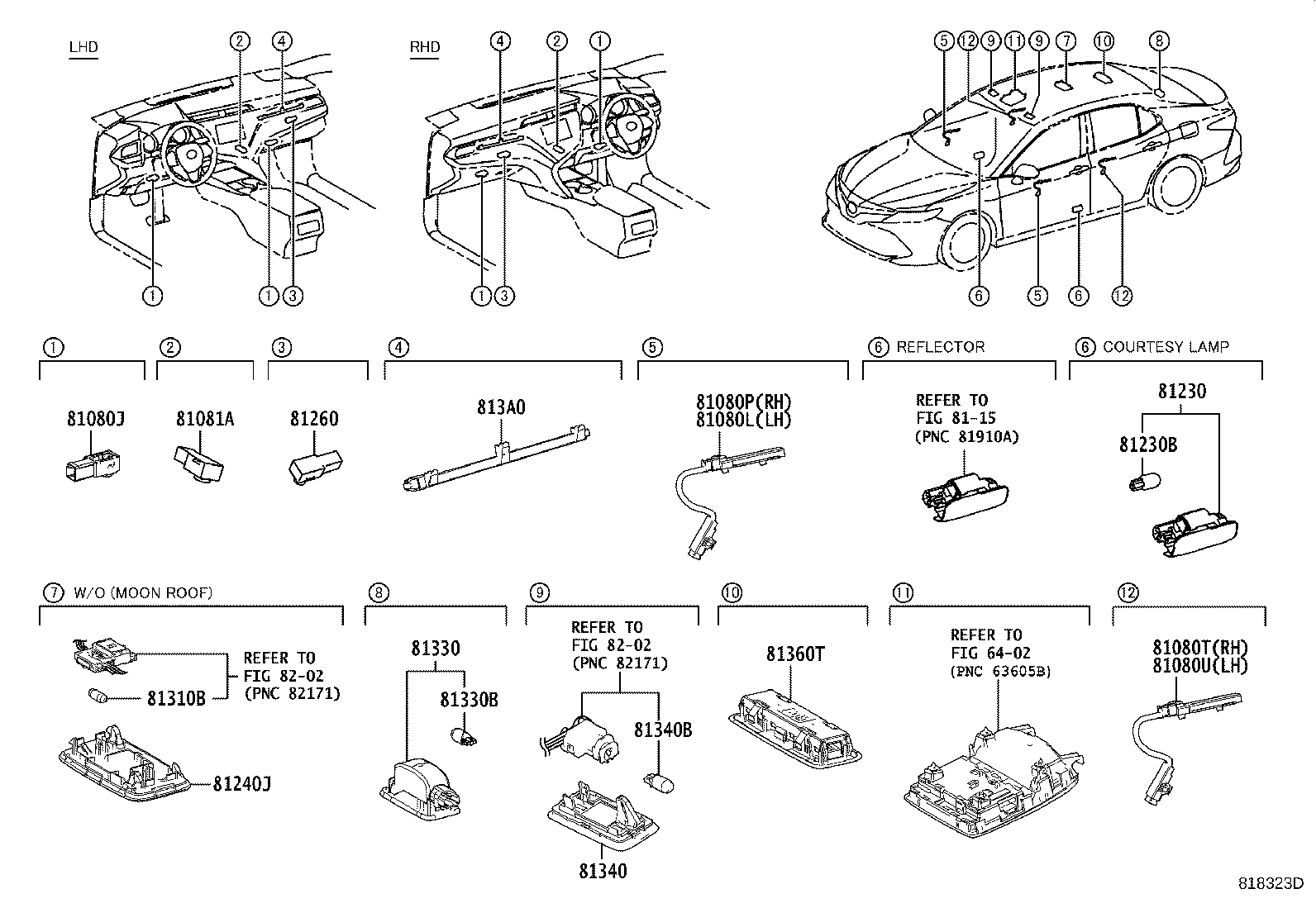

Click highlighted areas on diagram

diagram 6402 81080J 81080L 81080P 81080T 81080U 81081A 8115 81230 81230B 81240J 81260 81310B 81330 81330B 81340 81340B 81360T 813A0 8202 8202
Part # Description Qty Price
81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81080-33300

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
81230 - LAMP ASSY, COURTESY
81230-30200

GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE;ASV70,AXVH71..TAIW,TAKR

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE;ASV70,AXVH71..TAIW,TAKR

12V 5W

 2
81260 - LAMP ASSY, GLOVE BOX
81080-33290

GSV70;ASV70..N,V;ASV70,AXVA70,AXVH71..LHD

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-30110

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-33070B0

GSV70..LIMD;ASV70,AXVA70..GLE,SE

GRAY,TRIM1#,2#

 1
Linked diagrams
6402
8115
8202
