ASV70R-AETVKQ (2017)
Toyota Camry/Hybrid

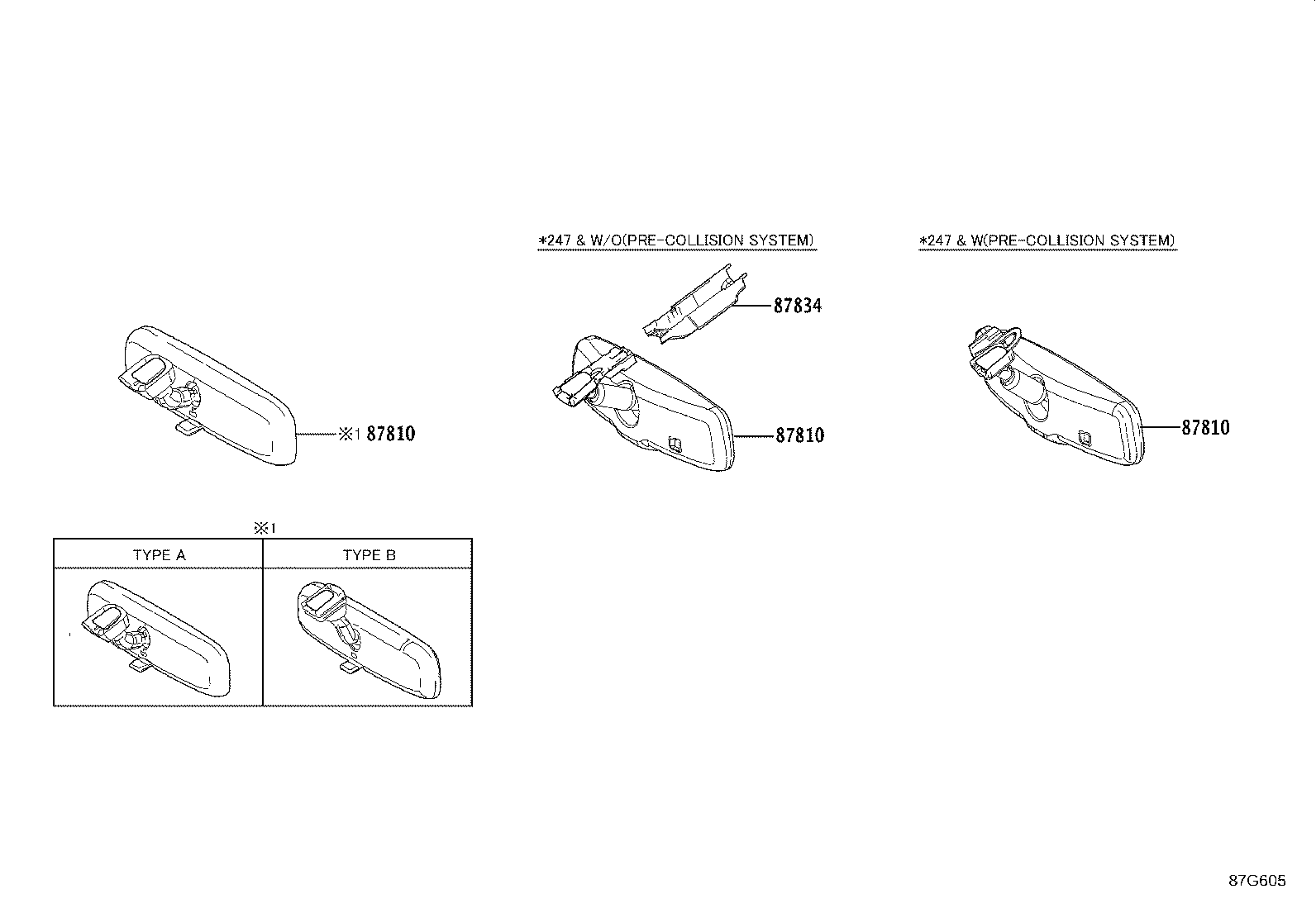

ILLUST NO. 1 OF 2(1709-2102) ; (2102- )
INNER REAR VIEW MIRROR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-53200 |
GSV70..V;ASV70,AXVH71..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87810-0WW40 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87810-53210 |
GSV70..V;ASV70,AXVH70..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-53200 |
GSV70..V;ASV70,AXVH71..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87810-0WW40 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87810-53210 |
GSV70..V;ASV70,AXVH70..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-53200 |
GSV70..V;ASV70,AXVH71..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87810-0WW40 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87810-53210 |
GSV70..V;ASV70,AXVH70..ARL TYPE B:REFER ILLUST. |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-76010 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||

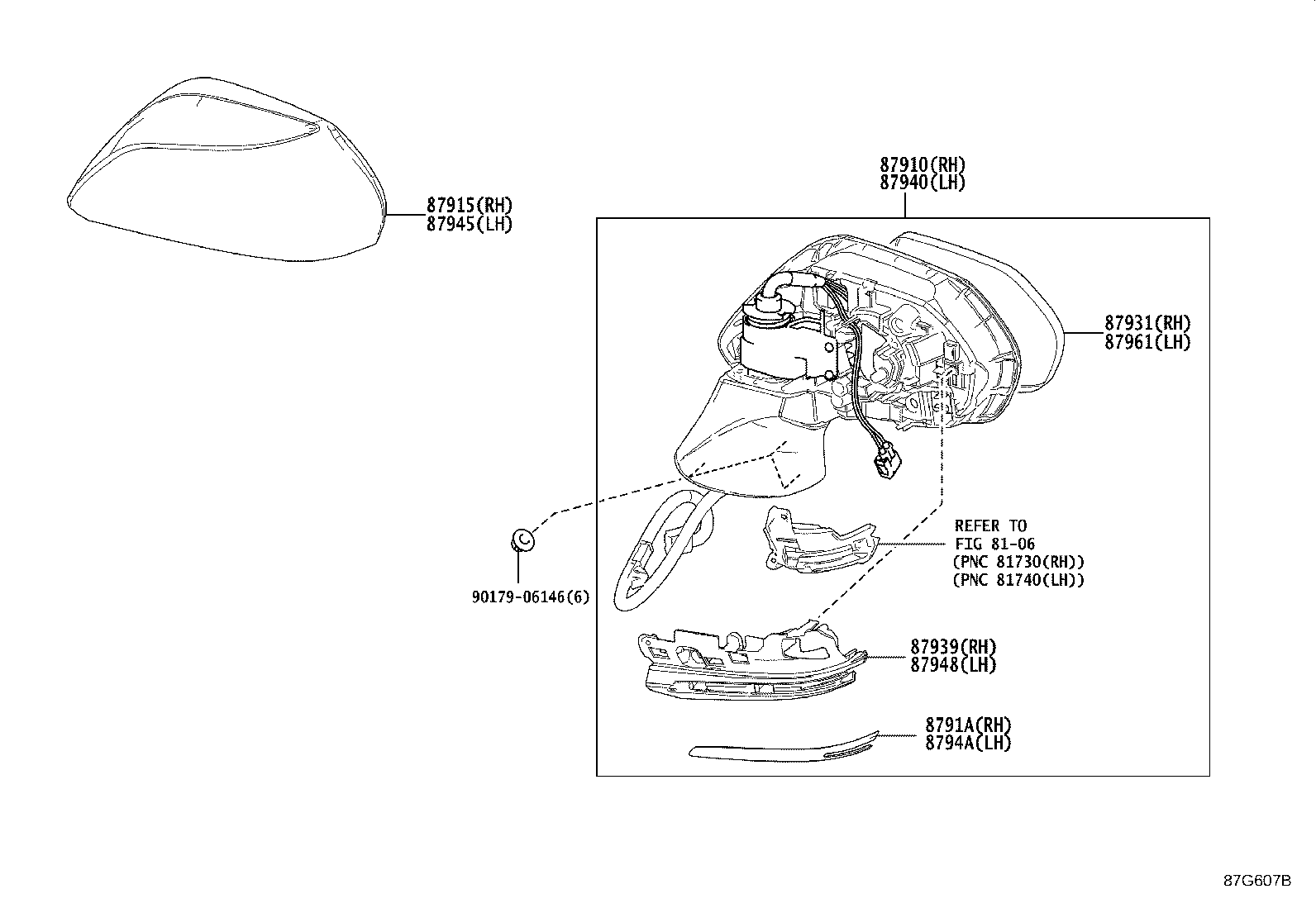

ILLUST NO. 2 OF 2(1709-2102)ARL ; (1712-2102)LE ; (1712-2102)AXVH71..GCC ; (2102- )LE ; (2102-
OUTER REAR VIEW MIRROR,*551
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE PLATED |
1 | ||
| 87910-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87915-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87915-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87915-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87915-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87915-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87915-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87915-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87915-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-33120 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87940-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87945-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87945-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87945-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87945-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87945-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87945-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 87945-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87945-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-33100 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| Linked diagrams | ||||
| 8106 | ||||

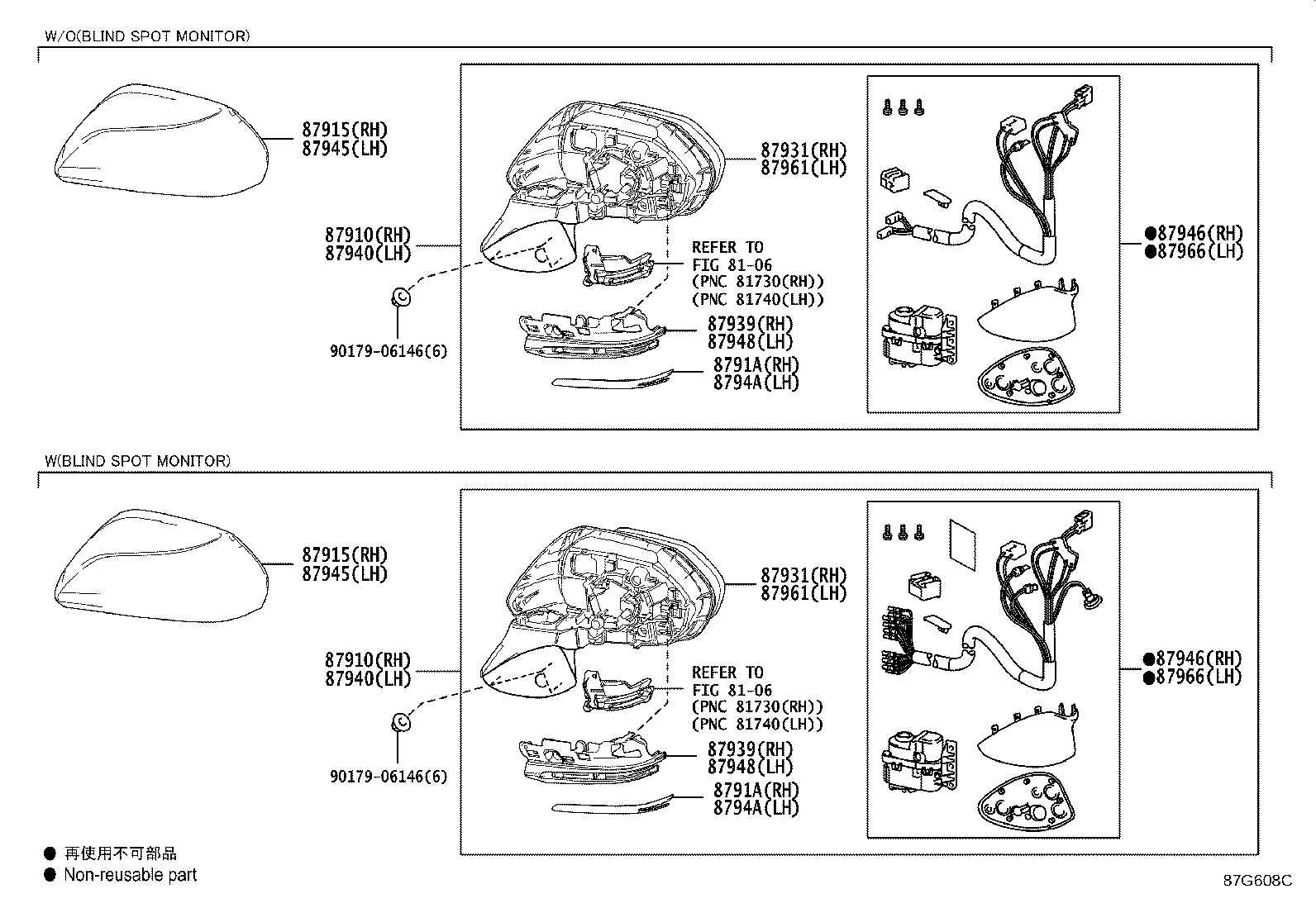

ILLUST NO. 2 OF 2(1712-2102)TAIW ; (1712-2102)AXVH71,GSV70..LHD ;(1712-2102)ASV70,AXVA70..GLE,SE
OUTER REAR VIEW MIRROR,*57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE PLATED |
1 | ||
| 87910-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE PLATED |
1 | ||
| 87910-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87915-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87915-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87915-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87915-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87915-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87915-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87915-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87915-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87915-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87915-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87915-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87915-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87915-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87915-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87915-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87915-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-33120 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87902-33120 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87940-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-33C40 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87940-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87945-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87945-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87945-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87945-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87945-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87945-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 87945-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87945-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-33030D0 |
ASV70,AXVA70,AXVH71,GSV70 EMOTIONAL RED,3T7 |
1 | ||
| 87945-33030A1 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87945-33030E1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 STEEL BLONDE ME.,4X1 |
1 | ||
| 87945-33030J0 |
AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC DK.BLUE M.M.,8W7 |
1 | ||
| 87945-33030C0 |
GSV70..LIMD;AXVH71,GSV70..D,N,V;ASV70,AXVA70,AXVH70 ATTITUDE BLACK MC.,218 |
1 | ||
| 87945-33030E2 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 GRAPHITE ME.,4X7 |
1 | ||
| 87945-33030A0 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#,GSV70..D,N,V SUPER WHITE 2,040 |
1 | ||
| 87945-33030D1 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 EMOTIONAL RED 2,3U5 |
1 | ||
| 87945-33030B0 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 SILVER ME.,1F7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-33100 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87907-33100 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-33C70 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| Linked diagrams | ||||
| 8106 | ||||
