ASV70L-AETNKV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2102)ASV70..LHD

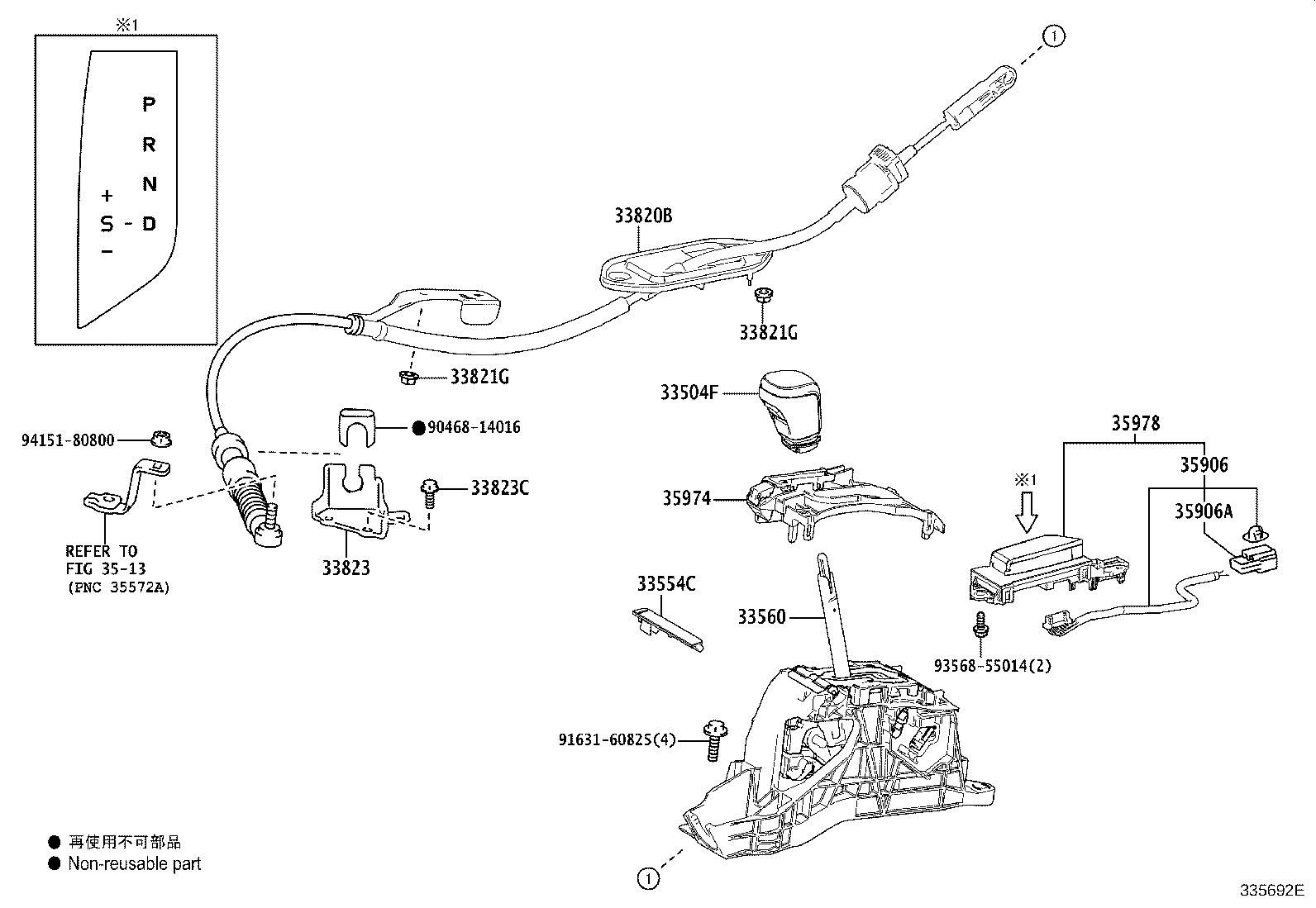

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33821G 33821G 33823 33823C 3513 35906 35906A 35974 35978 9046814016 9163160825 9356855014 9415180800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-33180C0

ASV70,GSV70..N

BLACK,TRIM2#,4#

 1
33504-33180C0

ASV70,GSV70..V

BLACK,TRIM2#,3#

 1
33504-33180C0

ASV70,AXVA70,GSV70..GLE,LIMD

BLACK,TRIM1#,2#,4#

 1
33504-33170C0

AXVH71..GCC;ASV70,AXVA70..LE

BLACK,TRIM1#,2#,4#

 1
33504-12770C0

ASV70..N

BLACK,TRIM2#

 1
33504-33180C0

ASV70,AXVA70..SE

BLACK,TRIM1#,2#

 1
33504-12770C0

ASV70,AXVA70..SE

BLACK,TRIM1#

 1
33504-12770C0

ASV70,AXVA70,GSV70..GLE,LIMD

BLACK,TRIM1#,2#,4#

 1
33504-12770C0

ASV70,GSV70..V

BLACK,TRIM2#,3#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-33130

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-33400

ASV70..N,V;AXVH70,GSV70..ARL

 1
33560-33370

ASV70..TAIW;ASV70,AXVA70..LE

 1
33560-33380

AXVH71,GSV70..LHD;ASV70,AXVA70..GLE,SE

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-33490

ASV70..LHD

 1
33820-33440

ASV70..GCC

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 4
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 4
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33110

ASV70

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0016

ASV70..LHD

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-33180

ASV70,AXVA70,GSV70..LHD

 1
35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
90980-12367

ASV70,AXVA70,GSV70

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-33240

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
35978 - INDICATOR, SHIFT POSITION
35978-33180

ASV70,AXVA70,GSV70..LHD

 1
Common parts
90468-14016
91631-60825
93568-55014
94151-80800
Linked diagrams
3513
