ASV70L-AETDKV (2017)
Toyota Camry/Hybrid
(1712-2007)AXVH71..ARL ; (1712-2102)GLE,LIMD,SE; (1712-2102)AXVH7#..D..ARL,GCC ; (
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-33340B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63306-33350B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33810E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63310-33810B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63310-33810B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 63310-33860B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63310-33850B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05168B0 |
AXVH71..GCC;ASV70,AXVA70,GSV70..GLE,LE,LIMD GRAY,TRIM1#,2# |
2 | ||
| 90467-05168B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
2 | ||
| 90467-05168B0 |
ASV70,AXVA70..SE GRAY,TRIM1# |
2 | ||
| 90467-05168E0 |
GSV70..N;ASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 90467-10181 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 90467-09126 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-33070B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63605-33240B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63605-33180B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63605-33240E0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33200B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63605-33240B0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,GRAY,TRIM1#,2# |
1 | ||
| 63605-33230E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33230B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 81399G - COVER, LENS | ||||
| 81399-33030 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..(D,N,V)..(ARL,GCC) |
1 | ||
| 81399-33040 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 81399-33060 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 8603 | ||||
(1709-2102)ASV70..N,V ; (1709-2102)AXVH71,GSV70..D,N,V..ARL,TAKR ; (2102- )LIMD
W(PANORAMA ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-33340B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63306-33350B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33810E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63310-33810B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63310-33810B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 63310-33860B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63310-33850B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05168B0 |
AXVH71..GCC;ASV70,AXVA70,GSV70..GLE,LE,LIMD GRAY,TRIM1#,2# |
2 | ||
| 90467-05168B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
2 | ||
| 90467-05168B0 |
ASV70,AXVA70..SE GRAY,TRIM1# |
2 | ||
| 90467-05168E0 |
GSV70..N;ASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 90467-10181 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 90467-09126 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63605-33240B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63605-33180B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63605-33240E0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33200B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63605-33240B0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,GRAY,TRIM1#,2# |
1 | ||
| 63605-33230E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33230B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 81399G - COVER, LENS | ||||
| 81399-33030 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..(D,N,V)..(ARL,GCC) |
1 | ||
| 81399-33040 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 81399-33060 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 8603 | ||||

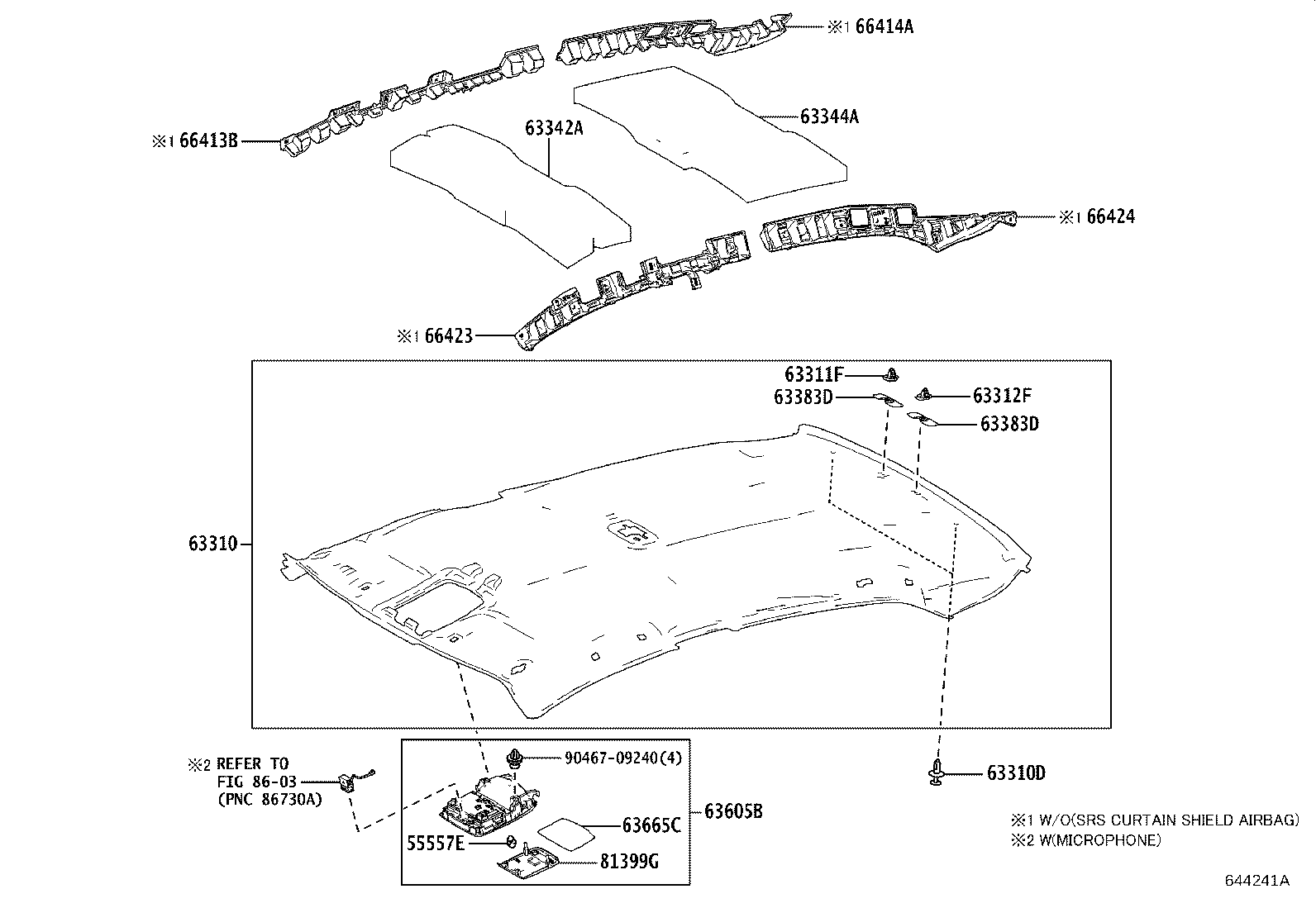

(1709-2102)D,N,V ; (1709-2102)GLE,LE ; (1712-2007)AXVH71..ARL ; (2102- )D,V ; (2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55557E - CUSHION, ROOF CONSOLE BOX | ||||
| 55557-47050 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..D,N,V |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-33810E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63310-33810B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63310-33810B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 63310-33860B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63310-33850B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05168B0 |
AXVH71..GCC;ASV70,AXVA70,GSV70..GLE,LE,LIMD GRAY,TRIM1#,2# |
2 | ||
| 90467-05168B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
2 | ||
| 90467-05168B0 |
ASV70,AXVA70..SE GRAY,TRIM1# |
2 | ||
| 90467-05168E0 |
GSV70..N;ASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 90467-10181 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 90467-09126 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 63342A - SILENCER, ROOF, NO.2 | ||||
| 63342-33070 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..D,N,V |
1 | ||
| 63344A - SILENCER, ROOF, NO.4 | ||||
| 63344-33060 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..D,N,V |
1 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-24030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 63605B - BOX SUB-ASSY, ROOF CONSOLE | ||||
| 63605-33240B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 63605-33180B0 |
GSV70..LIMD;ASV70,AXVA70..GLE,SE GRAY,TRIM1#,2# |
1 | ||
| 63605-33240E0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33200B0 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM2#,3# |
1 | ||
| 63605-33240B0 |
AXVH71..GCC;ASV70,AXVA70..LE AUDIO-7INCH DISPLAY & DVD & 6SPEAKER,GRAY,TRIM1#,2# |
1 | ||
| 63605-33230E0 |
AXVH71..GCC;ASV70,AXVA70..LE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63605-33230B0 |
AXVH71..GCC;ASV70,AXVA70..LE GRAY,TRIM1#,2# |
1 | ||
| 63665C - MAT, ROOF CONSOLE BOX | ||||
| 63665-33020 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..D,N,V |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-33020 |
AXVH71..GCC;ASV70,AXVA70..LE |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-33070 |
AXVH71..GCC;ASV70,AXVA70..LE |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-33020 |
AXVH71..GCC;ASV70,AXVA70..LE |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-33070 |
AXVH71..GCC;ASV70,AXVA70..LE |
1 | ||
| 81399G - COVER, LENS | ||||
| 81399-33030 |
GSV70..V;ASV70,AXVA70..LE;ASV70,AXVH7#..(D,N,V)..(ARL,GCC) |
1 | ||
| 81399-33040 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 81399-33060 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 8603 | ||||
