GSV40R-JETDKQ (2009)
Toyota Camry/Aurion/Hv(Arl)

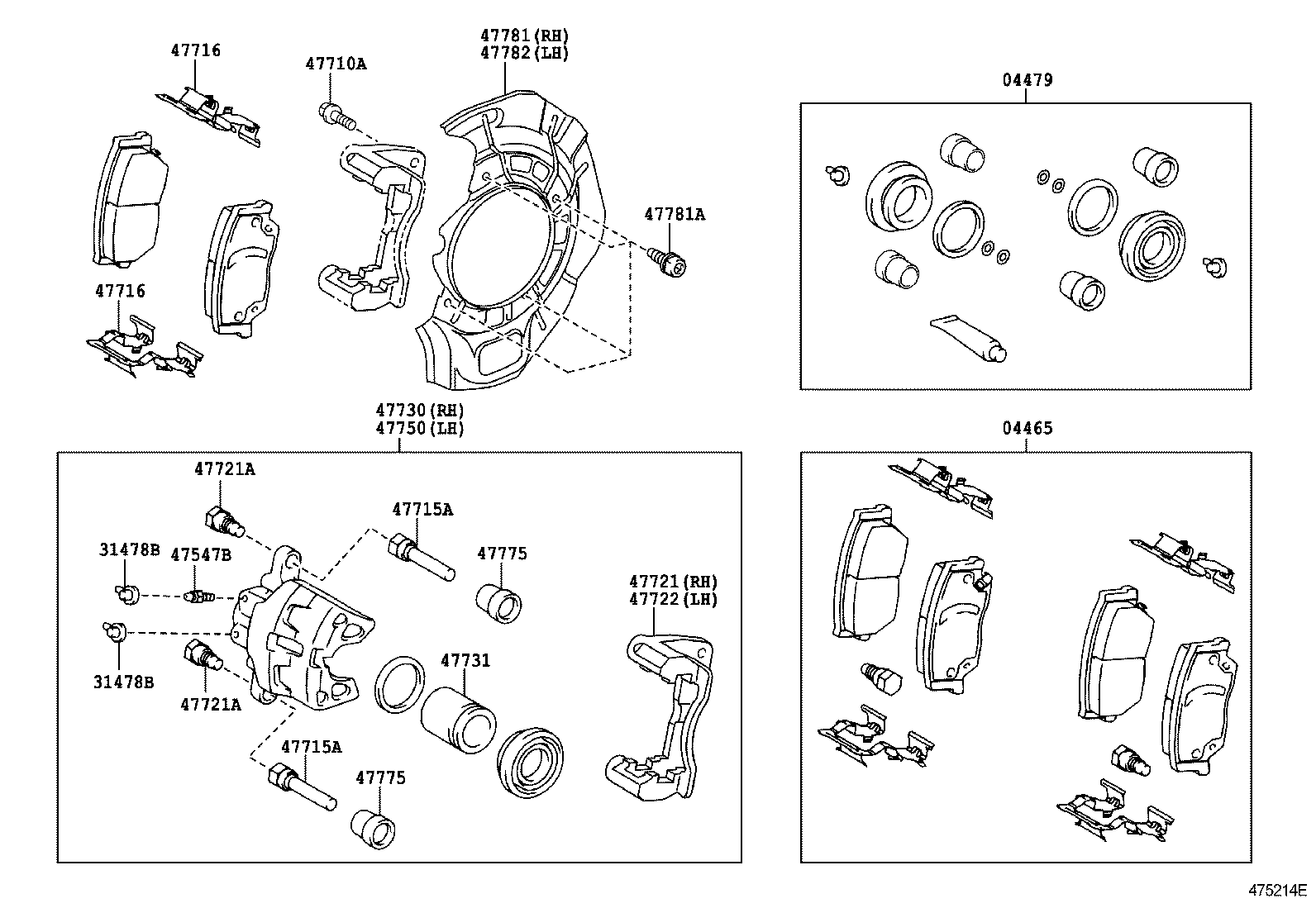

(0606-1107)ACV40,GSV40..ARL ; (0906-1107)ACV40..GCC ; (0908-1107)GSV40..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-06110 |
ACV40,GSV40 MARK NBK PN562H,(L) |
1 | ||
| 04465-06090 |
GSV40..ARL MARK B746-1191 |
1 | ||
| 04465-33450 |
ACV40,GSV40 MARK NBK PN562H,(J) |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-06252 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 04478-06200 |
GSV40..ARL |
1 | ||
| 04478-33130 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 04478-06251 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 04478-06200 |
ACV40,GSV40 PBR |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0D040 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 31478-30010 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47548-06010 |
GSV40..ARL |
4 | ||
| 47548-06010 |
ACV40,GSV40 PBR |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0D040 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 31478-30010 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47548-06010 |
GSV40..ARL |
4 | ||
| 47548-06010 |
ACV40,GSV40 PBR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47547-0D030 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 47547-06020 |
GSV40..ARL |
2 | ||
| 47547-20010 |
ACV40,GSV40 ADVICS |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACV40,GSV40 *12-1.25PX29.5-23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52190 |
ACV40,GSV40 ADVICS |
2 | ||
| 47715-06120 |
GSV40..ARL |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52190 |
ACV40,GSV40 ADVICS |
2 | ||
| 47715-06120 |
GSV40..ARL |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47718-33340 |
ACV40,GSV40 ADVICS |
2 | ||
| 47716-06100 |
GSV40..ARL |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47718-33340 |
ACV40,GSV40 ADVICS |
2 | ||
| 47716-06100 |
GSV40..ARL |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47721-8Y001 |
GSV40..ARL |
1 | ||
| 47721-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15,(J) |
4 | ||
| 90016-AA603 |
ACV40,GSV40 *8-1.00PX23-15,(L) |
4 | ||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15,(J) |
4 | ||
| 90016-AA603 |
ACV40,GSV40 *8-1.00PX23-15,(L) |
4 | ||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-8Y001 |
GSV40..ARL |
1 | ||
| 47722-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47722-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-06230 |
GSV40..ARL |
1 | ||
| 47730-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47730-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-06260 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 47731-8Y001 |
GSV40..ARL |
2 | ||
| 47731-33340 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-06230 |
GSV40..ARL |
1 | ||
| 47750-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47750-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-06050 |
GSV40..ARL |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-06050 |
GSV40..ARL |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-06080 |
ACV40,GSV40 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
ACV40,GSV40 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-06080 |
ACV40,GSV40 |
1 | ||

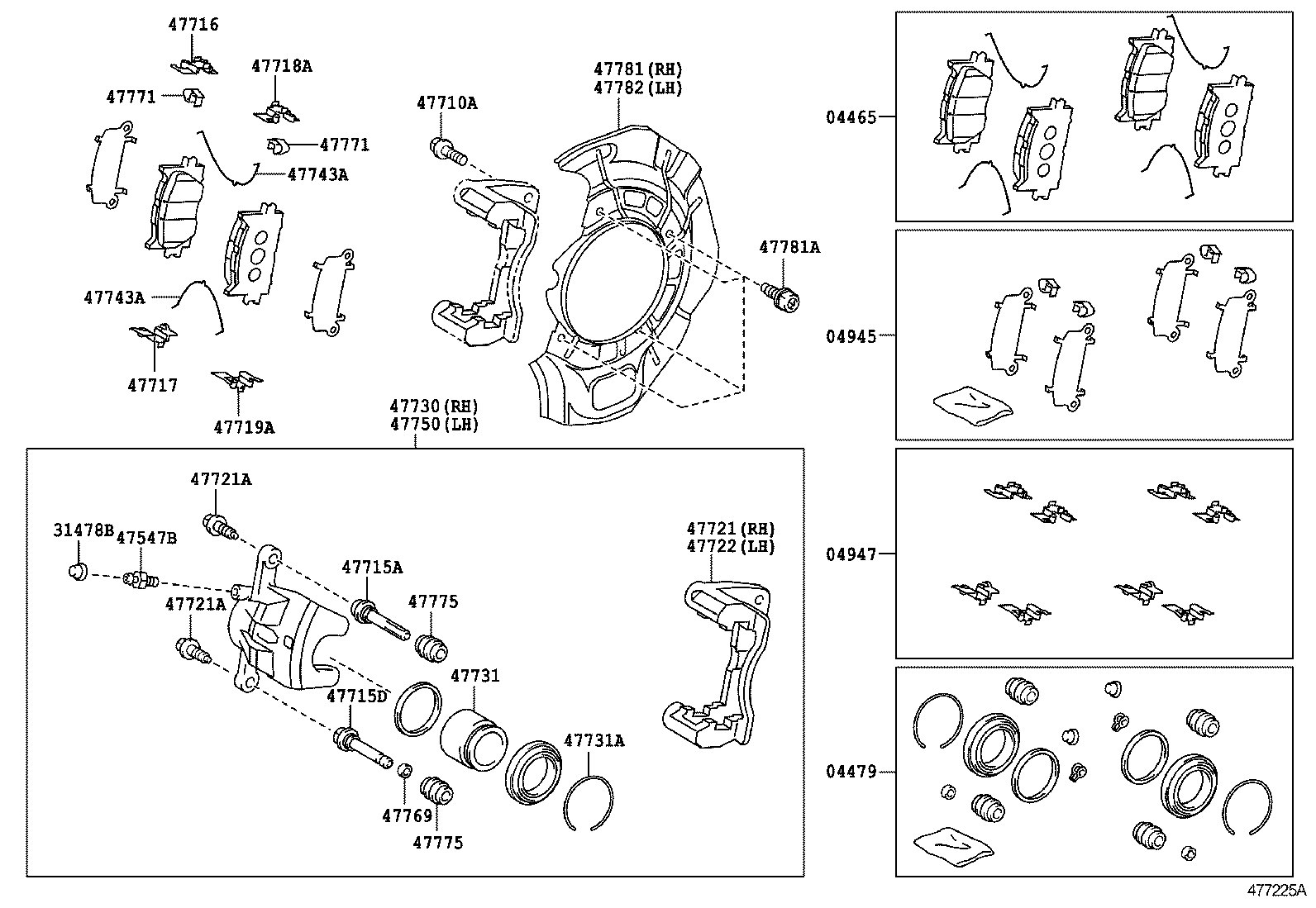

(1001- )AHV40 ; (1107- )ACV40,GSV40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-06110 |
ACV40,GSV40 MARK NBK PN562H,(L) |
1 | ||
| 04465-06090 |
GSV40..ARL MARK B746-1191 |
1 | ||
| 04465-33450 |
ACV40,GSV40 MARK NBK PN562H,(J) |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-06252 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 04478-06200 |
GSV40..ARL |
1 | ||
| 04478-33130 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 04478-06251 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 04478-06200 |
ACV40,GSV40 PBR |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-06110 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 04945-33260 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33240 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 04947-06070 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0D040 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 31478-30010 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47548-06010 |
GSV40..ARL |
4 | ||
| 47548-06010 |
ACV40,GSV40 PBR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47547-0D030 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 47547-06020 |
GSV40..ARL |
2 | ||
| 47547-20010 |
ACV40,GSV40 ADVICS |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACV40,GSV40 *12-1.25PX29.5-23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52190 |
ACV40,GSV40 ADVICS |
2 | ||
| 47715-06120 |
GSV40..ARL |
4 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-33340 |
ACV40,GSV40 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47718-33340 |
ACV40,GSV40 ADVICS |
2 | ||
| 47716-06100 |
GSV40..ARL |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47719-33340 |
ACV40,GSV40 |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47718-33340 |
ACV40,GSV40 |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47719-33340 |
ACV40,GSV40 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47721-8Y001 |
GSV40..ARL |
1 | ||
| 47721-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15,(J) |
4 | ||
| 90016-AA603 |
ACV40,GSV40 *8-1.00PX23-15,(L) |
4 | ||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15,(J) |
4 | ||
| 90016-AA603 |
ACV40,GSV40 *8-1.00PX23-15,(L) |
4 | ||
| 90105-08164 |
ACV40,GSV40 *8-1.00PX23-15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-8Y001 |
GSV40..ARL |
1 | ||
| 47722-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47722-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-06230 |
GSV40..ARL |
1 | ||
| 47730-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47730-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-06260 |
ACV40,GSV40 (L),ADVICS |
2 | ||
| 47731-8Y001 |
GSV40..ARL |
2 | ||
| 47731-33340 |
ACV40,GSV40 (J),ADVICS |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76002 |
ACV40,GSV40 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-06230 |
GSV40..ARL |
1 | ||
| 47750-06260 |
ACV40,GSV40 (L),ADVICS |
1 | ||
| 47750-33340 |
ACV40,GSV40 (J),ADVICS |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
ACV40,GSV40 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-53060 |
ACV40,GSV40 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-53060 |
ACV40,GSV40 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-06050 |
GSV40..ARL |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-06050 |
GSV40..ARL |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-06080 |
ACV40,GSV40 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
ACV40,GSV40 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-06080 |
ACV40,GSV40 |
1 | ||
