GSV40R-JETDKQ (2006)
Toyota Camry/Aurion/Hv(Arl)
Production
Oct 2006
-
Aug 2009
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )GSV40

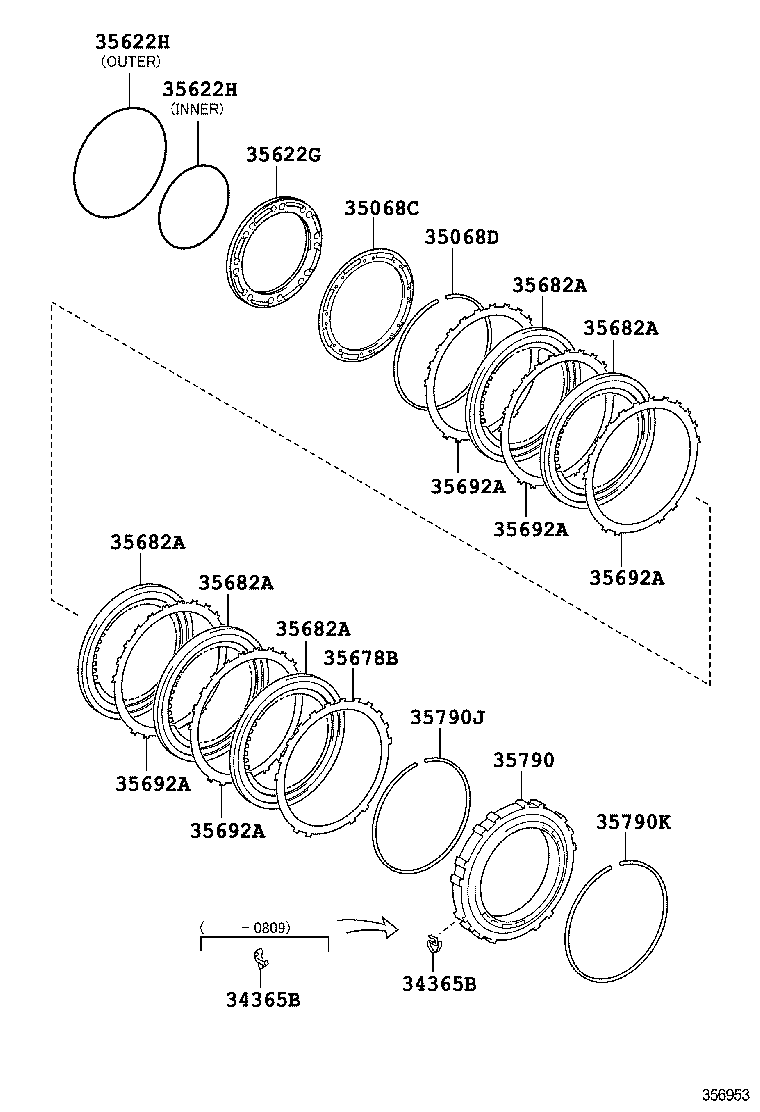

Click highlighted areas on diagram
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34365B - RETAINER, OUTER RACE | ||||
| 34365-33021 |
GSV40 |
1 | ||
| 34365-33010 |
GSV40 |
1 | ||
| 34365B - RETAINER, OUTER RACE | ||||
| 34365-33021 |
GSV40 |
1 | ||
| 34365-33010 |
GSV40 |
1 | ||
| 35068C - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-33030 |
GSV40 |
1 | ||
| 35068D - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-99109 |
GSV40 |
1 | ||
| 35622G - PISTON, BRAKE, NO.2 | ||||
| 35622-33010 |
GSV40 |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99157 |
GSV40 OUTER |
1 | ||
| 90301-99156 |
GSV40 INNER |
1 | ||
| 35622H - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99157 |
GSV40 OUTER |
1 | ||
| 90301-99156 |
GSV40 INNER |
1 | ||
| 35678B - FLANGE, BRAKE, NO.2 | ||||
| 35678-33030 |
GSV40 T=4.2,MARK 42 |
1 | ||
| 35678-33040 |
GSV40 T=4.3,MARK 43 |
1 | ||
| 35678-73050 |
GSV40 T=4.4,MARK 44 |
1 | ||
| 35678-33010 |
GSV40 T=4.0,MARK 40 |
1 | ||
| 35678-73030 |
GSV40 T=4.2,MARK 42 |
1 | ||
| 35678-33050 |
GSV40 T=4.4,MARK 44 |
1 | ||
| 35678-33020 |
GSV40 T=4.1,MARK 41 |
1 | ||
| 35678-73040 |
GSV40 T=4.3,MARK 43 |
1 | ||
| 35678-73020 |
GSV40 T=4.1,MARK 41 |
1 | ||
| 35678-73010 |
GSV40 T=4.0,MARK 40 |
1 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33010 |
GSV40 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33010 |
GSV40 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33010 |
GSV40 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33010 |
GSV40 |
5 | ||
| 35682A - DISC, BRAKE, NO.2 | ||||
| 35682-33010 |
GSV40 |
5 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-33010 |
GSV40 |
5 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-33010 |
GSV40 |
5 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-33010 |
GSV40 |
5 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-33010 |
GSV40 |
5 | ||
| 35692A - PLATE, BRAKE, NO.2 | ||||
| 35692-33010 |
GSV40 |
5 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35791-73011 |
GSV40 |
1 | ||
| 35791-33020 |
GSV40 |
1 | ||
| 35790J - RING, SNAP NO.1 (FOR 1 WAY CLUTCH) | ||||
| 90520-99105 |
GSV40 |
1 | ||
| 35790K - RING, SNAP NO.2 (FOR 1 WAY CLUTCH) | ||||
| 90520-99106 |
GSV40 |
1 | ||
