GSV40L-JETGKV (2009)
Toyota Camry/Aurion/Hv(Arl)
Production
Aug 2009
-
Oct 2011
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

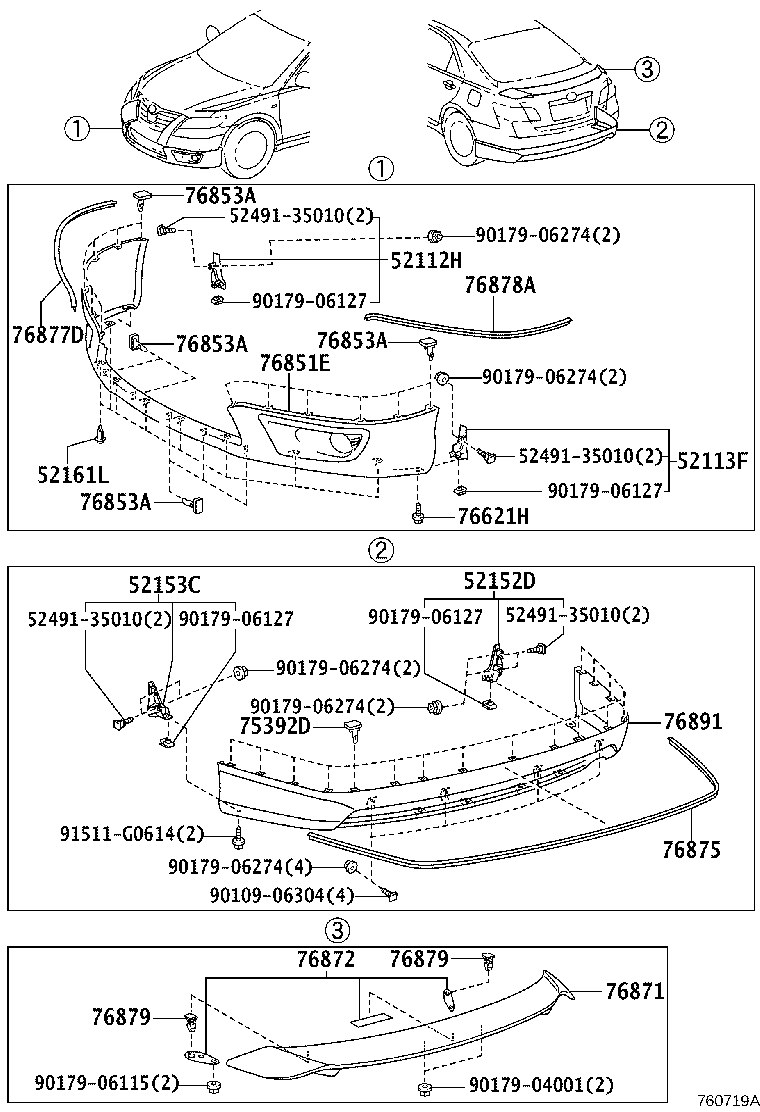

ILLUST NO. 1 OF 2(0908- )GSV40..ATX,GD,PRD,SPVS,SPVZ,TOU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76871 - SPOILER, REAR | ||||
| 76871-06907 |
GSV40..ATX,GD,TOU PAINT REQ.,REAR SPOILER-WITH(WING TYPE) |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-09010 |
GSV40..ATX,GD,TOU REAR SPOILER-WITH(WING TYPE) |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-12040 |
GSV40..ATX,GD,TOU REAR SPOILER-WITH(WING TYPE) |
2 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-12040 |
GSV40..ATX,GD,TOU REAR SPOILER-WITH(WING TYPE) |
2 | ||
| Common parts | ||||
| 52491-35010 | ||||
| 90109-06304 | ||||
| 90179-04001 | ||||
| 90179-06115 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 91511-G0614 | ||||
