GSV40L-JETGKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2006 - Aug 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

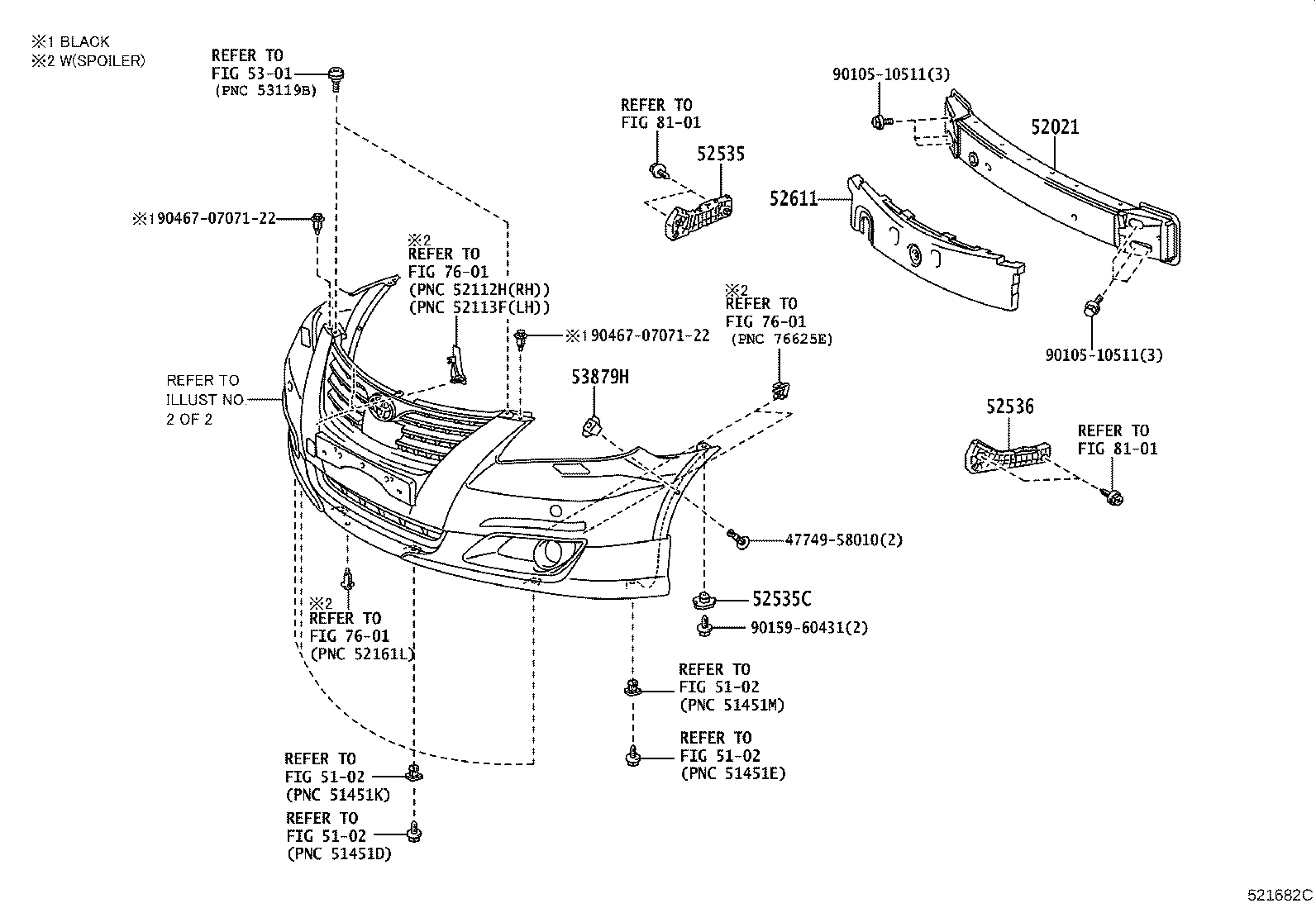

ILLUST NO. 1 OF 2(0610-0908)GSV40

Click highlighted areas on diagram

diagram 4774958010 5102 5102 5102 5102 52021 52535 52535C 52536 52611 5301 53879H 7601 7601 7601 8101 8101 9010510511 9010510511 9015960431 904670707122 904670707122
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-06070

ACV40,GSV40

 1
52021-06071

ACV40,AHV40,GSV40

 1
52021-06071

GSV40

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-06060

GSV40

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GSV40

 2
52535-50060

ACV40,AHV40,GSV40

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-06050

GSV40

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-06070

GSV40

 1
53879H - RETAINER, FRONT FENDER LINER
53879-58010

ACV40,AHV40,GSV40

 2
53879-58010

GSV40

 2
Common parts
47749-58010
90105-10511
90159-60431
90467-0707122
Linked diagrams
5102
5301
7601
8101

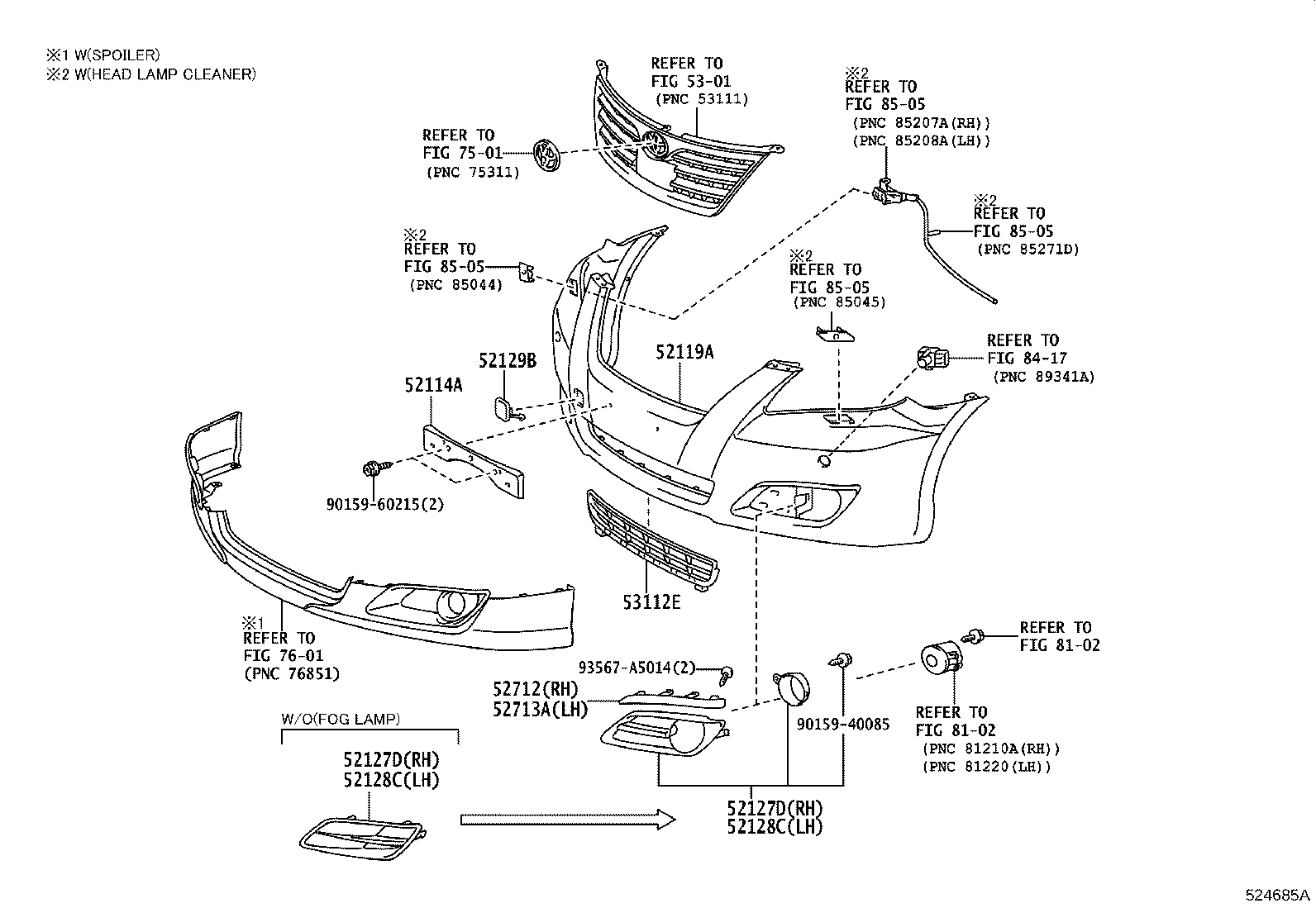

ILLUST NO. 2 OF 2(0610-0908)GSV40

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52127D 52128C 52128C 52129B 52712 52713A 5301 53112E 7501 7601 8102 8102 8417 8505 8505 8505 8505 9015940085 9015960215 93567A5014
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-06050

GSV40

 1
52119A - COVER, FRONT BUMPER
52119-06936

GSV40..GD,PRE

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52030-06030

GSV40..GD,PRD,PRE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52030-06030

GSV40..GD,PRD,PRE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52040-06030

GSV40..GD,PRD,PRE

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52040-06030

GSV40..GD,PRD,PRE

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-06922

GSV40

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-06010

GSV40..ATX,GD,PRD,PRE,TOU

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-06010

GSV40..ATX,GD,PRD,PRE,TOU

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-06050

GSV40

NO PAINT REQ.

 1
Common parts
90159-40085
90159-60215
93567-A5014
Linked diagrams
5301
7501
7601
8102
8417
8505
