GSV40L-JETGKV (2006)
Toyota Camry/Aurion/Hv(Arl)

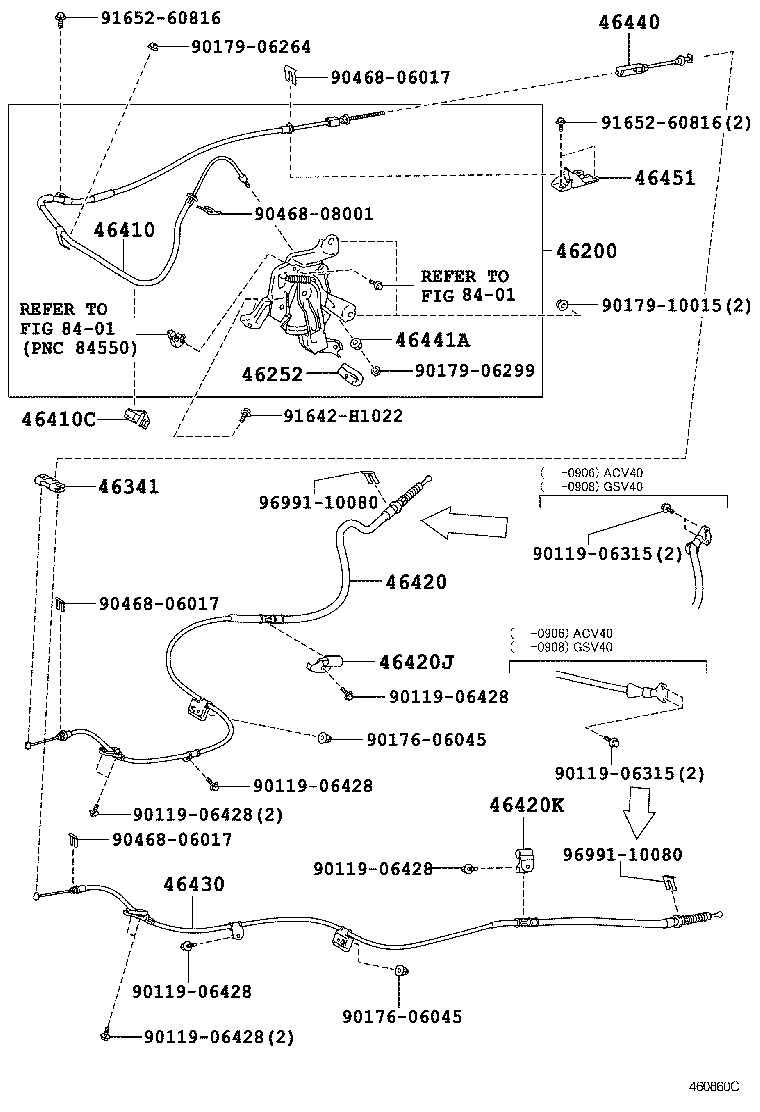

ILLUST NO. 1 OF 2(0606-1107)ATM..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-33090 |
ACV40,GSV40..ATM..GCC |
1 | ||
| 46200-33090 |
GSV40..GCC |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-22010 |
GSV40;ACV40..5FC..GCC |
1 | ||
| 46252-22010 |
GSV40 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-33030 |
ACV40,AHV40,GSV40 |
1 | ||
| 46341-33030 |
GSV40 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-33170 |
ACV40,GSV40..ATM..GCC |
1 | ||
| 46410-33170 |
GSV40..GCC |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-33010 |
GSV40..GCC |
1 | ||
| 46411-33010 |
ACV40,GSV40..ATM..GCC |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-33170 |
GSV40..GCC |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C61 |
ACV40,AHV40,GSV40 |
1 | ||
| 90949-01C61 |
GSV40 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C62 |
ACV40,AHV40,GSV40 |
1 | ||
| 90949-01C62 |
GSV40 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-33170 |
GSV40..GCC |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-06091 |
GSV40;ACV40..5FC..GCC |
1 | ||
| 46440-06091 |
GSV40 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-12010 |
GSV40 |
1 | ||
| 46441-12010 |
GSV40;ACV40..5FC..GCC |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33100 |
GSV40 |
1 | ||
| 46451-33100 |
GSV40;ACV40..5FC..GCC |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-06428 | ||||
| 90176-06045 | ||||
| 90179-06264 | ||||
| 90179-06299 | ||||
| 90179-10015 | ||||
| 90468-06017 | ||||
| 90468-08001 | ||||
| 91642-H1022 | ||||
| 91652-60816 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 8401 | ||||

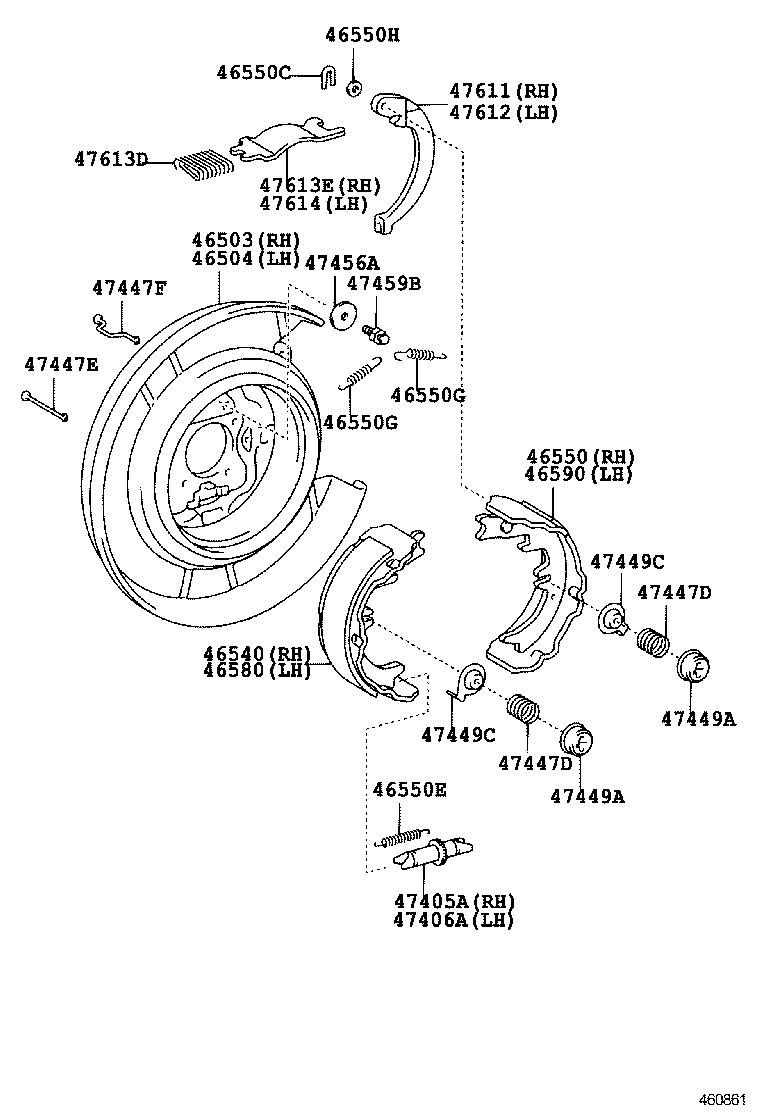

ILLUST NO. 2 OF 2(0606-0906)ACV40..GCC ; (0606-0908)GSV40..GCC ;(1001- )AHV40 ; (1107- )ACV40
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-33080 |
GSV40..GCC |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-33080 |
GSV40..GCC |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20070 |
GSV40..GCC |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-33020 |
GSV40..GCC |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
GSV40..GCC |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GSV40..GCC |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GSV40..GCC |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GSV40..GCC |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
GSV40..GCC T=0.6 |
1 | ||
| 90564-09184 |
GSV40..GCC T=0.3 |
1 | ||
| 90564-09186 |
GSV40..GCC T=0.9 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20070 |
GSV40..GCC |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-33020 |
GSV40..GCC |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GSV40..GCC |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GSV40..GCC |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
GSV40..GCC |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
GSV40..GCC |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
GSV40..GCC |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
GSV40..GCC |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GSV40..GCC |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GSV40..GCC |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GSV40..GCC |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-32010 |
GSV40..GCC |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
GSV40..GCC |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GSV40..GCC |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
GSV40..GCC |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
GSV40..GCC |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GSV40..GCC |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
GSV40..GCC |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
GSV40..GCC |
1 | ||

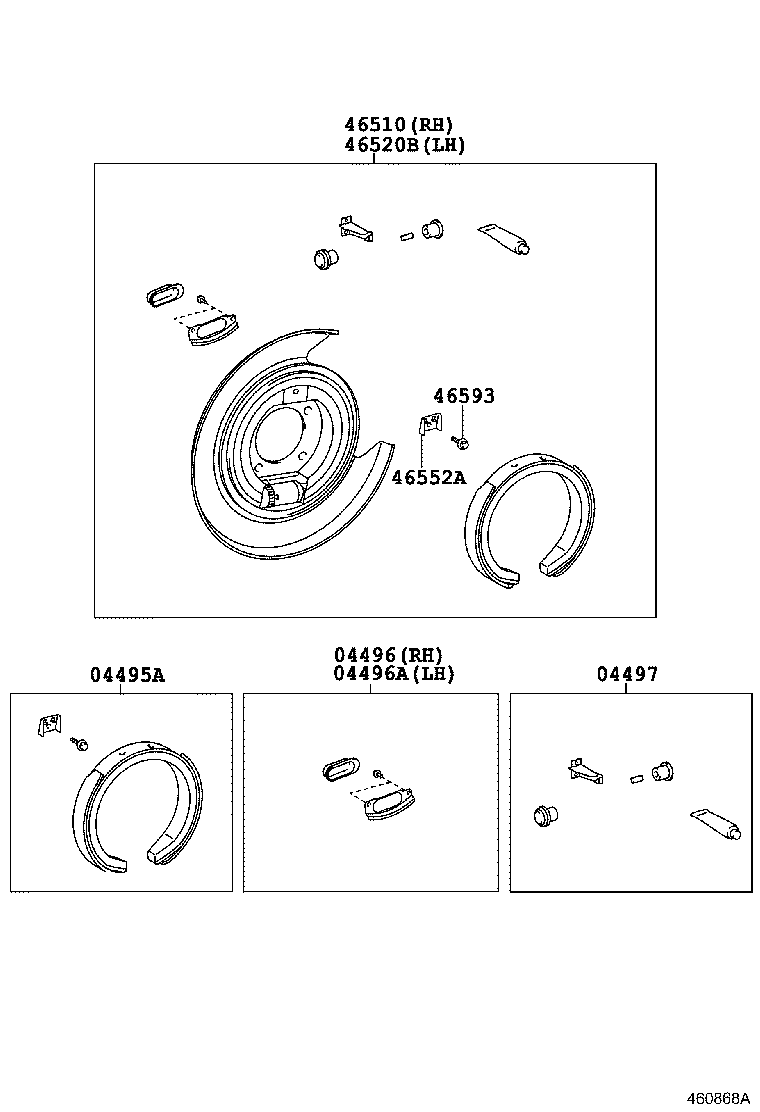

ILLUST NO. 2 OF 2(0606-1107)ACV40,GSV40..ARL ; (0906-1107)ACV40..GCC ; (0908-1107)GSV40..GCC ; (1107
TYPE A
| Part # | Description | Qty | Price |
|---|
