GSV40L-JETDKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2006 - Aug 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606-1107)ACV40,GSV40..ARL ; (0906-1107)ACV40..GCC ; (0908-1107)GSV40..GCC

Click highlighted areas on diagram

diagram 04465 04479 31478B 31478B 47547B 47710A 47715A 47715A 47716 47716 47721 47721A 47721A 47722 47730 47731 47750 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-06080

ACV40,GSV40..GCC

MARK NBK PN562H

 1
04465-06110

GSV40..GCC

MARK NBK PN562H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-06210

GSV40..GCC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GSV40..GCC

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GSV40..GCC

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-8Y001

GSV40..GCC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ACV40,GSV40

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-8Y003

GSV40..GCC

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-8Y003

GSV40..GCC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717-8Y001

GSV40..GCC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717-8Y001

GSV40..GCC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-8Y003

GSV40..GCC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-8Y001

GSV40..GCC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-06240

GSV40..GCC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-8Y003

GSV40..GCC

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-06240

GSV40..GCC

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-8Y001

GSV40..GCC

 4
47775-06050

ACV40,GSV40

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-8Y001

GSV40..GCC

 4
47775-06050

ACV40,GSV40

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-06080

ACV40,GSV40

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ACV40,GSV40

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-06080

ACV40,GSV40

 1

(0606-0906)ACV40..GCC ; (0606-0908)GSV40..GCC

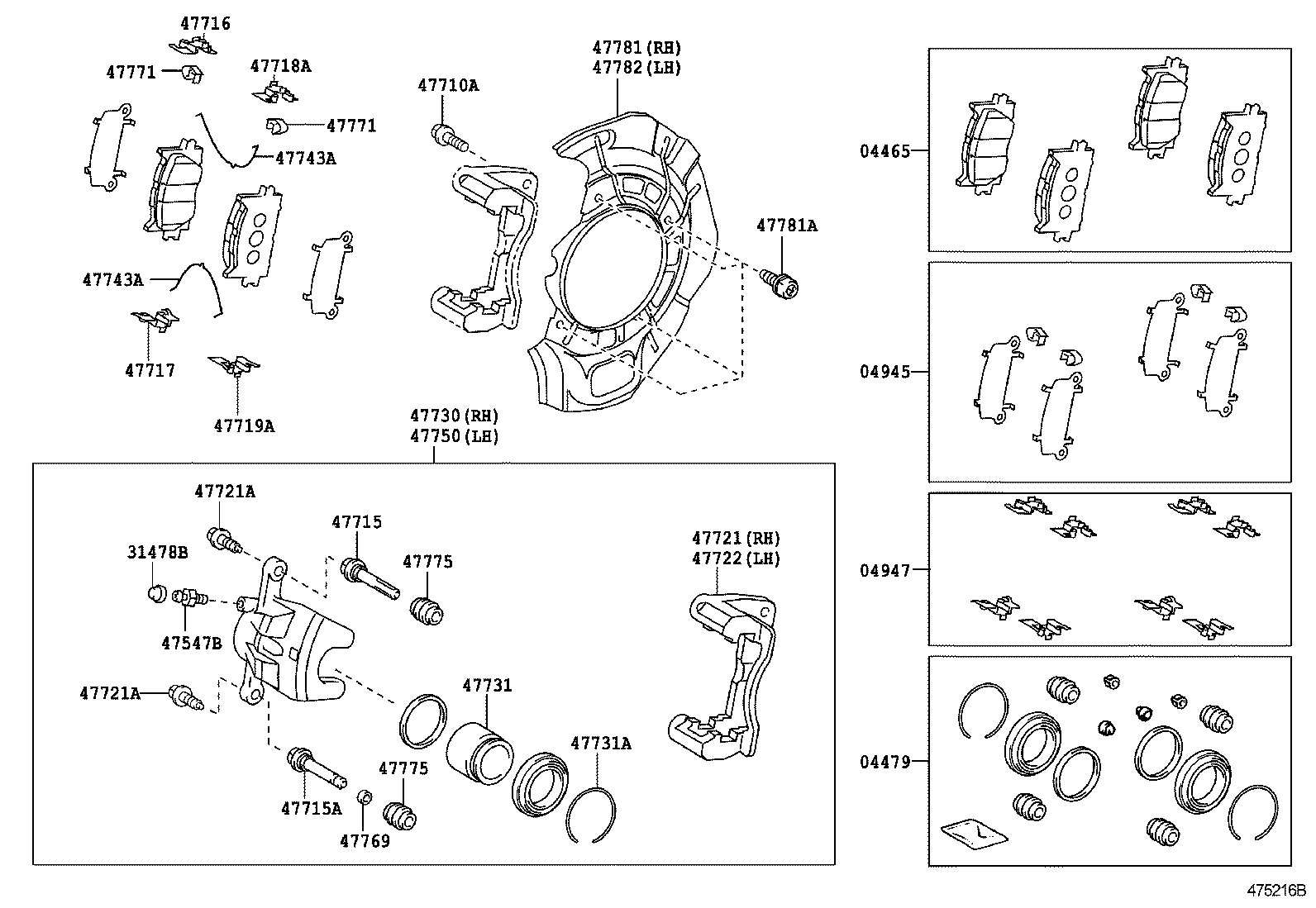

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715 47715A 47716 47717 47718A 47719A 47721 47721A 47721A 47722 47730 47731 47731A 47743A 47743A 47750 47769 47771 47771 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-06080

ACV40,GSV40..GCC

MARK NBK PN562H

 1
04465-06110

GSV40..GCC

MARK NBK PN562H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-06210

GSV40..GCC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-06120

GSV40..GCC

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-06090

GSV40..GCC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GSV40..GCC

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-8Y001

GSV40..GCC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ACV40,GSV40

*12-1.25PX29.5-23

 4
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-8Y002

GSV40..GCC

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-8Y003

GSV40..GCC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717-8Y001

GSV40..GCC

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-8Y002

GSV40..GCC

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-8Y002

GSV40..GCC

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-8Y001

GSV40..GCC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-8Y003

GSV40..GCC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-8Y001

GSV40..GCC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-06240

GSV40..GCC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-8Y003

GSV40..GCC

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-8Y001

GSV40..GCC

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-8Y001

GSV40..GCC

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-8Y001

GSV40..GCC

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-06240

GSV40..GCC

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-8Y001

GSV40..GCC

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-8Y001

GSV40..GCC

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-8Y001

GSV40..GCC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-8Y001

GSV40..GCC

 4
47775-06050

ACV40,GSV40

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-8Y001

GSV40..GCC

 4
47775-06050

ACV40,GSV40

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-06080

ACV40,GSV40

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ACV40,GSV40

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-06080

ACV40,GSV40

 1
