AVV50R-DEXDBQ (2015)

Toyota Camry/Aurion/Hv(Arl)

Production Apr 2015 - Oct 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )ASV50,AVV50..ARL

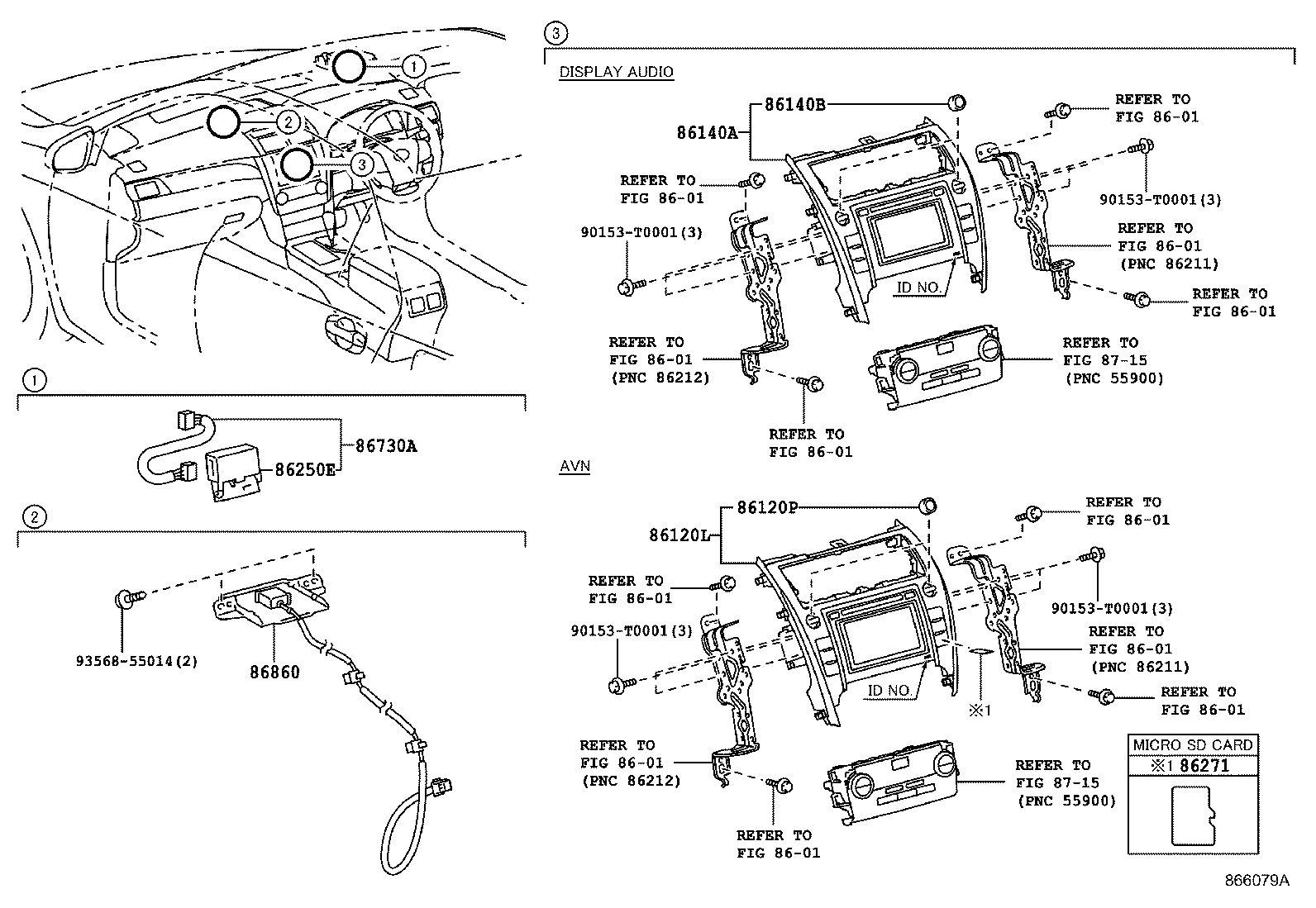

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 86120L 86120P 86140A 86140B 86250E 86271 86730A 86860 8715 8715 90153T0001 90153T0001 90153T0001 90153T0001 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86804-06230

ASV50,AVV50..ATRS,HBD

FUJITSU TEN,ID100739

 1
86804-06080

AVV50

FUJITSU TEN,ID100394,LIMITED PACKAGE

 1
86804-06230

AVV50

FUJITSU TEN,ID100739,AUDIO-*DA(CD & *BT) & 6SPEAKER

 1
86804-06080

AVV50

FUJITSU TEN,ID100394,AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

 1
86120P - KNOB, NAVIGATION RECEIVER SWITCH
90011-25198

ASV50,AVV50..ATRS,HBD

LIMITED PACKAGE

 2
90011-23038

AVV50

LIMITED PACKAGE

 2
90011-23038

AVV50

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

 2
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-06290

ASV50,AVV50..ATRS,HBD

FUJITSU TEN,ID100393

 1
86140-06080

ASV50,AVV50..ATRS,ATRSX,HBD

FUJITSU TEN,ID100035

 1
86140-06380

AVV50

FUJITSU TEN,ID100457,DECONTENT PACKAGE

 1
86140-06380

AVV50

FUJITSU TEN,ID100457,AUDIO-*DA(CD & *BT) & 6SPEAKER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-23038

ASV50,AVV50..ATRS,HBD

 2
90011-25197

ASV50,AVV50..ATRS,ATRSX,HBD

 2
90011-23038

AVV50

AUDIO-*DA(CD & *BT) & 6SPEAKER

 2
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ASV50,AVV50,GSV50..ARL

 1
86250-52020

ASV50,AVV50,GSV50..ARL

 1
86271 - DISC, DISC PLAYER
86807-30120

ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS

LIMITED PACKAGE

 1
86271-0E171

ASV50,AVV50..ATRS,HBD

LIMITED PACKAGE,MICRO SD CARD

 1
86271-0E172

ASV50,AVV50..ATRS,HBD

LIMITED PACKAGE,MICRO SD CARD

 1
86271-0E173

ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS

MICRO SD CARD

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-47030

ASV50,AVV50,GSV50..ARL

 1
86730-47030

ASV50,AVV50,GSV50..ARL

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-33180

ASV50,AVV50..ATRS,HBD

LIMITED PACKAGE

 1
86860-33210

AVV50

DECONTENT PACKAGE

 1
86860-33210

ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS

 1
86860-33210

AVV50

AUDIO-*DA(CD & *BT) & 6SPEAKER

 1
Common parts
90153-T0001
93568-55014
Linked diagrams
8601
8715
