AVV50R-DEXDBQ (2015)

Toyota Camry/Aurion/Hv(Arl)

Production Apr 2015 - Oct 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )ASV50,AVV50

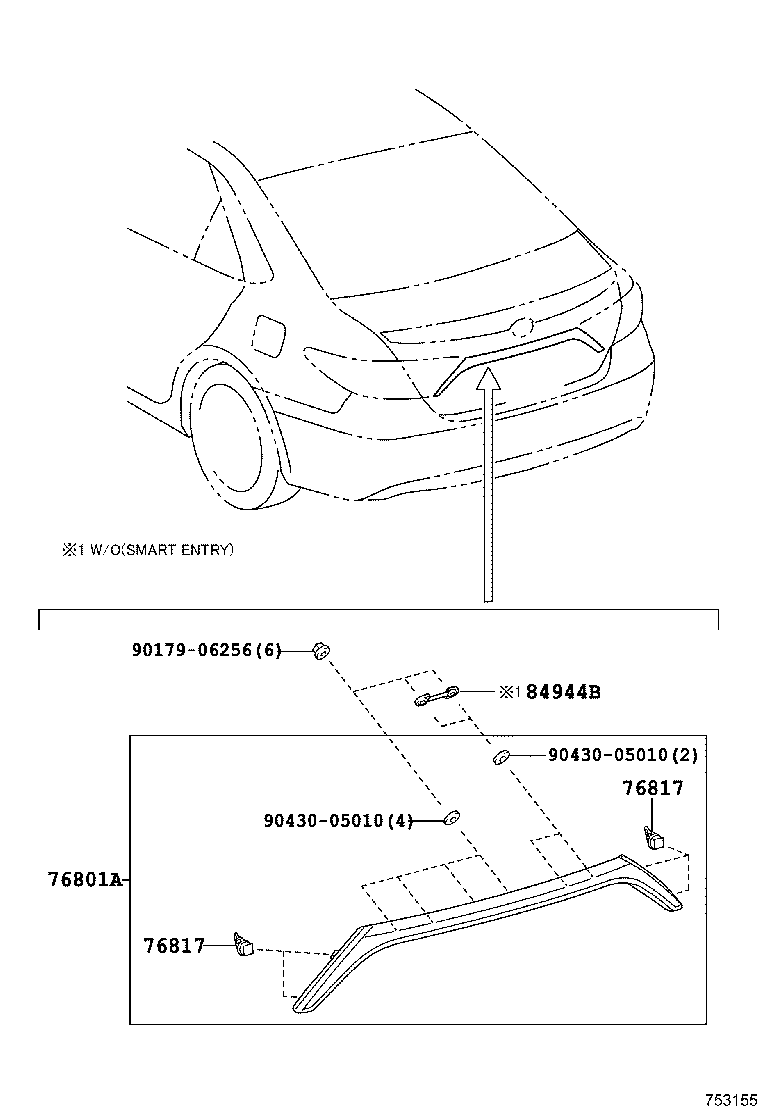

Click highlighted areas on diagram

diagram 76801A 76817 76817 84944B 9017906256 9043005010 9043005010
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-06912

ASV50,AVV50..ATRSX,HBD

PAINT REQ.

 1
76801-06D00

ASV50,AVV50..ATRS,HBD

PLATED

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12060

ASV50,AVV50,GSV50..ATM,CVT

 1
76817-07010

ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD

 4
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12060

ASV50,AVV50,GSV50..ATM,CVT

 1
76817-07010

ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD

 4
Common parts
90179-06256
90430-05010
