AVV50R-DEXDBQ (2012)

Toyota Camry/Aurion/Hv(Arl)

Production Jan 2012 - Apr 2015
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1504)AVV50 ; (1307-1504)GLX

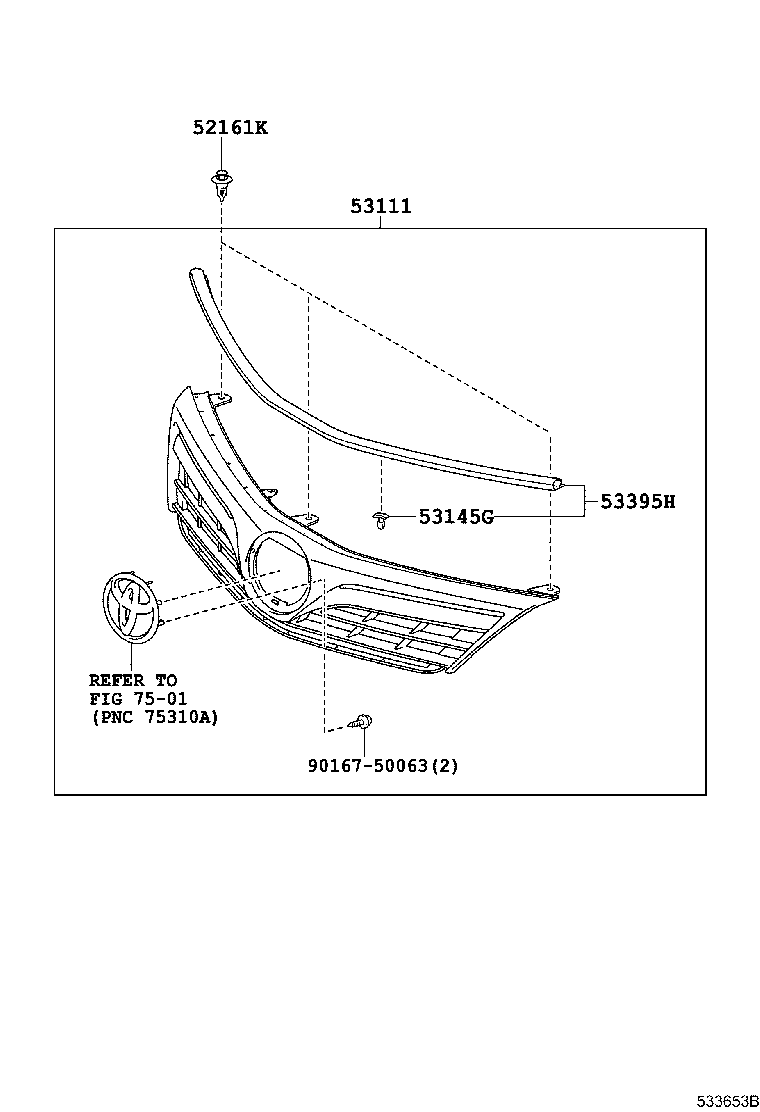

Click highlighted areas on diagram

diagram 52161K 53111 53145G 53395H 7501 9016750063
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

ASV50,AVV50..ATM,CVT

 3
53111 - GRILLE, RADIATOR
53101-06400

AVV50

PLATED

 1
53145G - CLIP, RADIATOR GRILLE
53145-0K010

ASV50,AVV50

 15
53145-60030

ASV50,AVV50..ATM,CVT

 15
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-06040

ASV50,AVV50..ATM,CVT

 1
Common parts
90167-50063
Linked diagrams
7501
