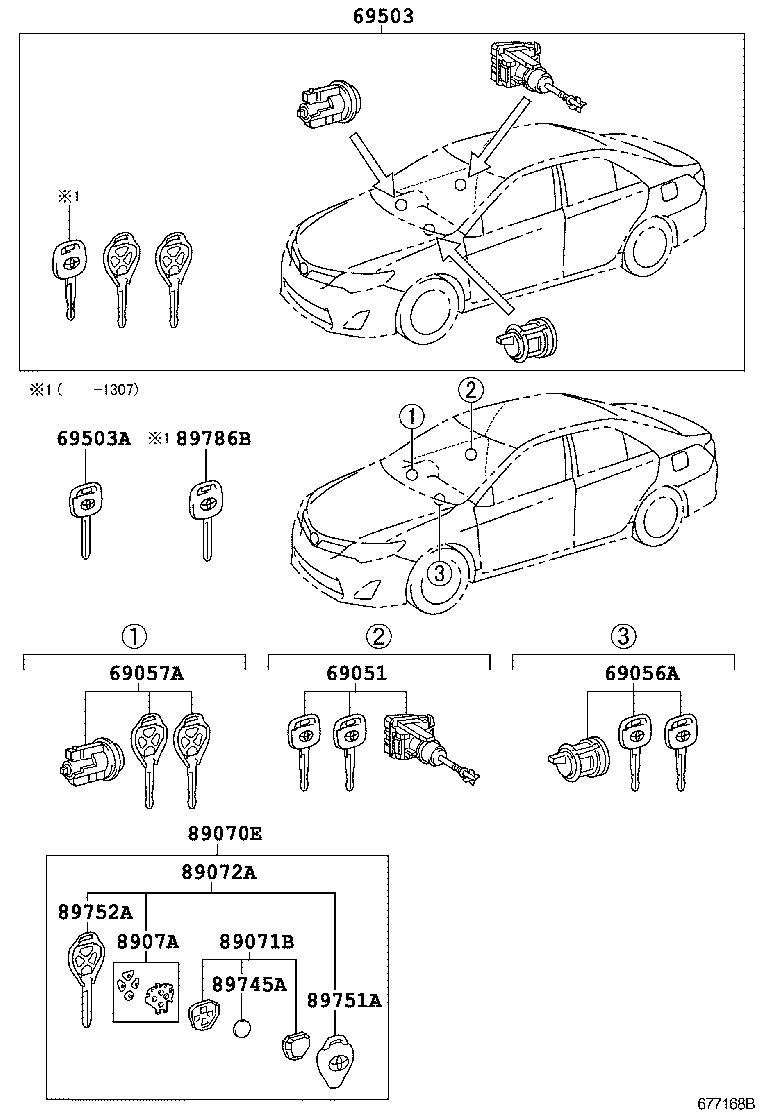

ASV50R-DETVKQ (2011)
Toyota Camry/Aurion/Hv(Arl)
(1110-1504)ALT,ATRS,ATX
W(WIRELESS DOOR LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-06081 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS |
1 | ||
| 69051-06051 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-06100 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD |
1 | ||
| 69056-06160 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD |
1 | ||
| 69056-06040 |
ASV50..6F |
1 | ||
| 69056-06040 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-02580 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-06541 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS |
1 | ||
| 69005-06532 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69005-06531 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-33100 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
1 | ||
| 90999-00251 |
ASV50..6F MASTER KEY,W(*68) |
1 | ||
| 69515-06030 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
1 | ||
| 90999-00251 |
ASV50..ATRS MASTER KEY,W(*68),STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-06480 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-33410 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-06150 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-33010 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-52140 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
2 | ||
| 89751-0K080 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-02310 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-08040 |
ASV50..ATRS BLANK KEY,STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89786-08040 |
ASV50..6F BLANK KEY |
1 | ||

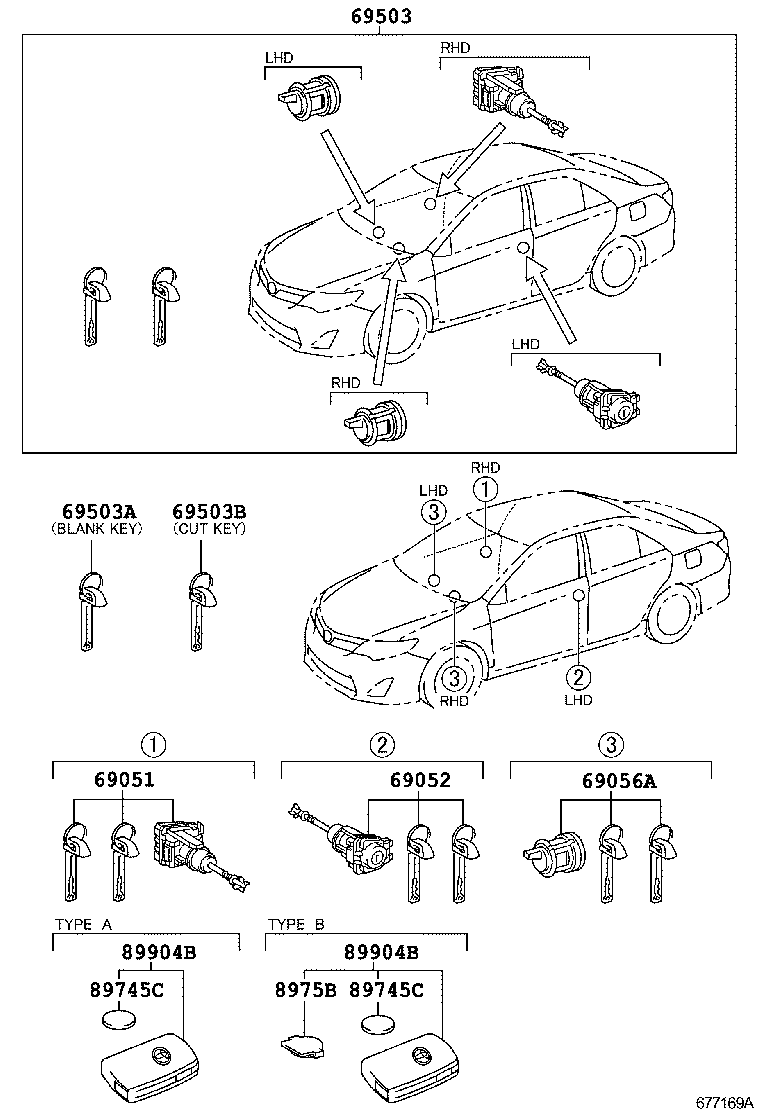

(1110- )6F..GL ; (1110- )ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU
W(STARTING SYSTEM-PUSH BUTTON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-06081 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS |
1 | ||
| 69051-06051 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-06100 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD |
1 | ||
| 69056-06160 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD |
1 | ||
| 69056-06040 |
ASV50..6F |
1 | ||
| 69056-06040 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-06541 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS |
1 | ||
| 69005-06532 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69005-06531 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-33100 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
1 | ||
| 90999-00251 |
ASV50..6F MASTER KEY,W(*68) |
1 | ||
| 69515-06030 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
1 | ||
| 90999-00251 |
ASV50..ATRS MASTER KEY,W(*68),STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-33090 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
2 | ||
| 69515-06020 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD MASTER KEY,W(*68) |
2 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-45010 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL),TYPE A:REFER ILLUST. |
1 | ||
| 89745-45010 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS TYPE A:REFER ILLUST. |
1 | ||
| 89745C - BATTERY, TRANSMITTER | ||||
| 89745-45010 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL),TYPE A:REFER ILLUST. |
1 | ||
| 89745-45010 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS TYPE A:REFER ILLUST. |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-33450 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS TYPE A:REFER ILLUST. |
2 | ||
| 89904-33450 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL),TYPE A:REFER ILLUST. |
2 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-33450 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS TYPE A:REFER ILLUST. |
2 | ||
| 89904-33450 |
ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL),TYPE A:REFER ILLUST. |
2 | ||
