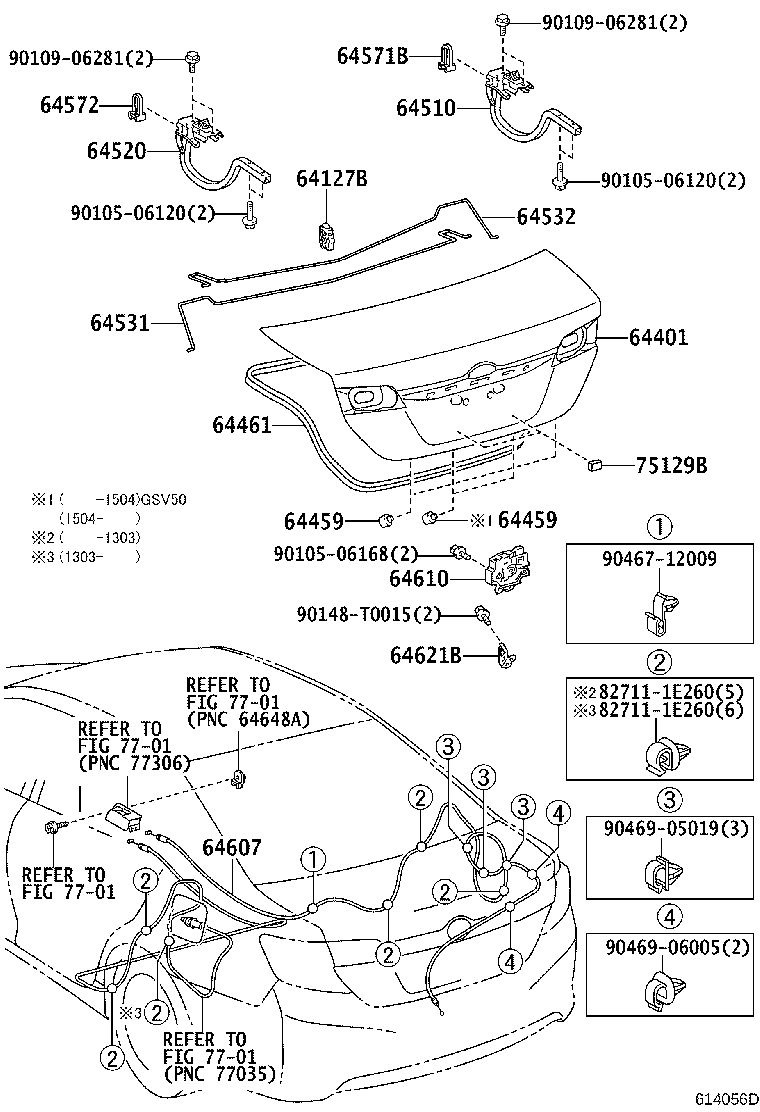

Toyota Camry/aurion/hv(arl) ASV50 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-06071	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
64127-06071	ASV50..6F	10/2011 - 11/2012	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-06640	ASV50..ATRSX	10/2011 - 04/2015	1
64401-06670	ASV50,AVV50..ATRS,HBD	10/2011 - 04/2015	1
64401-06640	ASV50,AVV50..ATRS,HBD REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)	10/2011 - 04/2015	1
64401-06650	ASV50..ATRS STARTING SYSTEM-ROTARY(MECHANICAL)	09/2012 - 04/2015	1
64401-06690	ASV50..ATRS REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)&STARTING SYSTEM-ROTARY(MECHANICAL)	09/2012 - 04/2015	1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09116	ASV50..6F	10/2011 - 11/2012	2
90541-09116	ASV50,AVV50..ATM,CVT	10/2011 - 04/2015	2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09116	ASV50..6F	10/2011 - 11/2012	2
90541-09116	ASV50,AVV50..ATM,CVT	10/2011 - 04/2015	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-06120	ASV50..6F	10/2011 - 11/2012	1
64461-06120	ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,TOU	10/2011 - 04/2015	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-06110	ASV50,AVV50,GSV50	10/2011 - 11/2012	1
64510-06111	ASV50,AVV50,GSV50	12/2012 - 04/2015	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-06111	ASV50,AVV50,GSV50	12/2012 - 04/2015	1
64510-06110	ASV50,AVV50,GSV50	10/2011 - 11/2012	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-06221	ASV50,AVV50..ALT,ATRS,HBD REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)	10/2011 - 04/2015	1
64531-06211	ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD)	10/2011 - 04/2015	1
64531-06221	ASV50..6FC..(ATRSX,SE)	10/2011 - 04/2015	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-06241	ASV50,AVV50..ALT,ATRS,HBD REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)	10/2011 - 04/2015	1
64532-06241	ASV50..6FC..(ATRSX,SE)	10/2011 - 04/2015	1
64532-06231	ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD)	10/2011 - 04/2015	1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-33040	ASV50..6F	10/2011 - 11/2012	1
64571-33040	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64571-33040	ASV50..6F	10/2011 - 11/2012	1
64571-33040	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-06300	ASV50,AVV50,GSV50..ARL	10/2011 - 04/2015	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-33160	ASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU)	10/2011 - 04/2015	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33030	ASV50..6F	10/2011 - 11/2012	1
64621-33030	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
75129B - CUSHION, REAR LICENCE PLATE
75129-YC010	ASV50..6F	10/2011 - 11/2012	2
75129-YC010	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	2
Common parts
82711-1E260
90105-06120
90105-06168
90109-06281
90148-T0015
90467-12009
90469-05019
90469-06005
Linked diagrams
7701

ASV50R-DETVKQ (2011)

(1110- )ARL
