ASV50R-DETVKQ (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Apr 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )ASV50..ARL ; (1202- )GSV50..ARL

Click highlighted areas on diagram

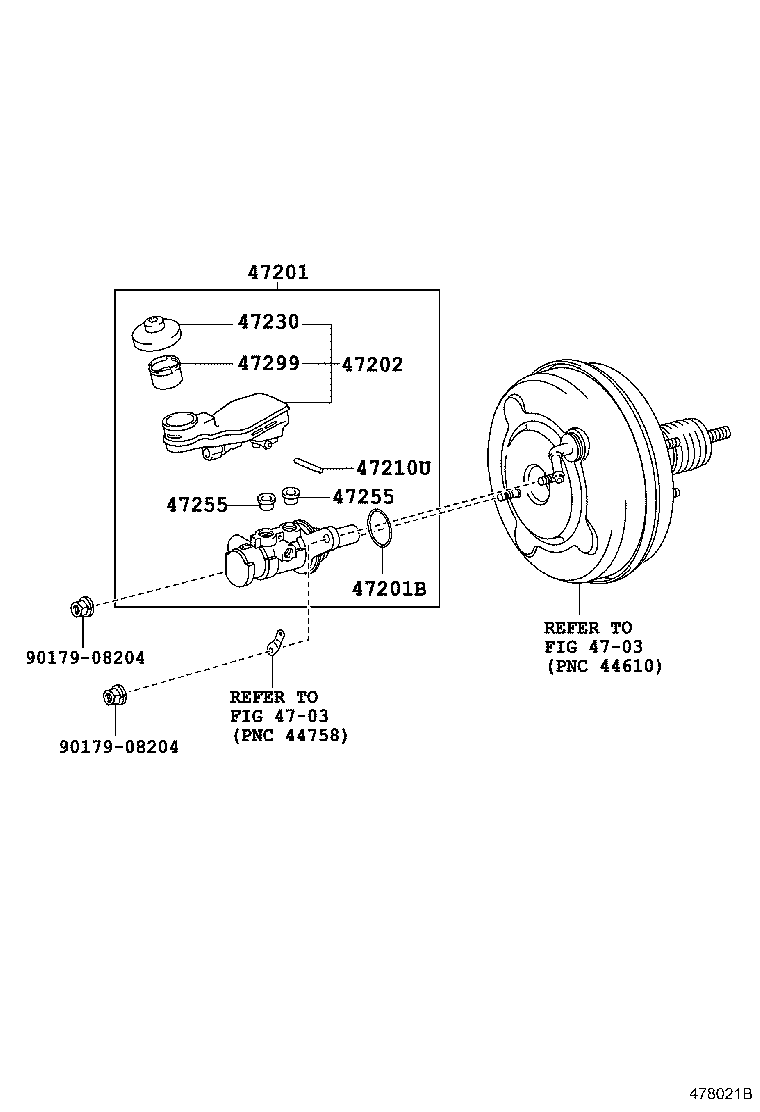

diagram 4703 4703 47201 47201B 47202 47210U 47230 47255 47255 47299 9017908204 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-33580

ASV50..6F

1
47201-33550

ASV50,GSV50..ARL

1
47201-33552

ASV50,GSV50..ARL

1
47201-33551

ASV50,GSV50..ARL

1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

ASV50;GSV50..ARL

1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-33310

ASV50..6F

1
47220-33231

ASV50,GSV50..ARL

1
47220-33230

ASV50,GSV50..ARL

1
47220-33250

ASV50..6F

1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90015-AE401

ASV50;GSV50..ARL

1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-33071

ASV50..6F

1
47230-33071

ASV50,GSV50..ARL

1
47230-33072

ASV50,GSV50..ARL

1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

ASV50;GSV50..ARL

2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

ASV50;GSV50..ARL

2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-52110

ASV50..6FC;GSV50..ARL

1
47299-52110

ASV50..6F

1
Common parts
90179-08204
Linked diagrams
4703
