ASV50R-DETNKQ (2015)

Toyota Camry/Aurion/Hv(Arl)

Production Apr 2015 - Oct 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )2ARFE

Click highlighted areas on diagram

W(TCV)

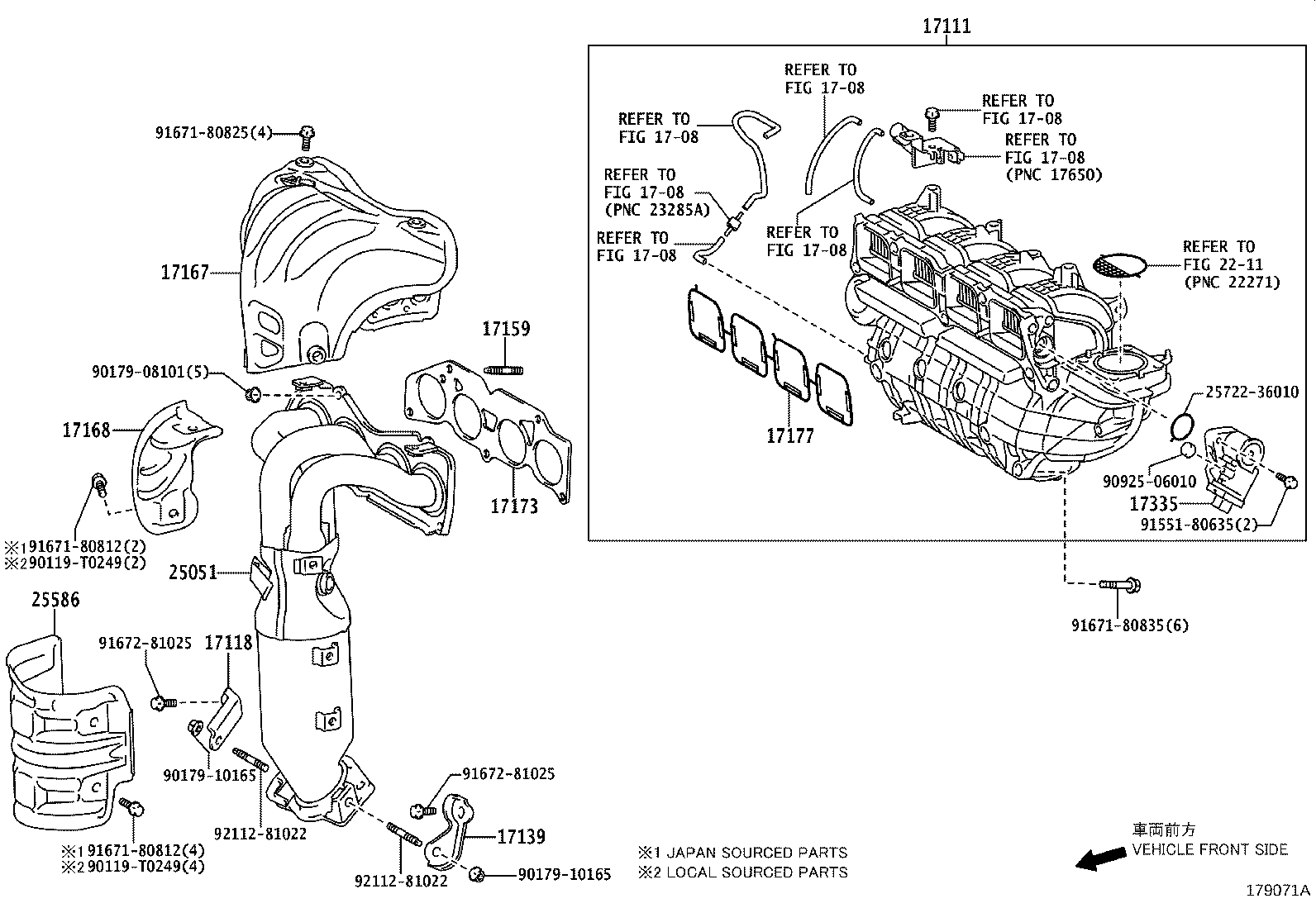

diagram 1708 1708 1708 1708 1708 1708 1708 17111 17118 17139 17159 17167 17168 17173 17177 17335 2211 25051 25586 2572236010 90119T0249 90119T0249 9017908101 9017910165 9017910165 9092506010 9155180635 9167180812 9167180812 9167180825 9167180835 9167281025 9167281025 9211281022 9211281022
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-36070

2ARFE..ASV50..ARL

*286

 1
17120-36070

2ARFE..ASV50..6F

*107

 1
17120-36010

2ARFE..ASV50..ARL

*286

 1
17120-36070

2ARFE..ASV50..ARL

*107

 1
17120-36070

2ARFE..ASV50..ATRS

DEST.PACKAGE (EXC/ERP.)-PAPUA NEW GUINEA/FIJI SPEC,*286

 1
17120-36011

2ARFE..ASV50..ARL

*286

 1
17118 - STAY, MANIFOLD
17118-36010

2ARFE..ASV50..6F

*107

 1
17118-36010

2ARFE..ASV50..ARL

 1
17118-36010

2ARFE..ASV50..ARL

*107

 1
17139 - STAY, MANIFOLD, NO.2
17139-36020

2ARFE..ASV50..6F

*107

 1
17139-36020

2ARFE..ASV50..ARL

*107

 1
17139-36020

2ARFE..ASV50..ARL

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

2ARFE..ASV50..6F

*107

 5
90126-08052

2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD

*286

 5
90126-08037

2AR#..ASV50,AVV50..ARL

*107

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-36011

2ARFE..ASV50..6F

*107

 1
17167-36011

2AR#..ASV50,AVV50..ARL

*107

 1
17167-36011

2AR#..ASV50,AVV50..ARL

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-36010

2ARFE..ASV50..6F

*107

 1
17168-36010

2AR#..ASV50,AVV50..ARL

*107

 1
17168-0V030

2AR#..ASV50,AVV50..ARL

(L)

 1
17168-36010

2AR#..ASV50,AVV50..ARL

(J)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-36020

2AR#..ASV50,AVV50..ARL

*107

 1
17173-36020

2ARFE..ASV50..6F

*107

 1
17173-36020

2AR#..ASV50,AVV50..ARL

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-36020

2ARFE..ASV50..6F

*107

 1
17171-36020

2ARFE..ASV50..ARL

*286

 1
17171-36020

2AR#..ASV50,AVV50..ARL

*107

 1
17171-36011

2ARFE..ASV50..ARL

 1
17171-36010

2ARFE..ASV50..ARL

 1
17171-36020

2ARFE..ASV50..ATRS

DEST.PACKAGE (EXC/ERP.)-PAPUA NEW GUINEA/FIJI SPEC,*286

 1
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-36010

2ARFE..ASV50..ARL

*286

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-36130

2ARFE..ASV50..6F

*114=TOYOTA/36130/Y,*107

 1
25051-36130

2ARFE..ASV50..ARL

*114=TOYOTA/36130/Y,*107

 1
25051-0V120

2ARFE..ASV50..ARL

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-36010

2ARFE..ASV50..ARL

*107

 1
25586-36010

2ARFE..ASV50..6F

*107

 1
25586-0V050

2ARFE..ASV50..ARL

(L)

 1
25586-36010

2ARFE..ASV50..ARL

(J)

 1
Common parts
25722-36010
90119-T0249
90179-08101
90179-10165
90925-06010
91551-80635
91671-80812
91671-80825
91671-80835
91672-81025
92112-81022
Linked diagrams
1708
2211
