ASV50R-DETNKQ (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Apr 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1110-1504)GSV50 ; (1110- )ASV50,AVV50..ATRS,ATRSX,GLX,HBD,SE

Click highlighted areas on diagram

CONTROL PANEL---AUTO

diagram 55900 55902C 55904A 86442A 9006800017 9006800017 9009900297 9009900297 90167T0012 9046710203
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-06390

ASV50..ATRS

DECONTENT PACKAGE

 1
55900-06440

ASV50,AVV50..ATRS,ATRSX,HBD

 1
55900-06440

ASV50..ATRS

DECONTENT PACKAGE

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-06240

ASV50..ATRS

DECONTENT PACKAGE

 1
55902-06240

ASV50,AVV50..(ATM,CVT)..(ATRS,ATRSX,GLX,HBD,SE)

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-06080

ASV50..ATRS

DECONTENT PACKAGE

 1
55904-06080

ASV50,AVV50..ATRS,ATRSX,HBD

 1
86442A - BOARD, HEATER CONTROL SWITCH
86442-06020

ASV50..ATRS

DECONTENT PACKAGE

 1
86442-06020

ASV50,AVV50..ATRS,ATRSX,HBD

 1
Common parts
90068-00017
90099-00297
90167-T0012
90467-10203

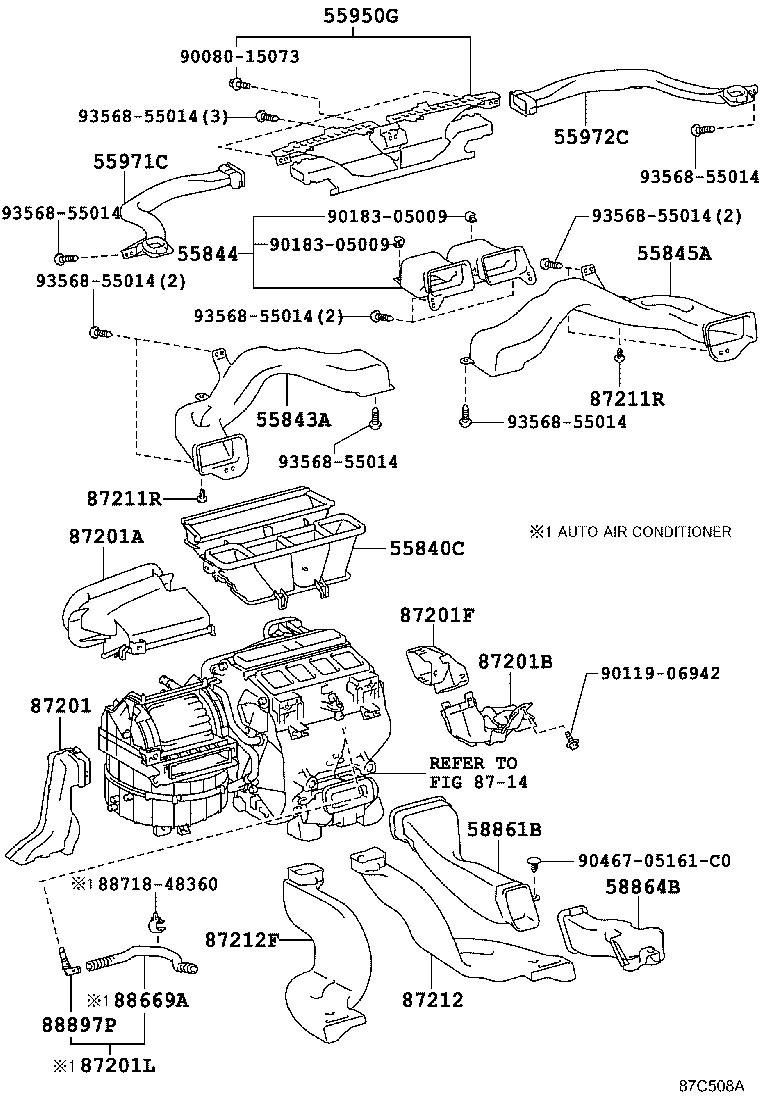

ILLUST NO. 2 OF 3(1110- )ARL

Click highlighted areas on diagram

AIR DUCT

diagram 55840C 55843A 55844 55845A 55950G 55971C 55972C 58861B 58864B 87201 87201A 87201B 87201F 87201L 87211R 87211R 87212 87212F 88669A 8871848360 88897P 9008015073 9011906942 9018305009 9018305009 9046705161C0 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-06061

ASV50,AVV50,GSV50..ATM,CVT

 1
55840-06061

ASV50..6F

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-06170

ASV50..6F

 1
55843-06170

ASV50,GSV50..6FC

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-06120

ASV50,AVV50,GSV50..ATM,CVT

 1
55844-06120

ASV50..6F

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-06110

ASV50..6F

 1
55845-06110

ASV50,AVV50,GSV50..ATM,CVT

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-06110

ASV50..6F

 1
55950-06110

ASV50,AVV50,GSV50..ATM,CVT

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-06090

ASV50,AVV50,GSV50..ATM,CVT

 1
55971-06090

ASV50..6F

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-06090

ASV50,AVV50,GSV50..ATM,CVT

 1
55972-06090

ASV50..6F

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-06130

ASV50,AVV50,GSV50..ARL

 1
58861-06120

ASV50..6F

 1
58864B - DUCT, CONSOLE BOX, NO.4
58864-06060

ASV50,AVV50,GSV50..ARL

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-06370

ASV50..6F

 1
87201-06320

ASV50,AVV50,GSV50..ARL

 1
87201A - DUCT SUB-ASSY, AIR
87201-06480

ASV50,AVV50,GSV50..ARL

 1
87201-06460

ASV50..6F

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-06470

ASV50..6F

 1
87201-06510

ASV50,AVV50,GSV50..ARL

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-06490

ASV50,AVV50,GSV50..ARL

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87201-06500

ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS

 1
87211R - CLIP, AIR DUCT
90467-07076C0

ASV50,AVV50,GSV50

BLACK

 2
87211R - CLIP, AIR DUCT
90467-07076C0

ASV50,AVV50,GSV50

BLACK

 2
87212 - DUCT, AIR, REAR NO.1
87212-06060

ASV50..6F

 1
87212-06060

ASV50,AVV50,GSV50..ATM,CVT

 1
87212F - DUCT, AIR, REAR NO.2
87213-06060

ASV50,AVV50,GSV50..ATM,CVT

 1
87213-06060

ASV50..6F

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-06070

ASV50,AVV50,GSV50..(ATM,CVT)..(ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU)

 1
88897P - ASPIRATOR
88897-06020

ASV50..6F

 1
88897-06020

ASV50,AVV50,GSV50..ATM,CVT

 1
Common parts
88718-48360
90080-15073
90119-06942
90183-05009
90467-05161C0
93568-55014

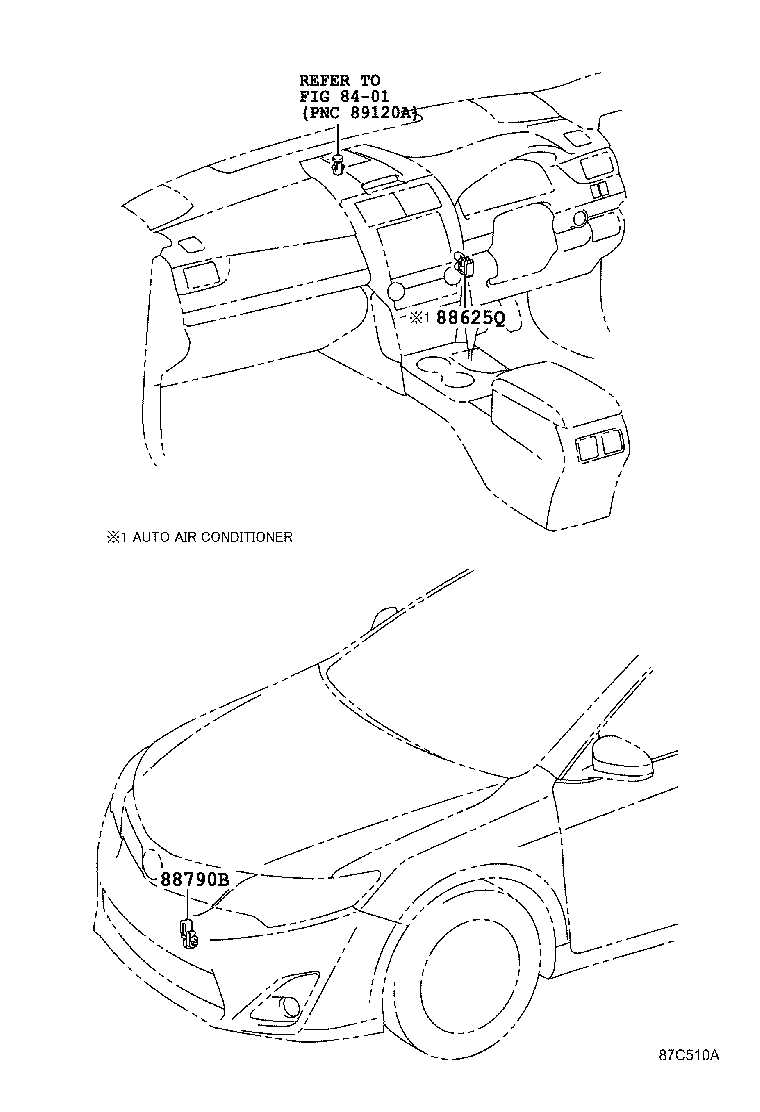

ILLUST NO. 3 OF 3(1110- )ARL

Click highlighted areas on diagram

SENSOR

diagram 8401 88625Q 88790B
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-06030

ASV50..ATRS

DECONTENT PACKAGE

 1
88625-06030

ASV50,AVV50,GSV50..(ATM,CVT)..(ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU)

 1
88790B - THERMISTOR ASSY
88790-22131

ASV50,AVV50,GSV50..ATM,CVT

 1
88790-22131

ASV50..6F

 1
88790-22131

ASV50..ATRS

DECONTENT PACKAGE

 1
Linked diagrams
8401
