Toyota Camry/aurion/hv(arl) ASV50 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty

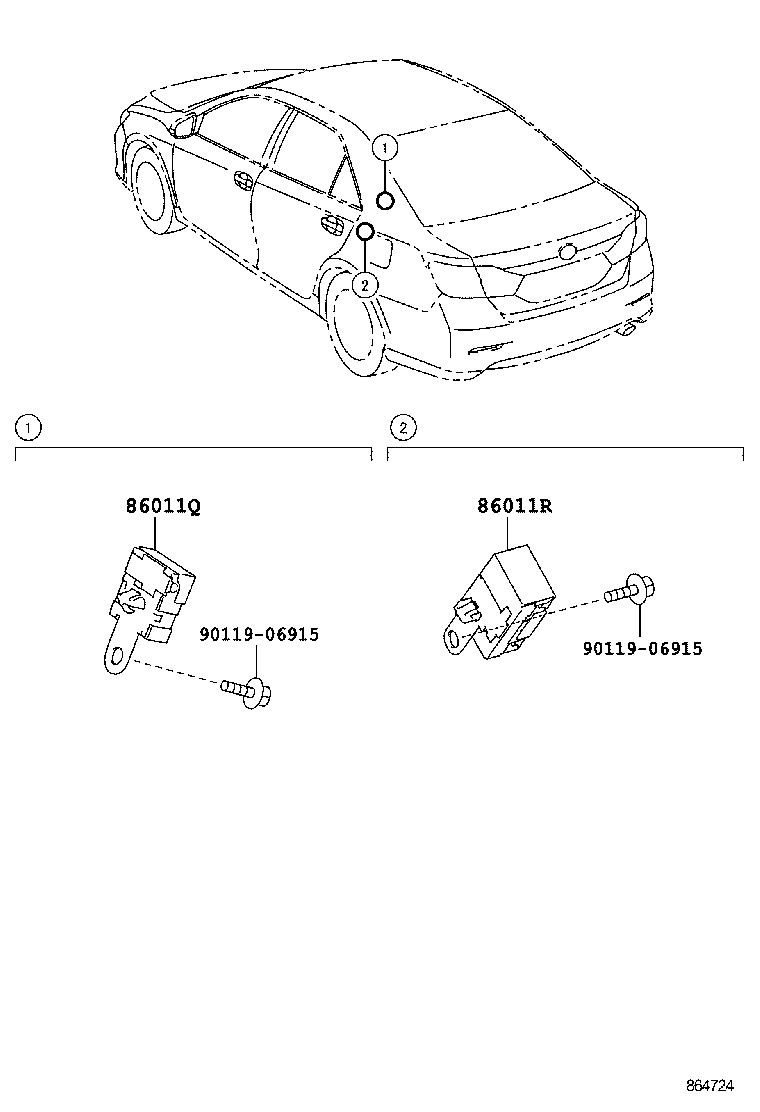

86011Q - CONDENSER, RADIO SETTING
90980-04189	ASV50..6F	10/2011 - 11/2012	1
90980-04189	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
86011R - CONDENSER, RADIO SETTING
90980-04204	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
90980-04204	ASV50..6F	10/2011 - 11/2012	1
Common parts
90119-06915

Part #	Description	Period	Qty

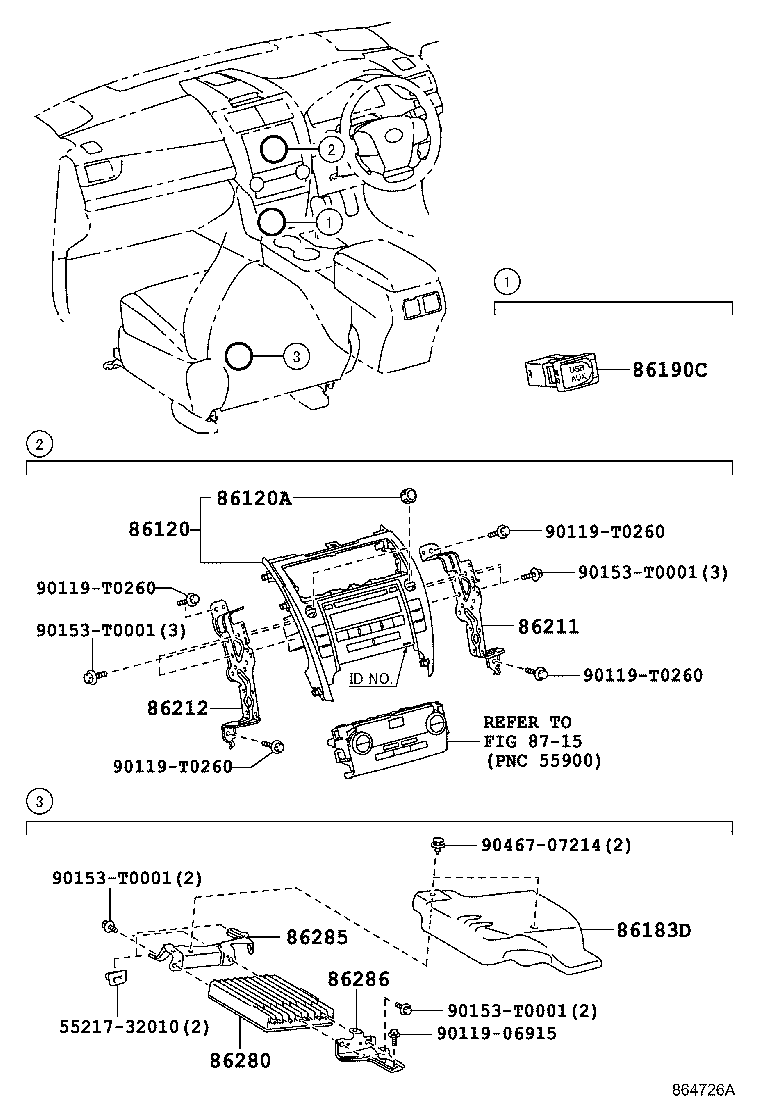

86183D - COVER, AUDIO AMPLIFIER
86183-33050C0	ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE,BLACK	10/2011 - 04/2015	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-33030	ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,ATRSX,GLX,HBD,SE)	10/2011 - 04/2015	1
86211 - BRACKET, RADIO, NO.1
86211-06100	ASV50,AVV50..ATM,CVT	10/2011 - 04/2015	1
86211-06100	ASV50..6F	10/2011 - 11/2012	1
86212 - BRACKET, RADIO, NO.2
86212-06100	ASV50,AVV50..ATM,CVT	10/2011 - 04/2015	1
86212-06100	ASV50..6F	10/2011 - 11/2012	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86100-33490	ASV50,AVV50..ATRS,HBD LIMITED PACKAGE	10/2013 - 10/2014	1
86280-33220	ASV50,AVV50..ATRS,HBD LIMITED PACKAGE	10/2014 - 04/2015	1
86100-0W250	ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE	10/2011 - 09/2013	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-06070	ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE	10/2011 - 04/2015	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-06050	ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE	10/2011 - 04/2015	1
Common parts
55217-32010
90119-06915
90119-T0260
90153-T0001
90467-07214
Linked diagrams
8715

ASV50R-DETNKQ (2011)
