ASV50R-DETNKQ (2011)
Toyota Camry/Aurion/Hv(Arl)

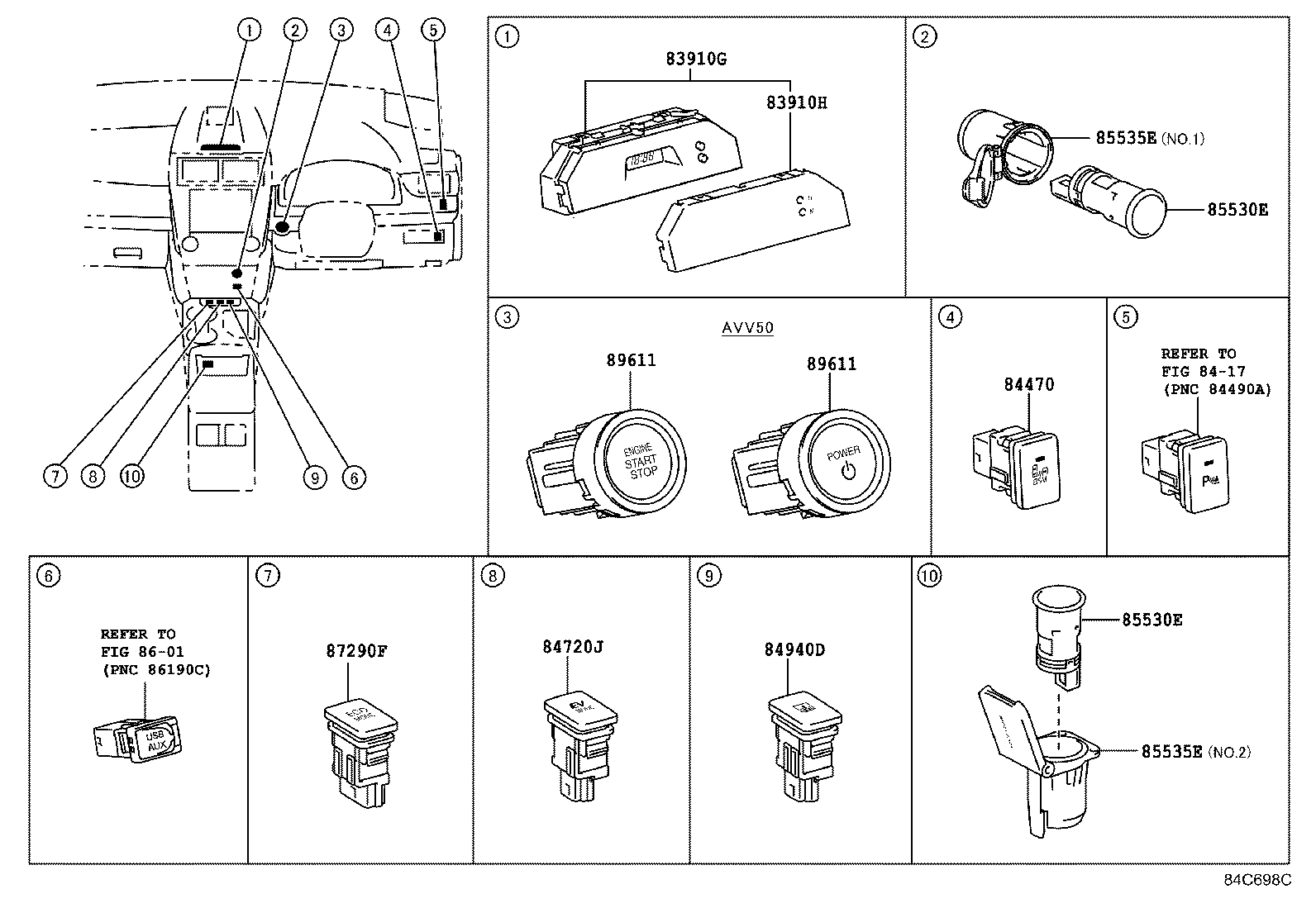

ILLUST NO. 5 OF 8(1110-1504)ASV50,AVV50..ARL
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-06240 |
ASV50..6F |
1 | ||
| 83910-06290 |
ASV50,AVV50..ARL |
1 | ||
| 83910H - LENS, CLOCK | ||||
| 8391B-06040 |
ASV50..6F |
1 | ||
| 8391B-06050 |
ASV50,AVV50..ARL |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-33021 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 84470-33020 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 84940D - SWITCH ASSY, REAR SUN SHADE | ||||
| 84940-33060 |
ASV50,AVV50,GSV50..ATRS,HBD,SPVS LIMITED PACKAGE |
1 | ||
| 84940-33061 |
ASV50,AVV50,GSV50..ATRS,HBD,SPVS LIMITED PACKAGE |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ASV50..ATRS DECONTENT PACKAGE |
1 | ||
| 85530-42010 |
ASV50,AVV50..(ATM,CVT)..(ATRS,ATRSX,GLX,HBD,SE) |
2 | ||
| 85530-42010 |
ASV50..6F |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ASV50..ATRS DECONTENT PACKAGE |
1 | ||
| 85530-42010 |
ASV50,AVV50..(ATM,CVT)..(ATRS,ATRSX,GLX,HBD,SE) |
2 | ||
| 85530-42010 |
ASV50..6F |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
ASV50..6F NO.1 |
1 | ||
| 85535-30020 |
ASV50,AVV50..ATM,CVT NO.1 |
1 | ||
| 85535-33150 |
ASV50,AVV50,GSV50..(ATM,CVT)..(ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU) NO.2 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
ASV50..6F NO.1 |
1 | ||
| 85535-30020 |
ASV50,AVV50..ATM,CVT NO.1 |
1 | ||
| 85535-33150 |
ASV50,AVV50,GSV50..(ATM,CVT)..(ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU) NO.2 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-33031 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89611-33031 |
ASV50..ATRS,ATRSX;GSV50..GD,PRD,SE,SPVS,TOU |
1 | ||
| 89611-33032 |
ASV50..ATRS,ATRSX;GSV50..GD,PRD,SE,SPVS,TOU |
1 | ||
| 89611-33032 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-33031 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89611-33031 |
ASV50..ATRS,ATRSX;GSV50..GD,PRD,SE,SPVS,TOU |
1 | ||
| 89611-33032 |
ASV50..ATRS,ATRSX;GSV50..GD,PRD,SE,SPVS,TOU |
1 | ||
| 89611-33032 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 8 OF 8(1110-1504)
DOOR,ROOF,FLOOR & LUGGAGE DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33100 |
ASV50,GSV50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84231-60070 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84231-60070 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
ASV50..6F |
1 | ||
| 84810-06050 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
ASV50..6F |
1 | ||
| 84810-06050 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84810-06050 |
ASV50..6F |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| 84810-06050 |
ASV50..6F |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D130 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D130 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-28030 |
GSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-06040 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GD,GL,GLX,HBD,SE,SPVS,TOU |
1 | ||
| 84872-48010 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-06040 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GD,GL,GLX,HBD,SE,SPVS,TOU |
1 | ||
| 84872-48010 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33080 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33080 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33080 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W021 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-33010 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88172-0W021 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-33010 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-33110 |
ASV50..ATRS LIMITED PACKAGE,LH |
1 | ||
| 89430-33120 |
ASV50..ATRS LIMITED PACKAGE,RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-33110 |
ASV50..ATRS LIMITED PACKAGE,LH |
1 | ||
| 89430-33120 |
ASV50..ATRS LIMITED PACKAGE,RH |
1 | ||
| Common parts | ||||
| 90159-T0013 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8418 | ||||
ILLUST NO. 1 OF 8(1110- )ASV50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASV50..6F |
1 | ||
| 83530-28020 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ASV50..6F |
1 | ||
| 84210-52050 |
ASV50..6F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
ASV50,GSV50..6FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06280 |
ASV50..ATRS PAPUA NEW GUINEA/FIJI SPEC |
1 | ||
| 89465-06280 |
ASV50..ARL |
1 | ||
| 89465-33560 |
ASV50..ARL |
1 | ||
| 89465-33560 |
ASV50..6F |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48190 |
ASV50..6F |
1 | ||
| 89467-48190 |
ASV50,AVV50..ATM,CVT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ASV50..6F (J) |
1 | ||
| 89615-06010 |
ASV50..6F (L) |
1 | ||
| 89615-20090 |
ASV50..6FC (J) |
1 | ||
| 89615-06010 |
ASV50..6FC (L) |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90105-A0120 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 8(1110-1504)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-04037 | ||||

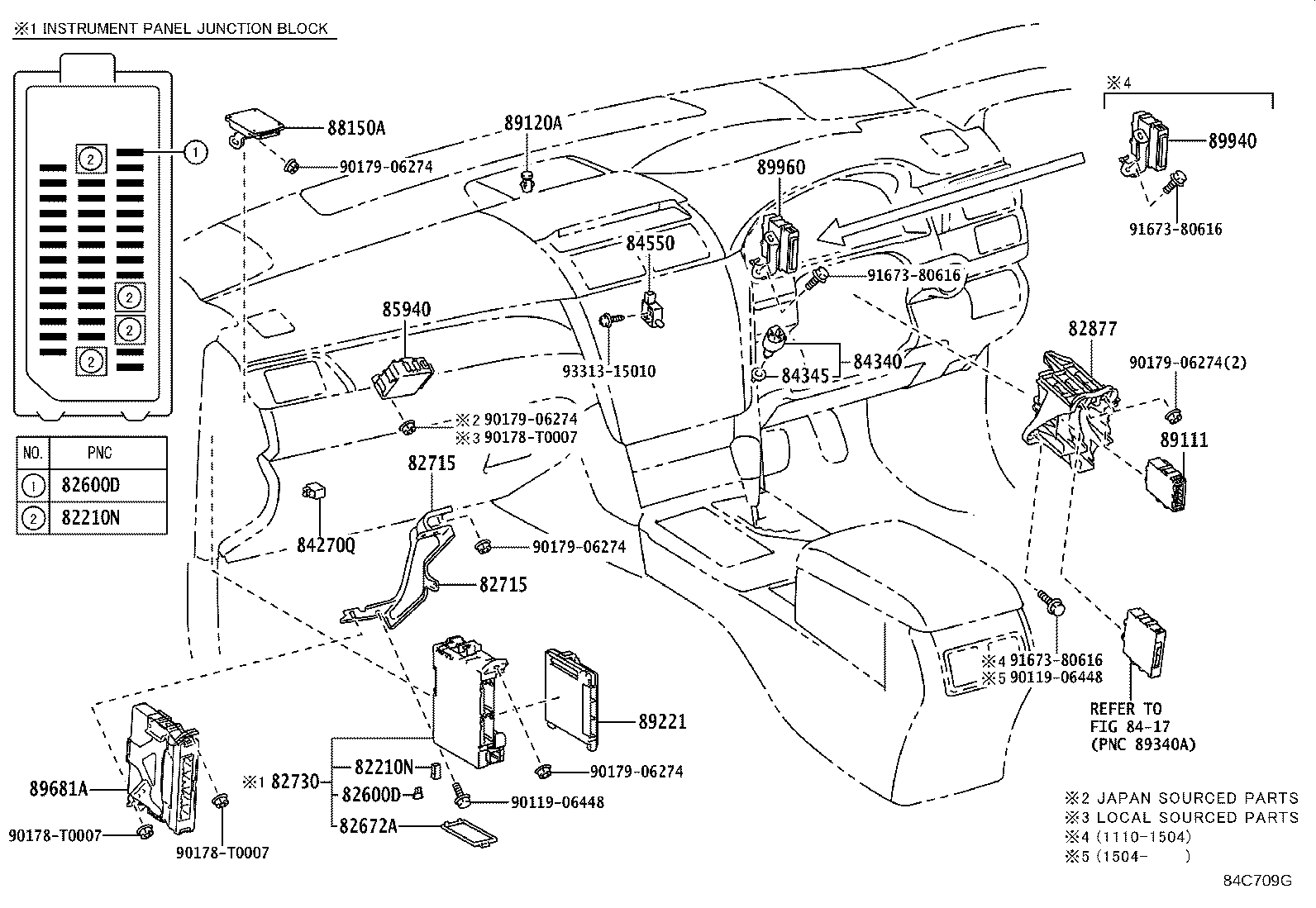

ILLUST NO. 4 OF 8(1110- )ARL
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50,AVV50,GSV50..ARL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASV50..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50,AVV50,GSV50..ARL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASV50..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ASV50,AVV50,GSV50..ARL 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASV50,AVV50,GSV50..ARL 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASV50,AVV50,GSV50..ARL 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ASV50,AVV50,GSV50..ARL 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50,AVV50,GSV50..ARL 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ASV50,AVV50,GSV50..ARL 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ASV50,AVV50,GSV50..ARL 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASV50,AVV50,GSV50..ARL 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASV50,AVV50,GSV50..ARL 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ASV50,AVV50,GSV50..ARL 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50,AVV50,GSV50..ARL 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ASV50,AVV50,GSV50..ARL 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33421 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 82672-33372 |
ASV50..6F |
1 | ||
| 82672-33371 |
ASV50..6F;ASV50,AVV50..ARL |
1 | ||
| 82672-33422 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 82672-33372 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD,SPVS |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-06570 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| 82715-06560 |
ASV50..6F |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-06570 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| 82715-06560 |
ASV50..6F |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33F42 |
ASV50,AVV50..ARL |
1 | ||
| 82730-33F60 |
ASV50..6F |
1 | ||
| 82730-33G62 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 82730-33F61 |
ASV50..6F |
1 | ||
| 82730-33G63 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 82730-33F43 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD,SPVS |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33010 |
ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS |
1 | ||
| 82877-33010 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
ASV50..6F |
1 | ||
| 90987-02027 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ASV50..6F |
1 | ||
| 84340-19025 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 84345-51010 |
ASV50..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ASV50..6F |
1 | ||
| 84550-47010 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33150 |
ASV50,AVV50,GSV50..ATRS,HBD,SPVS LIMITED PACKAGE |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-33060 |
ASV50,GSV50..ATRS,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 89111-33130 |
ASV50,GSV50..ATRS,PRD,SPVS LIMITED PACKAGE |
1 | ||
| 89111-33120 |
ASV50..ATRS LIMITED PACKAGE&AUDIO-AVN 8SPEAKER DIGITAL AUDIO BROADCASTING |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
ASV50..ATRS DECONTENT PACKAGE |
1 | ||
| 89121-50020 |
ASV50,AVV50,GSV50..(ATM,CVT)..(ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-33410 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 89221-33420 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD,SPVS |
1 | ||
| 89221-33500 |
ASV50..6F |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-33230 |
ASV50,AVV50..ATRS,HBD LIMITED PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| Linked diagrams | ||||
| 8417 | ||||

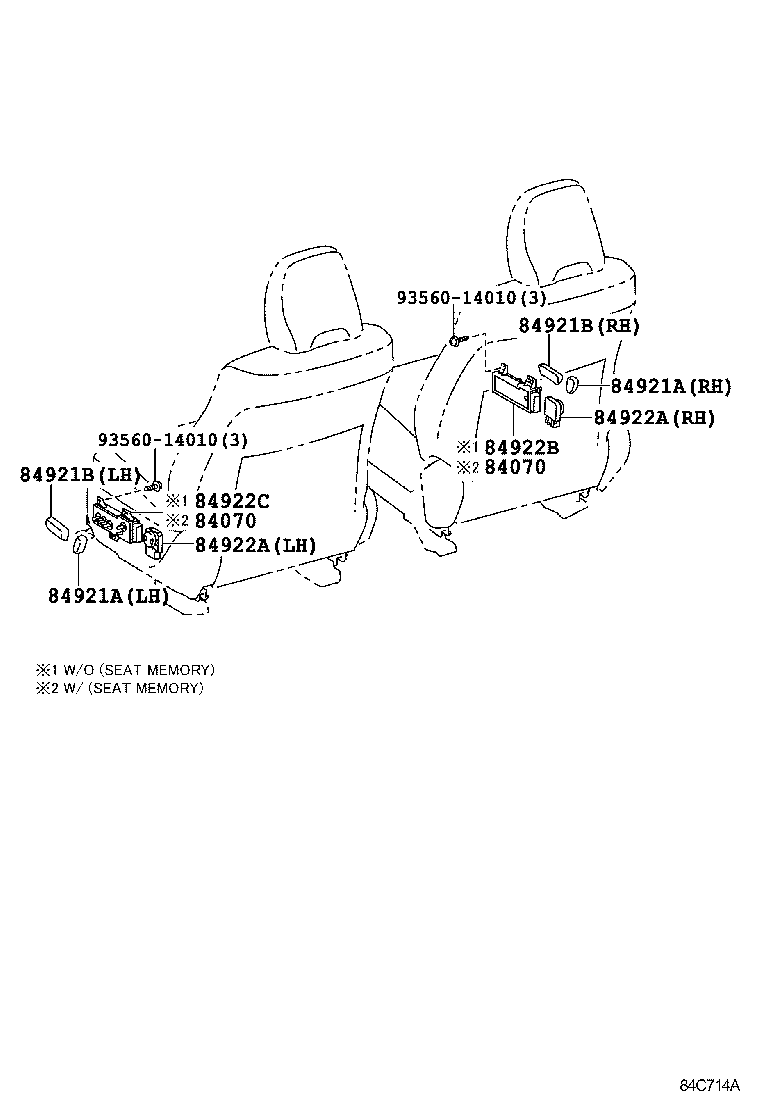

ILLUST NO. 7 OF 8(1110- )ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-33110 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84070 - COMPUTER & SWITCH ASSY, POSITION CONTROL | ||||
| 84070-33110 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60170C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84921-60170A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60170A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84921-60170C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84921-60180A0 |
ASV50..ATRS LIMITED PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
ASV50..ATRS LIMITED PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60170C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84921-60170A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60170A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84921-60170C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84921-60180A0 |
ASV50..ATRS LIMITED PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60180C0 |
ASV50..ATRS LIMITED PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60150C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84921-60150A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60200A0 |
ASV50..ATRS LIMITED PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60150C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84921-60150A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84921-60200C0 |
ASV50..ATRS LIMITED PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60150C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84921-60150A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84921-60200A0 |
ASV50..ATRS LIMITED PACKAGE,IVORY,TRIM0#,LH |
1 | ||
| 84921-60150C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84921-60150A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84921-60200C0 |
ASV50..ATRS LIMITED PACKAGE,BLACK,TRIM2#,LH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84920-60090C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84920-60090C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84920-60090A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090A0 |
ASV50..ATRS DECONTENT PACKAGE,IVORY,TRIM0#,RH |
1 | ||
| 84920-60090C0 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS BLACK,TRIM2#,RH |
1 | ||
| 84920-60090C0 |
ASV50..ATRS DECONTENT PACKAGE,BLACK,TRIM2#,RH |
1 | ||
| 84920-60090A0 |
ASV50,AVV50,GSV50..ATRS,HBD,PRD IVORY,TRIM0#,RH |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-06150 |
ASV50..ATRS DECONTENT PACKAGE |
1 | ||
| 84922-06150 |
ASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06160 |
ASV50..ATRS LIMITED PACKAGE |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||

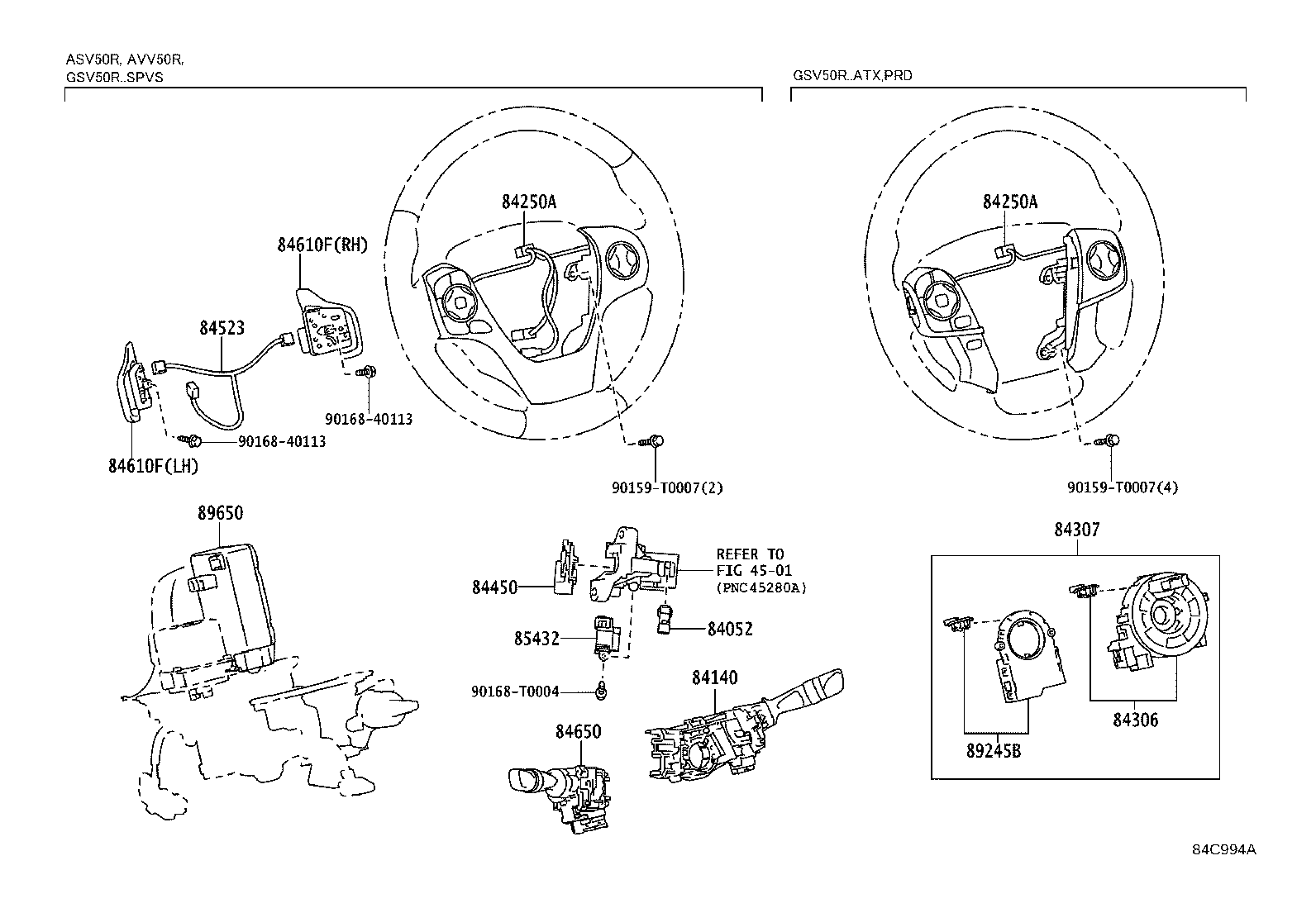

ILLUST NO. 6 OF 8(1110- )ARL
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-06580 |
ASV50,GSV50..ATRS,ATRSX,PRD,SPVS |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-06300 |
ASV50..ATRS LIMITED PACKAGE&AUDIO-AVN 8SPEAKER DIGITAL AUDIO BROADCASTING |
1 | ||
| 84250-06350 |
ASV50..6FC..(ATRS,ATRSX,GLX,SE) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-06300 |
ASV50..ATRS LIMITED PACKAGE&AUDIO-AVN 8SPEAKER DIGITAL AUDIO BROADCASTING |
1 | ||
| 84250-06350 |
ASV50..6FC..(ATRS,ATRSX,GLX,SE) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-33080 |
GSV50;ASV50,AVV50..ARL |
1 | ||
| 84306-39015 |
GSV50;ASV50,AVV50..ARL |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-33070 |
GSV50;ASV50,AVV50..ARL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL),(L) |
1 | ||
| 84450-52020 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL),(J) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-42010 |
ASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS) |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-22010 |
ASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS) LH |
1 | ||
| 84610-22020 |
ASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS) RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-22010 |
ASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS) LH |
1 | ||
| 84610-22020 |
ASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS) RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-06280 |
ASV50,AVV50,GSV50..ATRS,HBD,SPVS LIMITED PACKAGE |
1 | ||
| 84652-06270 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD,SPVS |
1 | ||
| 84652-06260 |
ASV50..6F |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-0D010 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 85432-06020 |
ASV50..ATRS DECONTENT PACKAGE&STARTING SYSTEM-ROTARY(MECHANICAL) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-39015 |
GSV50;ASV50,AVV50..ARL |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-06120 |
ASV50,GSV50..ALT,ATRS,ATX,PRD |
1 | ||
| Common parts | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 8(1110-1504)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2ARFE..ASV50..6F |
1 | ||
| 28300-28010 |
2ARFE,2GRFE..ASV50,GSV50..6FC |
1 | ||
| 28300-21020 |
2ARFE,2GRFE..ASV50,GSV50 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASV50,AVV50,GSV50..ATM,CVT 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ASV50,AVV50,GSV50..ATM,CVT 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASV50,AVV50,GSV50..ATM,CVT 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50,AVV50,GSV50..ATM,CVT 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50,AVV50,GSV50..ATM,CVT 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASV50,AVV50,GSV50..ATM,CVT 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ASV50,AVV50,GSV50..ATM,CVT 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASV50,AVV50,GSV50..ATM,CVT 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ASV50,AVV50,GSV50..ATM,CVT 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASV50,AVV50,GSV50..ATM,CVT 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50,AVV50,GSV50..ATM,CVT 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50,AVV50,GSV50..ATM,CVT 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASV50,AVV50,GSV50..ATM,CVT 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ASV50,AVV50,GSV50..ATM,CVT 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASV50,AVV50,GSV50..ATM,CVT 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASV50,AVV50,GSV50..ATM,CVT 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASV50,AVV50,GSV50..ATM,CVT 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50,AVV50,GSV50..ATM,CVT 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50,AVV50,GSV50..ATM,CVT 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASV50,AVV50,GSV50..ATM,CVT 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ASV50,AVV50,GSV50..ATM,CVT 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33090 |
ASV50..6F |
1 | ||
| 82610-33090 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 82616-58010 |
ASV50..6F |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33050 |
ASV50..6F |
1 | ||
| 82620-33050 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33070 |
ASV50..6F |
1 | ||
| 82620-33070 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33060 |
ASV50..6F |
1 | ||
| 82620-33060 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33150 |
ASV50..6F |
1 | ||
| 82641-33150 |
ASV50,AVV50..ATM,CVT |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
ASV50..6F |
1 | ||
| 82660-48030 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50..6F |
1 | ||
| 82660-33030 |
ASV50..6FC |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50..6F |
1 | ||
| 82660-33030 |
ASV50..6FC |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33370 |
ASV50..6FC |
1 | ||
| 82662-33370 |
ASV50..6F |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33110 |
ASV50..6FC;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82663-33110 |
ASV50..6F |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33170 |
ASV50..6F |
1 | ||
| 82663-33170 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33190 |
ASV50..ATRS,ATRSX,GLX,SE |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33030 |
ASV50..6FC;GSV50..ATX,GD,PRD,SPVS |
1 | ||
| 82740-33030 |
ASV50..6F |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ASV50..6F |
1 | ||
| 90987-02025 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87009 |
ASV50..6F |
1 | ||
| 90080-87009 |
ASV50..6FC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 90987-02027 |
ASV50..6F |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ASV50,AVV50,GSV50..ARL |
1 | ||
| Common parts | ||||
| 90119-06833 | ||||
| 90178-06018 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
