Toyota Camry/aurion/hv(arl) ASV50 INTERIOR LAMP

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-35020A1	ASV50,AVV50,GSV50..ALT,ATRS,GL,HBD,TOU IVORY,TRIM0#	10/2011 - 04/2015	1
81240-35020B2	ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,SPVS GRAY,TRIM2#	10/2011 - 04/2015	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	ASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,SPVS,TOU) 12V 8W	10/2011 - 04/2015	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020	ASV50..6F	10/2011 - 11/2012	1
81330-12020	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020	ASV50,AVV50,GSV50..ATM,CVT 12V 3.8W	10/2011 - 04/2015	1
90981-11020	ASV50..6F 12V 3.8W	10/2011 - 11/2012	1
81340 - LAMP ASSY, VANITY
81340-30100A1	ASV50,AVV50..ATRS,HBD MOON ROOF-WITH,IVORY,TRIM0#	10/2011 - 07/2013	2
81340-30100B1	ASV50,AVV50..ATRS,ATRSX,HBD MOON ROOF-WITH,GRAY,TRIM2#	10/2011 - 07/2013	2
81340-30100A1	ASV50,AVV50..ATRS,HBD IVORY,TRIM0#	07/2013 - 04/2015	2
81340-30100B1	ASV50,AVV50..ARL GRAY,TRIM2#	07/2013 - 04/2015	2
81340B - BULB (FOR VANITY LAMP)
90981-11062	ASV50,AVV50..ATRS,ATRSX,HBD 12V 8W,MOON ROOF-WITH	10/2011 - 07/2013	2
90981-11062	ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD 12V 8W	07/2013 - 04/2015	2
81360T - LAMP ASSY, SPOT
81360-33030A0	ASV50,AVV50,GSV50..ATRS,HBD,TOU MOON ROOF-WITH,IVORY,TRIM0#	10/2011 - 04/2015	1
81360-33030B0	ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,SPVS MOON ROOF-WITH,GRAY,TRIM2#	10/2011 - 04/2015	1
81360U - BULB, SPOT LAMP
90981-11062	ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,SPVS,TOU MOON ROOF-WITH	10/2011 - 04/2015	2
81360U - BULB, SPOT LAMP
90981-11062	ASV50,AVV50,GSV50..ATRS,ATRSX,HBD,SPVS,TOU MOON ROOF-WITH	10/2011 - 04/2015	2
81936C - BULB ASSY
81936-28010	ASV50..6F	10/2011 - 11/2012	2
81936-28010	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	2
81936C - BULB ASSY
81936-28010	ASV50..6F	10/2011 - 11/2012	2
81936-28010	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	2
81936C - BULB ASSY
81936-28010	ASV50..6F	10/2011 - 11/2012	2
81936-28010	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	2
81936C - BULB ASSY
81936-28010	ASV50..6F	10/2011 - 11/2012	2
81936-28010	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	2

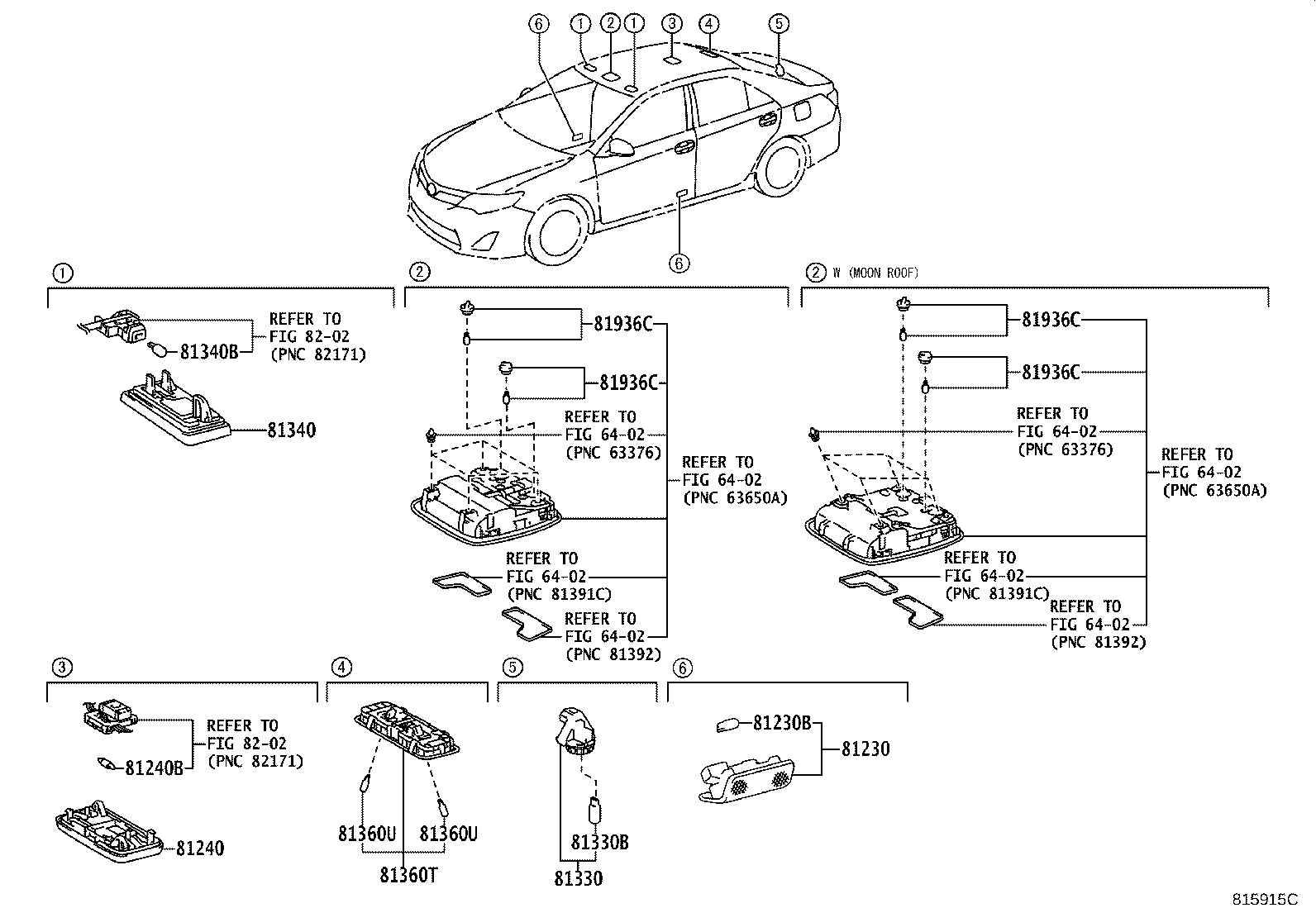

Linked diagrams
6402
8202

ASV50R-DETNKQ (2011)

(1110- )
