ASV50R-DETDKQ (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Apr 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )

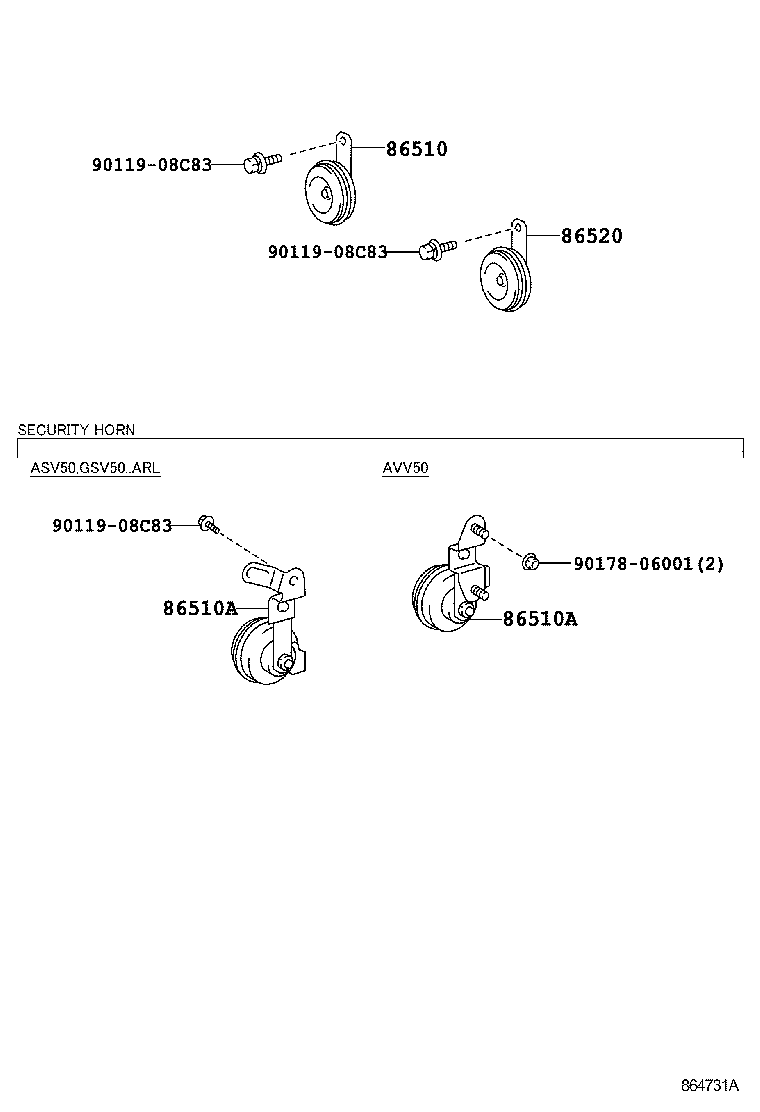

Click highlighted areas on diagram

diagram 86510 86510A 86510A 86520 9011908C83 9011908C83 9011908C83 9017806001
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-06120

ASV50..6F

 1
86510A - HORN ASSY, SECURITY
86560-06150

ASV50,GSV50..ARL

 1
86510A - HORN ASSY, SECURITY
86560-06150

ASV50,GSV50..ARL

 1
86520 - HORN ASSY, LOW PITCHED
86520-06110

ASV50..6F

 1
86520-06110

ASV50,AVV50,GSV50..ATM,CVT

 1
Common parts
90119-08C83
90178-06001
