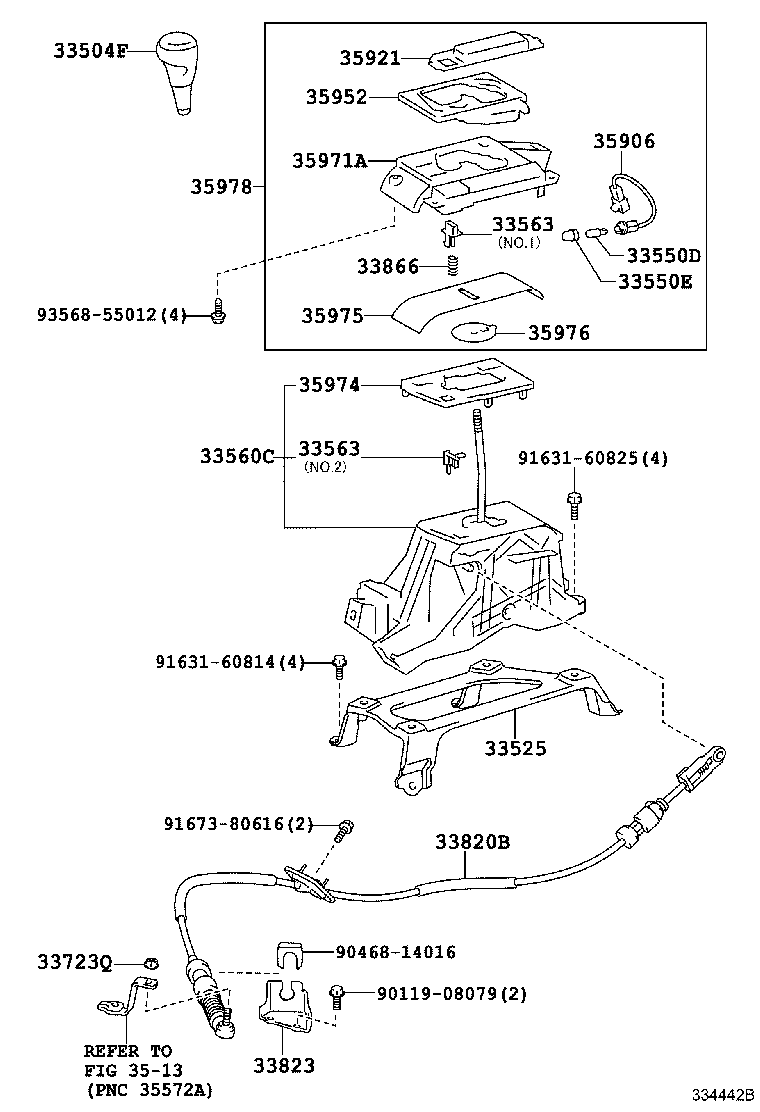

Toyota Camry/aurion/hv(arl) ASV50 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-06220C1	ASV50..ALT BLACK,TRIM2#	10/2011 - 04/2015	1
33504-06300B0	ASV50..ALT RZ PACKAGE,MD.SILVER & BLACK,TRIM2#	05/2014 - 04/2015	1
33525 - SUPPORT, SHIFT LEVER
58123-06060	ASV50,AVV50,GSV50..ARL	10/2011 - 04/2015	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018	ASV50,AVV50,GSV50..ATM,CVT 12V 1.2W W/O SOCKET	10/2011 - 04/2015	1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
33560C - LEVER ASSY, SHIFT, LOWER
33560-33240	ASV50,GSV50..ALT,ATX	10/2011 - 04/2015	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-33280	ASV50,AVV50,GSV50..ARL NO.2	10/2011 - 04/2015	1
33563-06260	ASV50,AVV50..ARL NO.1	10/2011 - 04/2015	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-33280	ASV50,AVV50,GSV50..ARL NO.2	10/2011 - 04/2015	1
33563-06260	ASV50,AVV50..ARL NO.1	10/2011 - 04/2015	1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06430	ASV50,GSV50..6FC	10/2011 - 04/2015	1
33820-06420	ASV50..6F	10/2011 - 11/2012	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33050	ASV50,GSV50..6FC	10/2011 - 04/2015	1
33866 - SPRING, SHIFT LOCK RELEASE
33866-06140	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-06220	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-06240	ASV50..ARL	10/2011 - 04/2015	1
35952 - LENS, POSITION INDICATOR
35952-06160	ASV50,GSV50..ARL	10/2011 - 04/2015	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-06200	ASV50,AVV50,GSV50..ARL	10/2011 - 04/2015	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-33170	ASV50,AVV50,GSV50..ARL	10/2011 - 04/2015	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-06140	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-06150	ASV50,AVV50,GSV50..ATM,CVT	10/2011 - 04/2015	1
35978 - INDICATOR, SHIFT POSITION
35978-06100	ASV50..ARL	10/2011 - 04/2015	1
Common parts
90119-08079
90468-14016
91631-60814
91631-60825
91673-80616
93568-55012
Linked diagrams
3513

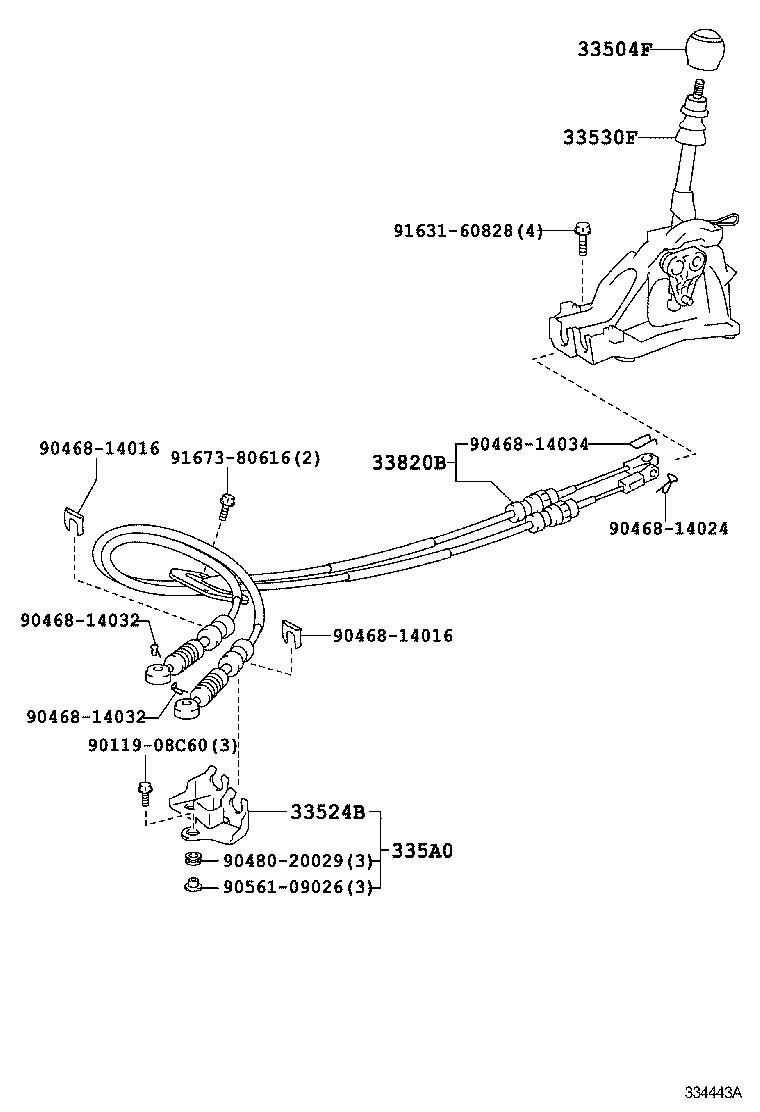

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-06220C1	ASV50..ALT BLACK,TRIM2#	10/2011 - 04/2015	1
33504-06300B0	ASV50..ALT RZ PACKAGE,MD.SILVER & BLACK,TRIM2#	05/2014 - 04/2015	1
33524B - BRACKET, CONTROL CABLE
33524-33040	ASV50..6F	10/2011 - 11/2012	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-33150	ASV50..6F	10/2011 - 11/2012	1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-33010	ASV50..6F	10/2011 - 11/2012	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-06430	ASV50,GSV50..6FC	10/2011 - 04/2015	1
33820-06420	ASV50..6F	10/2011 - 11/2012	1
Common parts
90119-08C60
90468-14016
90468-14024
90468-14032
90468-14034
90480-20029
90561-09026
91631-60828
91673-80616

ASV50R-DETDKQ (2011)

(1110- )6FC

(1110- )6F
