ASV50L-DETSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Apr 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1110-1504)2ARFE

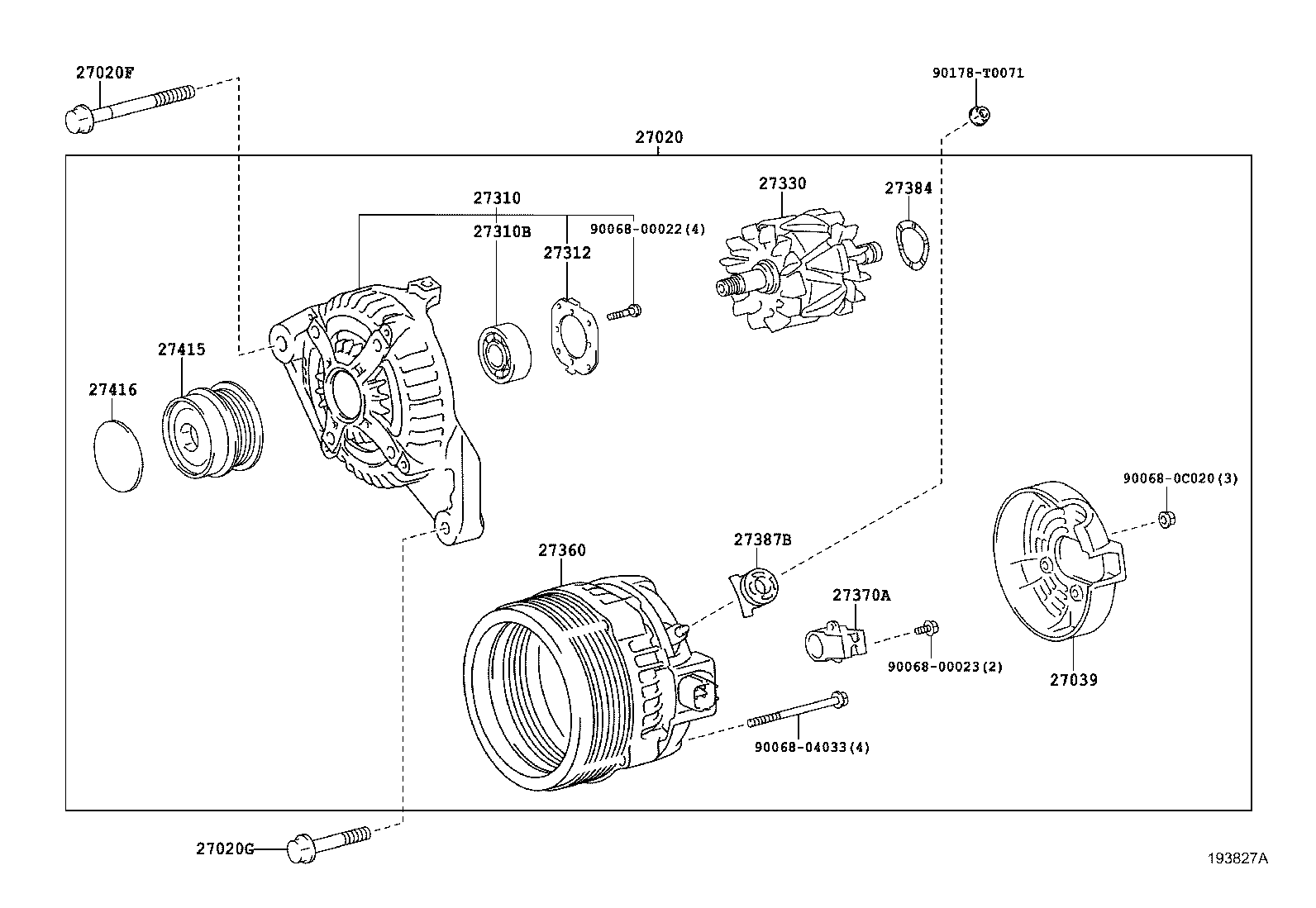

Click highlighted areas on diagram

12V 100A

diagram 27020 27020F 27020G 27039 27310 27310B 27312 27330 27360 27370A 27384 27387B 27415 27416 9006800022 9006800023 9006804033 900680C020 90178T0071
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0V090

2ARFE..ASV50..6FC

12V 100A

 1
27060-0V090

2ARFE..ASV50..6F

12V 100A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-10562

2ARFE..ASV50..6F

 1
90105-10562

2ARFE..ASV50..6FC

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90105-T0079

2ARFE..ASV50..6FC

 1
90105-T0079

2ARFE..ASV50..6F

 1
27039 - COVER, ALTERNATOR REAR END
27039-0P070

2ARFE..ASV50..6F

 1
27039-0P070

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0V010

2ARFE..ASV50..6F

 1
27310-0V010

2ARFE..ASV50..6FC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10033

2ARFE..ASV50..6F

 1
90068-10033

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27312 - PLATE, RETAINER
27312-0C020

2ARFE..ASV50..6F

 1
27312-0C020

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0V090

2ARFE..ASV50..6F

 1
27330-0V090

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27360 - COIL ASSY, ALTERNATOR
27360-0V010

2ARFE..ASV50..6F

 1
27360-0V010

2ARFE..ASV50..6FC

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-0M040

2ARFE..ASV50..6F

 1
27370-0M040

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27384 - WASHER
27384-0C020

2ARFE..ASV50..6F

 1
27384-0C020

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0C020

2ARFE,2GRFE..ASV50,GSV50..6FC

 1
27387-0C020

2ARFE..ASV50..6F

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W020

2ARFE..ASV50

 1
27415-0W021

2ARFE..ASV50

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2ARFE,2GRFE..ASV50,GSV50

 1
Common parts
90068-00022
90068-00023
90068-04033
90068-0C020
90178-T0071
