ASV50L-DETNKV (2015)
Toyota Camry/Aurion/Hv(Arl)

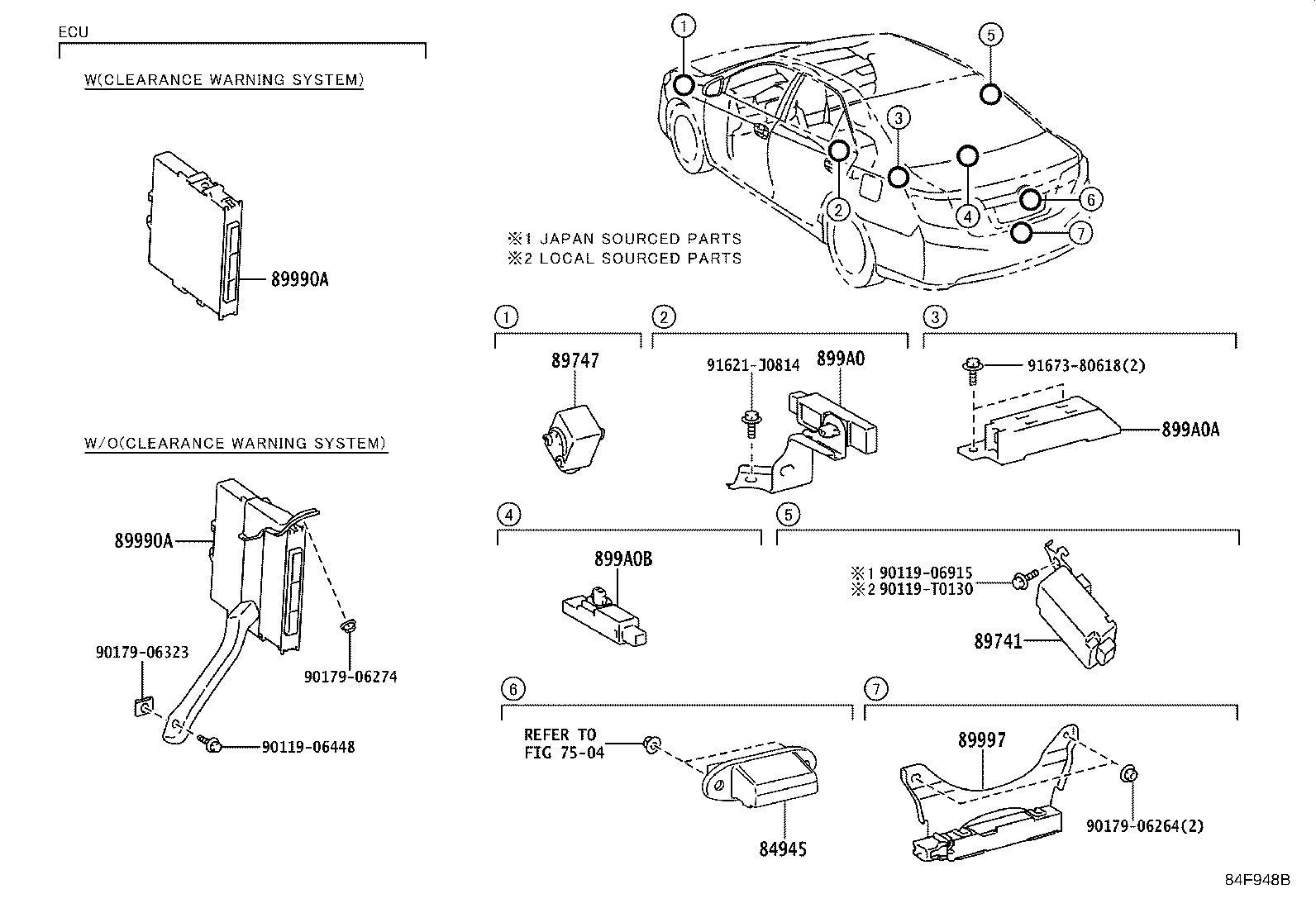

ILLUST NO. 2 OF 2(1504- )GD,GLX,SE,TOU
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-33030 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-33501 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 89741-33501 |
ASV50..6F..(GLX,SE) |
1 | ||
| 89740-33260 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89741-33501 |
ASV50..6FC..(GLX,SE) |
1 | ||
| 89741-33501 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 89740-33360 |
ASV50..6FC..(GLX,SE) QATAR SPEC&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89740-33261 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89741-33590 |
ASV50..GL,GLX |
1 | ||
| 89741-33590 |
ASV50..GLX DEST.PACKAGE (EXC/ERP.)-UAE SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89741-33590 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89741-33590 |
ASV50..GLX DEST.PACKAGE (EXC/ERP.)-IRAN/YEMEN SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89741-33590 |
ASV50..GLX DEST.PACKAGE (EXC/ERP.)-QATAR SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89740-33360 |
ASV50..GLX DEST.PACKAGE (EXC/ERP.)-QATAR SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
ASV50..6F..(GLX,SE) |
1 | ||
| 89747-30040 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89747-30040 |
GSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD |
1 | ||
| 89747-30040 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 89747-30040 |
ASV50..6FC..(GLX,SE) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 89747-30040 |
ASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GD,GLX,HBD,PRD,SE,SPVS,TOU) |
1 | ||
| 89747-30040 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-33290 |
ASV50..6FC..(GLX,SE) VSC-WITH&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-33210 |
ASV50..GLX VSC-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33450 |
ASV50..GLX,SE WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD) |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33451 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-33290 |
ASV50..6FC..(GLX,SE) VSC-WITH&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89990-33210 |
ASV50..GLX VSC-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33450 |
ASV50..GLX,SE WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD) |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33211 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89990-33451 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 89990-33210 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY)&AUDIO-AVN(*BT) & 6SPEAKER |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-33020 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 89997-33020 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-33010 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 899A0-33010 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-33020 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| 899A0-33020 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-47010 |
ASV50..6FC..(GLX,SE) STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 899A0-47010 |
ASV50..GLX WIRELESS DOOR LOCK-W(SMART ENTRY) |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 91621-J0814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 7504 | ||||
