ASV50L-DETNKV (2011)
Toyota Camry/Aurion/Hv(Arl)

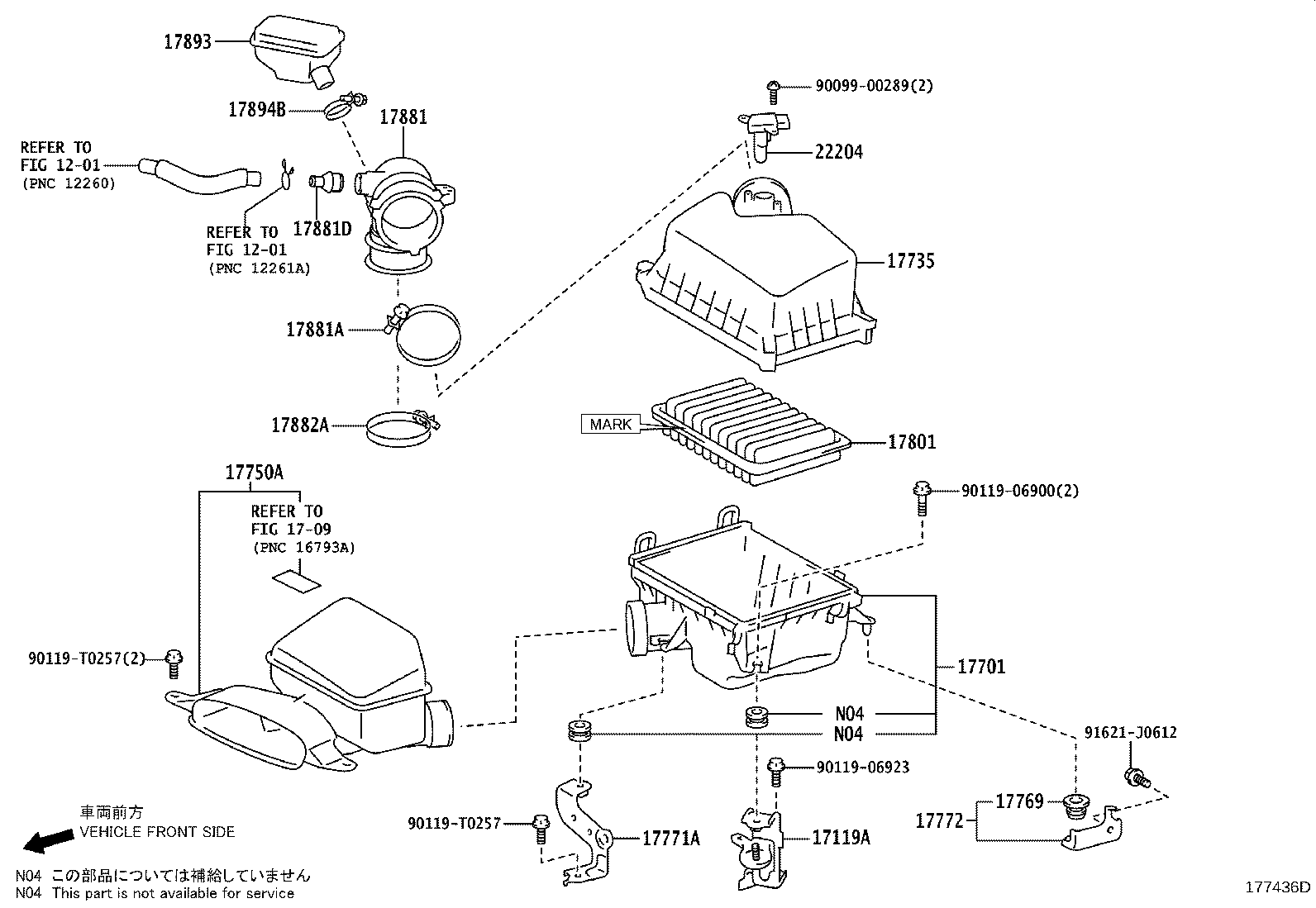

(1110- )2ARFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17119-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17701-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17735-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0V050 |
2ARFE..ASV50..6F |
1 | ||
| 17750-0V050 |
2ARFE..ASV50..6FC |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 90480-18006 |
2ARFE..ASV50..6F |
1 | ||
| 90480-18006 |
2ARFE..ASV50..6FC |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0V030 |
2ARFE..ASV50..6FC |
1 | ||
| 17771-0V030 |
2ARFE..ASV50..6F |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-0V030 |
2ARFE..ASV50..6FC |
1 | ||
| 17772-0V030 |
2ARFE..ASV50..6F |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0H030 |
2ARFE..ASV50..6FC MARK 17801-0H030 |
1 | ||
| 17801-28030 |
2ARFE..ASV50..6F MARK 17801-28030 |
1 | ||
| 17801-0H030 |
2ARFE..ASV50..6F MARK 17801-0H030 |
1 | ||
| 17801-28030 |
2ARFE..ASV50..6FC MARK 17801-28030 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0V100 |
2ARFE..ASV50..6FC |
1 | ||
| 17881-0V100 |
2ARFE..ASV50..6F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2ARFE..ASV50..6F |
1 | ||
| 96111-10880 |
2AR#..ASV50,AVV50..ATM,CVT |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 90904-06008 |
2ARFE..ASV50..6F |
1 | ||
| 90904-06008 |
2AR#..ASV50,AVV50..ATM,CVT |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
2ARFE..ASV50..6FC |
1 | ||
| 96111-10850 |
2ARFE..ASV50..6F |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0V080 |
2ARFE..ASV50..6F |
1 | ||
| 17893-0V080 |
2ARFE..ASV50..6FC |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10430 |
2AR#..ASV50,AVV50..ATM,CVT |
1 | ||
| 96111-10430 |
2ARFE..ASV50..6F |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
2ARFE..ASV50..6F (J) |
1 | ||
| 22204-0V020 |
2AR#..ASV50,AVV50..ATM,CVT (L) |
1 | ||
| 22204-28010 |
2AR#..ASV50,AVV50..ATM,CVT (J) |
1 | ||
| 22204-0V020 |
2ARFE..ASV50..6F (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06923 | ||||
| 90119-T0257 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1709 | ||||

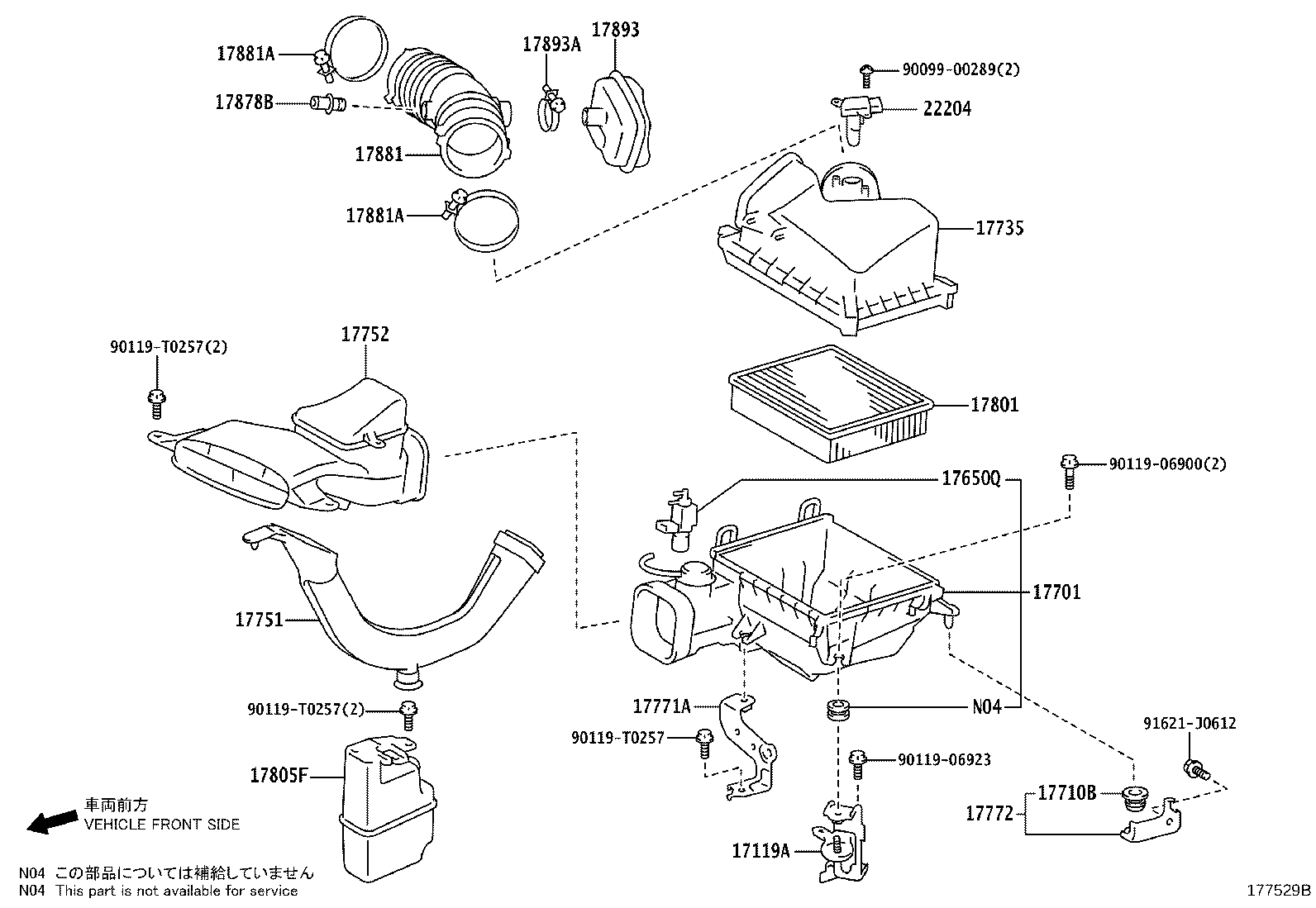

(1202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17119-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17701-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0V040 |
2ARFE..ASV50..6F |
1 | ||
| 17735-0V040 |
2ARFE..ASV50..6FC |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0V030 |
2ARFE..ASV50..6FC |
1 | ||
| 17771-0V030 |
2ARFE..ASV50..6F |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-0V030 |
2ARFE..ASV50..6FC |
1 | ||
| 17772-0V030 |
2ARFE..ASV50..6F |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0H030 |
2ARFE..ASV50..6FC MARK 17801-0H030 |
1 | ||
| 17801-28030 |
2ARFE..ASV50..6F MARK 17801-28030 |
1 | ||
| 17801-0H030 |
2ARFE..ASV50..6F MARK 17801-0H030 |
1 | ||
| 17801-28030 |
2ARFE..ASV50..6FC MARK 17801-28030 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0V100 |
2ARFE..ASV50..6FC |
1 | ||
| 17881-0V100 |
2ARFE..ASV50..6F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2ARFE..ASV50..6F |
1 | ||
| 96111-10880 |
2AR#..ASV50,AVV50..ATM,CVT |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
2ARFE..ASV50..6F |
1 | ||
| 96111-10880 |
2AR#..ASV50,AVV50..ATM,CVT |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0V080 |
2ARFE..ASV50..6F |
1 | ||
| 17893-0V080 |
2ARFE..ASV50..6FC |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
2ARFE..ASV50..6F (J) |
1 | ||
| 22204-0V020 |
2AR#..ASV50,AVV50..ATM,CVT (L) |
1 | ||
| 22204-28010 |
2AR#..ASV50,AVV50..ATM,CVT (J) |
1 | ||
| 22204-0V020 |
2ARFE..ASV50..6F (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06923 | ||||
| 90119-T0257 | ||||
| 91621-J0612 | ||||
