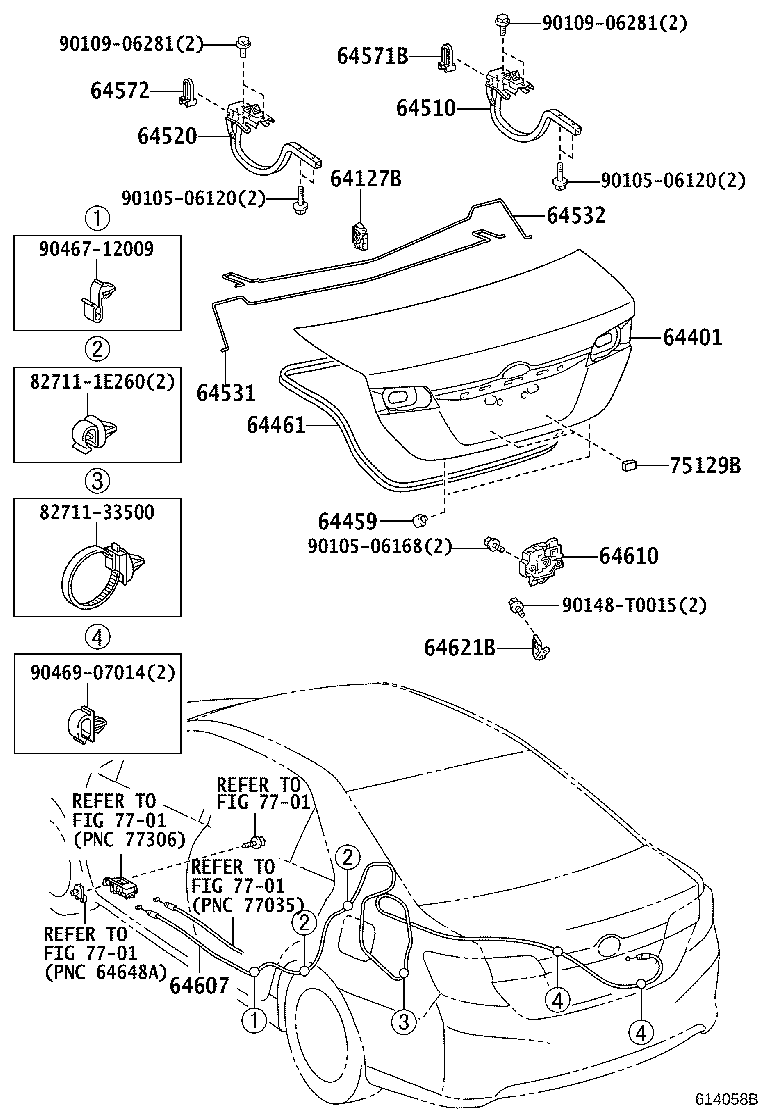

ASV50L-DETDKV (2011)
Toyota Camry/Aurion/Hv(Arl)
(1110- )GCC
W(*WDL OR SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-06071 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64127-06071 |
ASV50..6F |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-06770 |
ASV50..6F..GL |
1 | ||
| 64401-06660 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64401-06660 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64401-06770 |
ASV50..6FC..GL |
1 | ||
| 64401-06D20 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64401-06D30 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)&WIRELESS DOOR LOCK-WITH |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09116 |
ASV50..6F |
2 | ||
| 90541-09116 |
ASV50,AVV50..ATM,CVT |
2 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09116 |
ASV50..6F |
2 | ||
| 90541-09116 |
ASV50,AVV50..ATM,CVT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-06120 |
ASV50..6F |
1 | ||
| 64461-06120 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,TOU |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-06110 |
ASV50,AVV50,GSV50 |
1 | ||
| 64510-06111 |
ASV50,AVV50,GSV50 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64510-06111 |
ASV50,AVV50,GSV50 |
1 | ||
| 64510-06110 |
ASV50,AVV50,GSV50 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-06211 |
ASV50..6F..(GL,GLX) |
1 | ||
| 64531-06211 |
ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD) |
1 | ||
| 64531-06221 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-06231 |
ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD) |
1 | ||
| 64532-06231 |
ASV50..6F..(GL,GLX) |
1 | ||
| 64532-06241 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-33040 |
ASV50..6F |
1 | ||
| 64571-33040 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64571-33040 |
ASV50..6F |
1 | ||
| 64571-33040 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-06240 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64607-06240 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64607-06250 |
ASV50..6FC..GL |
1 | ||
| 64607-06250 |
ASV50..6F..GL |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-33160 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64600-33160 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64610-33100 |
ASV50..6FC..GL |
1 | ||
| 64610-33100 |
ASV50..6F..GL |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-33030 |
ASV50..6F |
1 | ||
| 64621-33030 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-YC010 |
ASV50..6F |
2 | ||
| 75129-YC010 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-33500 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-06281 | ||||
| 90148-T0015 | ||||
| 90467-12009 | ||||
| Linked diagrams | ||||
| 7701 | ||||

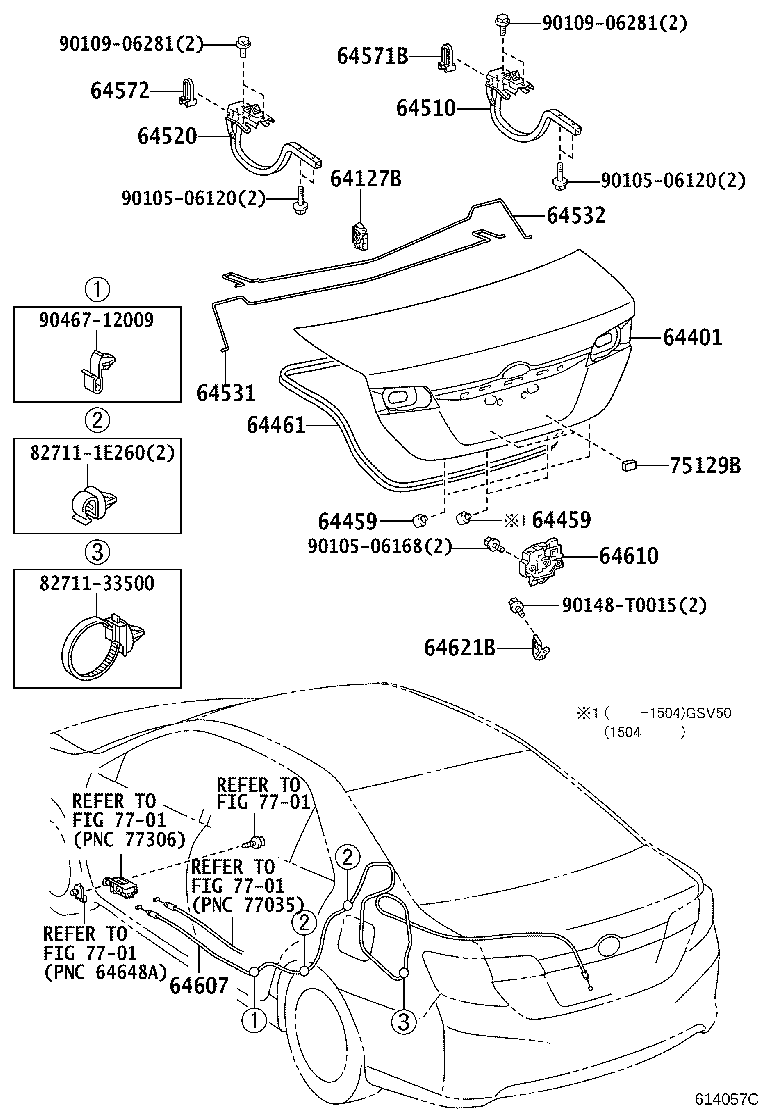

(1110-1504)GL
W/O(*WDL OR SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-06071 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64127-06071 |
ASV50..6F |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-06770 |
ASV50..6F..GL |
1 | ||
| 64401-06660 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64401-06660 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64401-06770 |
ASV50..6FC..GL |
1 | ||
| 64401-06D20 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64401-06D30 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE)&WIRELESS DOOR LOCK-WITH |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09116 |
ASV50..6F |
2 | ||
| 90541-09116 |
ASV50,AVV50..ATM,CVT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-06120 |
ASV50..6F |
1 | ||
| 64461-06120 |
ASV50,AVV50..ATM,CVT;GSV50..ATX,GD,PRD,TOU |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-06110 |
ASV50,AVV50,GSV50 |
1 | ||
| 64510-06111 |
ASV50,AVV50,GSV50 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64510-06111 |
ASV50,AVV50,GSV50 |
1 | ||
| 64510-06110 |
ASV50,AVV50,GSV50 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-06211 |
ASV50..6F..(GL,GLX) |
1 | ||
| 64531-06211 |
ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD) |
1 | ||
| 64531-06221 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-06231 |
ASV50,AVV50..(ATM,CVT)..(ALT,ATRS,GL,GLX,HBD) |
1 | ||
| 64532-06231 |
ASV50..6F..(GL,GLX) |
1 | ||
| 64532-06241 |
ASV50..GL REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=LIP TYPE) |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-33040 |
ASV50..6F |
1 | ||
| 64571-33040 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64571-33040 |
ASV50..6F |
1 | ||
| 64571-33040 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-06240 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64607-06240 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64607-06250 |
ASV50..6FC..GL |
1 | ||
| 64607-06250 |
ASV50..6F..GL |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-33160 |
ASV50..6F..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64600-33160 |
ASV50..6FC..GL WIRELESS DOOR LOCK-WITH |
1 | ||
| 64610-33100 |
ASV50..6FC..GL |
1 | ||
| 64610-33100 |
ASV50..6F..GL |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-33030 |
ASV50,AVV50,GSV50..ATM,CVT |
1 | ||
| 64621-33030 |
ASV50..6F |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-YC010 |
ASV50..6F |
2 | ||
| 75129-YC010 |
ASV50,AVV50,GSV50..ATM,CVT |
2 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-33500 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-06281 | ||||
| 90148-T0015 | ||||
| 90467-12009 | ||||
| 90469-07014 | ||||
| Linked diagrams | ||||
| 7701 | ||||
