ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1110- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

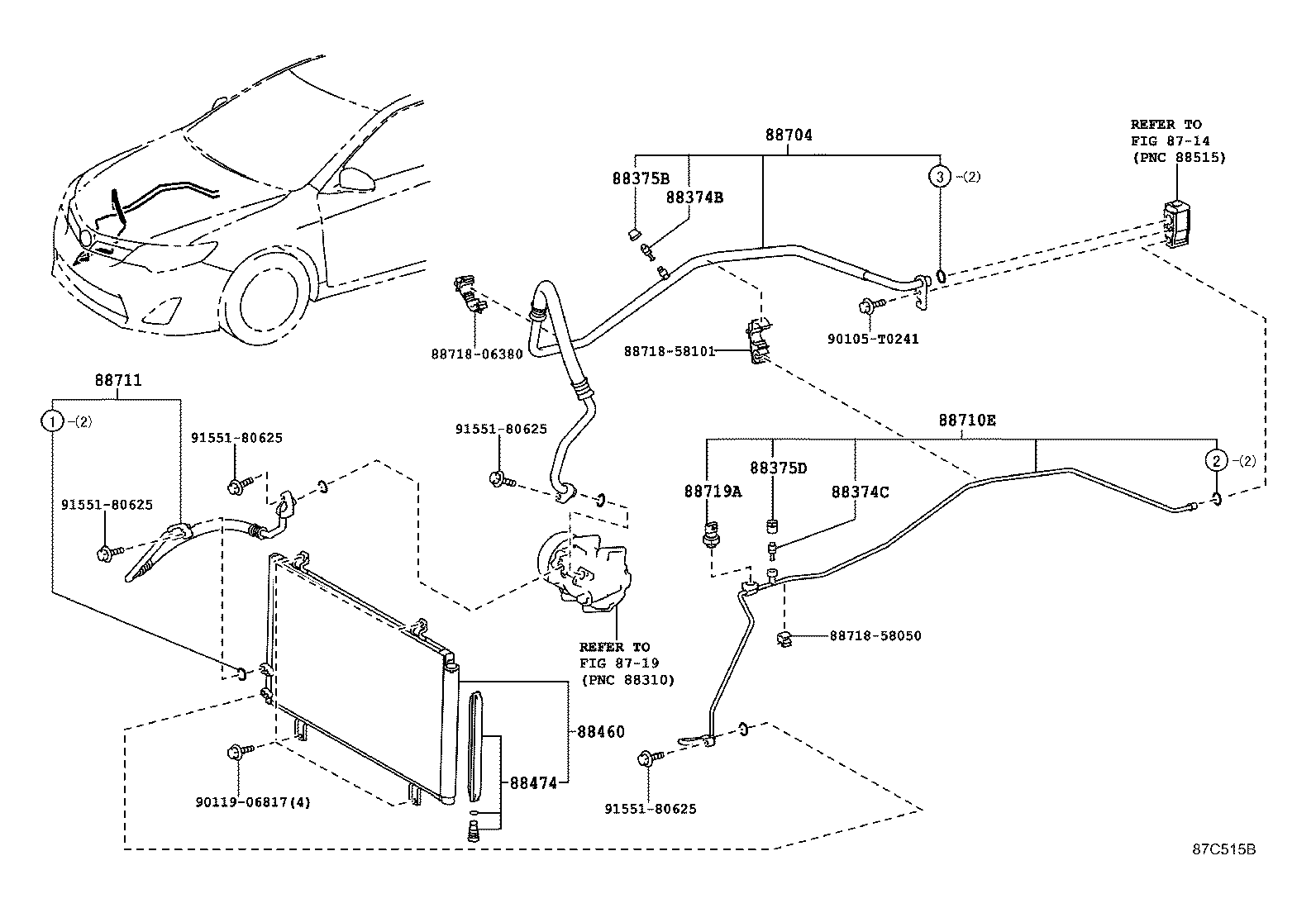

ILLUST NO. 1 OF 2(1110- )ASV50

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88704 88710E 88711 8871806380 8871858050 8871858101 88719A 90105T0241 9011906817 9155180625 9155180625 9155180625 9155180625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ASV50..6F

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ASV50..6F

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02070

ASV50..6F

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-02060

ASV50..6F

 1
88460 - CONDENSER ASSY, COOLER
88460-06240

ASV50,GSV50

 1
88474 - DRYER, COOLER
88474-17010

ASV50..6F

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-06460

ASV50..6F

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-06360

ASV50..6F

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06450

ASV50..6F

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ASV50..6F

 1
Common parts
88718-06380
88718-58050
88718-58101
90105-T0241
90119-06817
91551-80625
