ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )

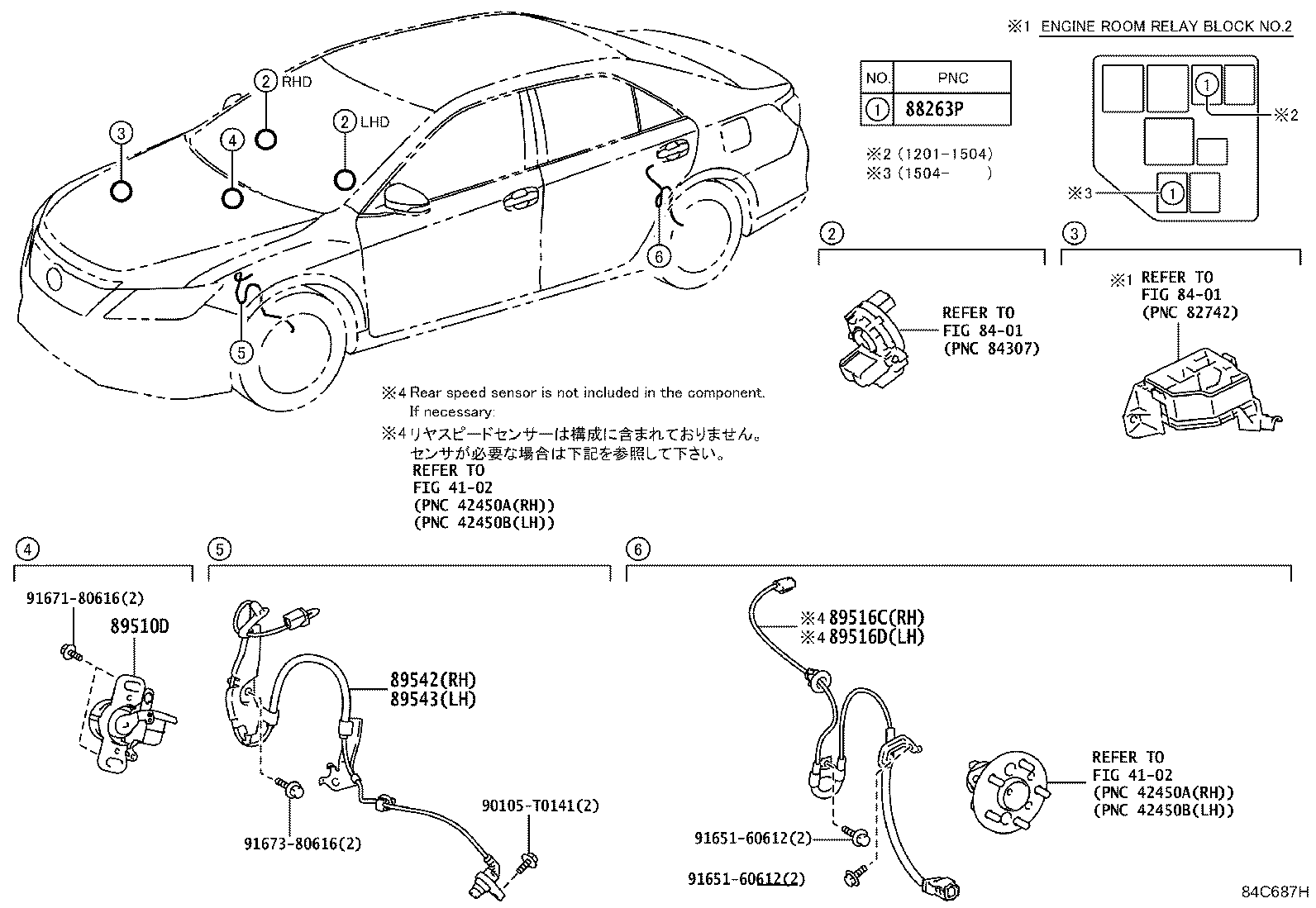

Click highlighted areas on diagram

diagram 4102 4102 8401 8401 88263P 89510D 89516C 89516D 89542 89543 90105T0141 9165160612 9165160612 9167180616 9167380616
Part # Description Qty Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-33070

ASV50,AVV50,GSV50

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-33080

ASV50..6F

 1
89542 - SENSOR, SPEED, FRONT RH
89542-33100

ASV50..6F

 1
89543 - SENSOR, SPEED, FRONT LH
89543-33090

ASV50..6F

 1
Common parts
90105-T0141
91651-60612
91671-80616
91673-80616
Linked diagrams
4102
8401
