ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )GCC

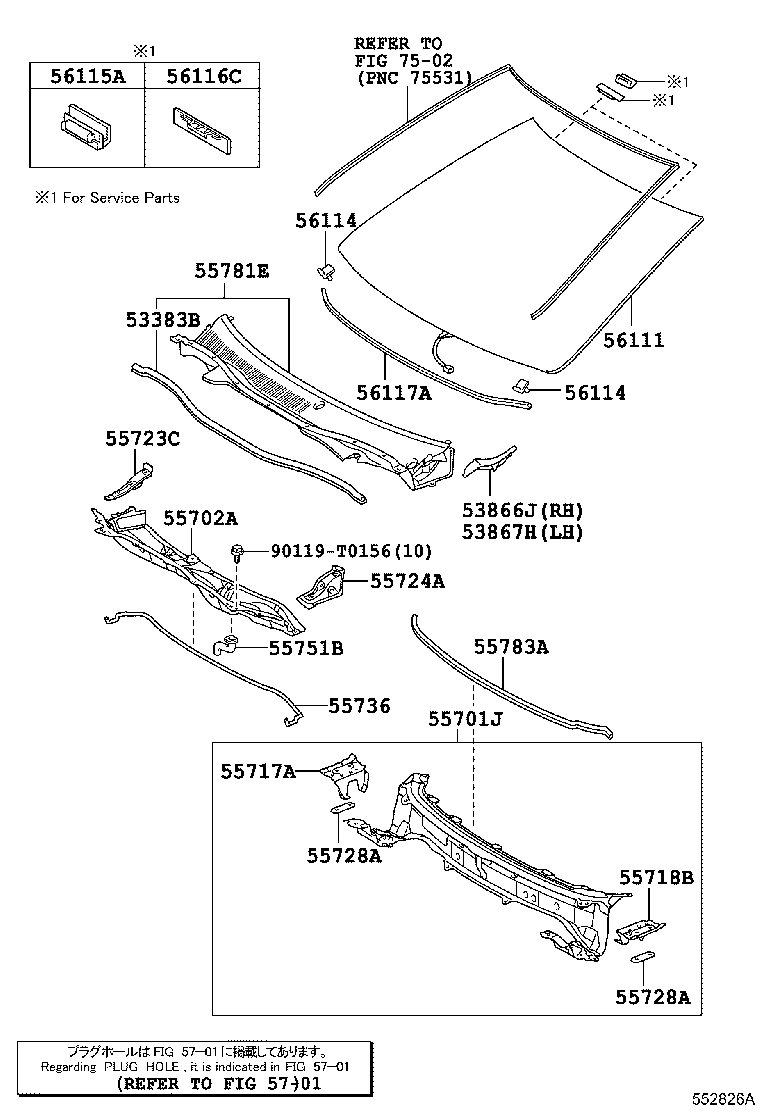

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55701J 55702A 55717A 55718B 55723C 55724A 55728A 55728A 55736 55751B 55781E 55783A 56111 56114 56114 56115A 56116C 56117A 5701 7502 90119T0156
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-06130

ASV50..6F

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-06070

ASV50..6F

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-06070

ASV50..6F

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-06200

ASV50..6F

 1
55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT
55702-06130

ASV50..6F

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-06130

ASV50..6F

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-06130

ASV50..6F

 1
55723C - REINFORCEMENT, COWL TOP SIDE, RH
55723-06120

ASV50..6F

 1
55724A - REINFORCEMENT, COWL TOP SIDE, LH
55724-06130

ASV50..6F

 1
55728A - REINFORCEMENT, HOOD STOPPER
55728-06100

ASV50..6F

 2
55728A - REINFORCEMENT, HOOD STOPPER
55728-06100

ASV50..6F

 2
55736 - SEAL, WATER GUARD PLATE
55736-06040

ASV50..6F

 1
55751B - HOSE, COWL WATER EXTRACT, NO.1
55751-33040

ASV50..6F

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-06150

ASV50..6F

 1
55783A - PAD, COWL TOP SILENCER
55783-06100

ASV50..6F

 2
56111 - GLASS, WINDSHIELD
56111-06904

ASV50..6F

*LAM,T=4.76,GREEN

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-33050

ASV50..6F

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-33050

ASV50..6F

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

ASV50..6F

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ASV50..6F

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-50140

ASV50..6F

*D,L=1358

 1
Common parts
90119-T0156
Linked diagrams
5701
7502
