ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )ASV50..GCC

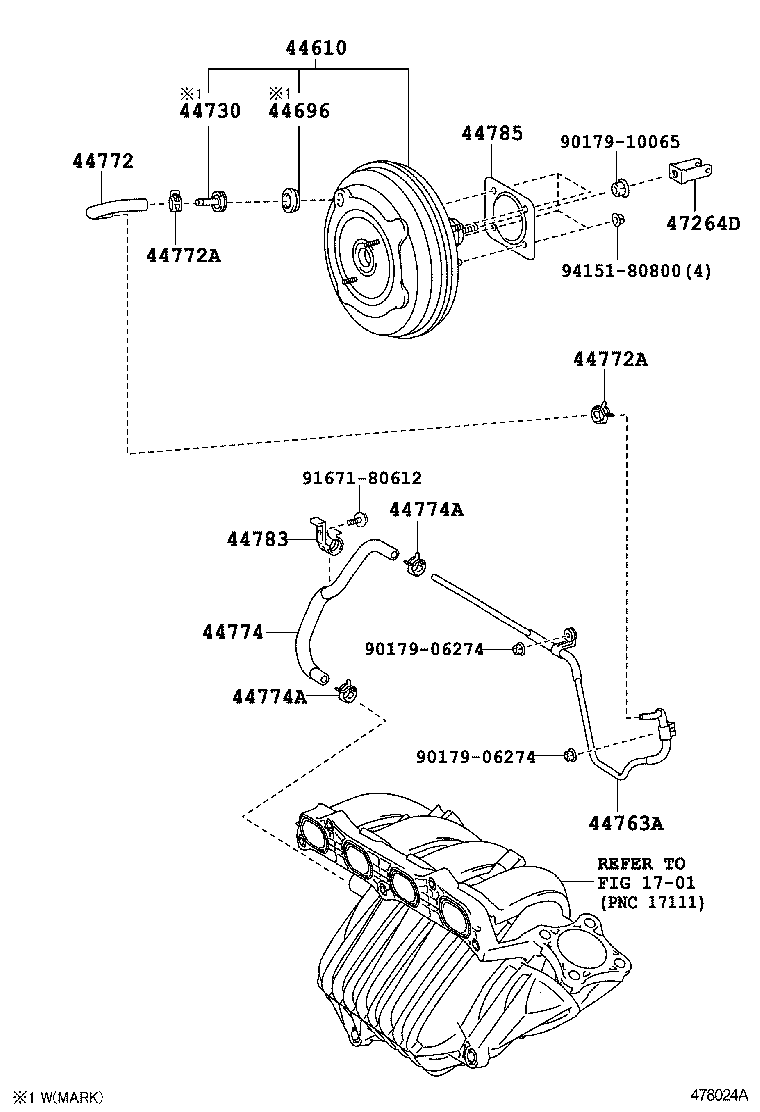

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44783 44785 47264D 9017906274 9017906274 9017910065 9167180612 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-33860

ASV50..6F

MARK=AC

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ASV50..6F

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

ASV50..6F

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-33070

ASV50..6F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-33210

ASV50..6F

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ASV50..6F

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

ASV50..6F

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-33110

ASV50..6F

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ASV50..6F

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ASV50..6F

 2
44783 - CLAMP, VACUUM HOSE
44783-42030

ASV50..6F

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ASV50..6F

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-52050

ASV50..6F

 1
Common parts
90179-06274
90179-10065
91671-80612
94151-80800
Linked diagrams
1701
