ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )ASV50..GCC

Click highlighted areas on diagram

W/O(VSC)

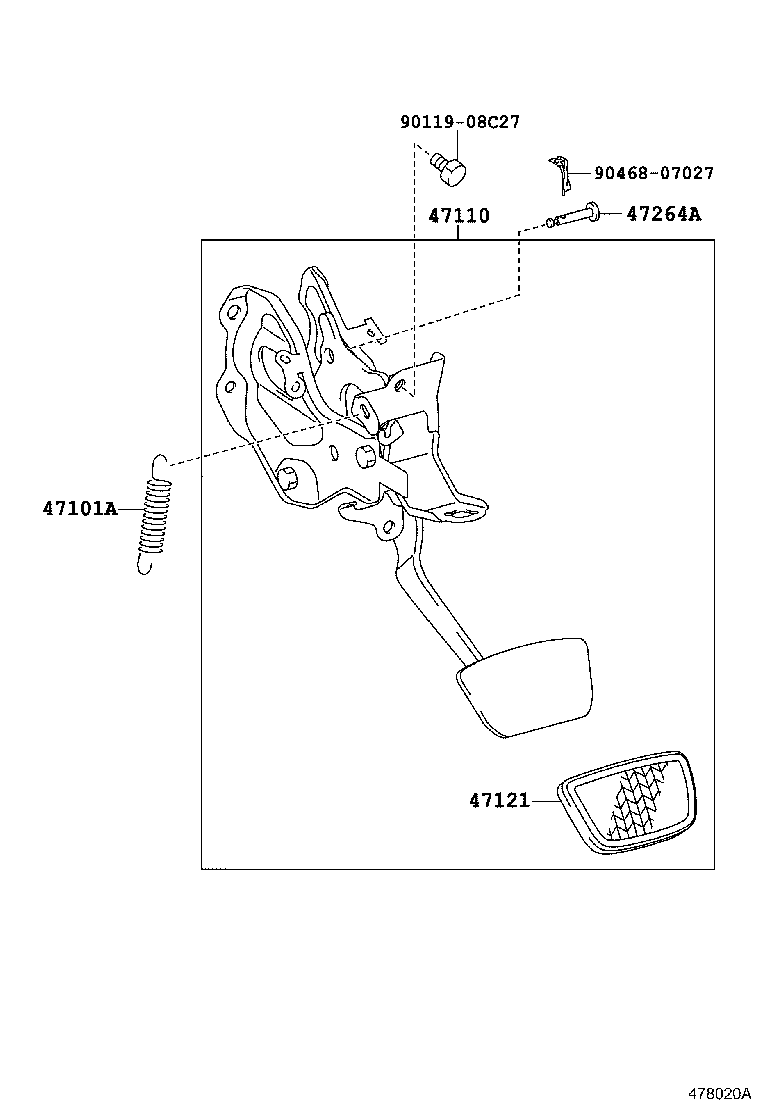

diagram 47101A 47110 47121 47264A 9011908C27 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

ASV50..6F

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-33410

ASV50..6F..SE

 1
47121 - PAD, BRAKE PEDAL
31321-53010

ASV50..6F..SE

 1
47264A - PIN(FOR PUSH ROD)
90240-08081

ASV50..6F

 1
Common parts
90119-08C27
90468-07027
