ASV50L-DEFSKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )ALT,ATRS,ATRSX,GL,GLX,HBD,SE,SPVS

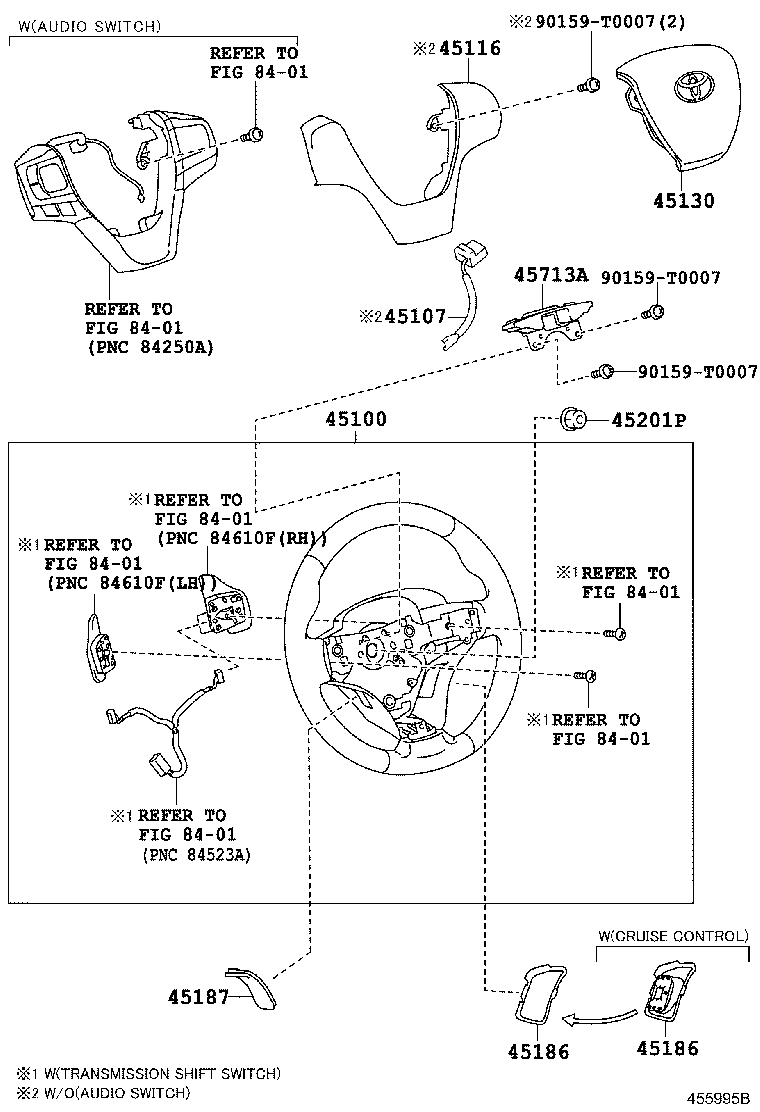

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45116 45130 45186 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 90159T0007 90159T0007 90159T0007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-06N50C0

ASV50..6F..SE

3-SPOKE,LEATHER,BLACK,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-06341C0

ASV50..SE

BLACK,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06260C0

ASV50,GSV50..SE

BLACK,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06260C0

ASV50,GSV50..SE

BLACK,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-06160C0

ASV50,GSV50..SE

BLACK,TRIM0#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ASV50..6F

 1
45713A - DAMPER, STEERING SHAKE
45713-33210

ASV50..6F

 1
Common parts
90159-T0007
Linked diagrams
8401
