ASV50L-DEFNKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1110- )ATX ; (1110- )ASV50..ALT,GL,GLX,SE

Click highlighted areas on diagram

W/O(SMART ENTRY)

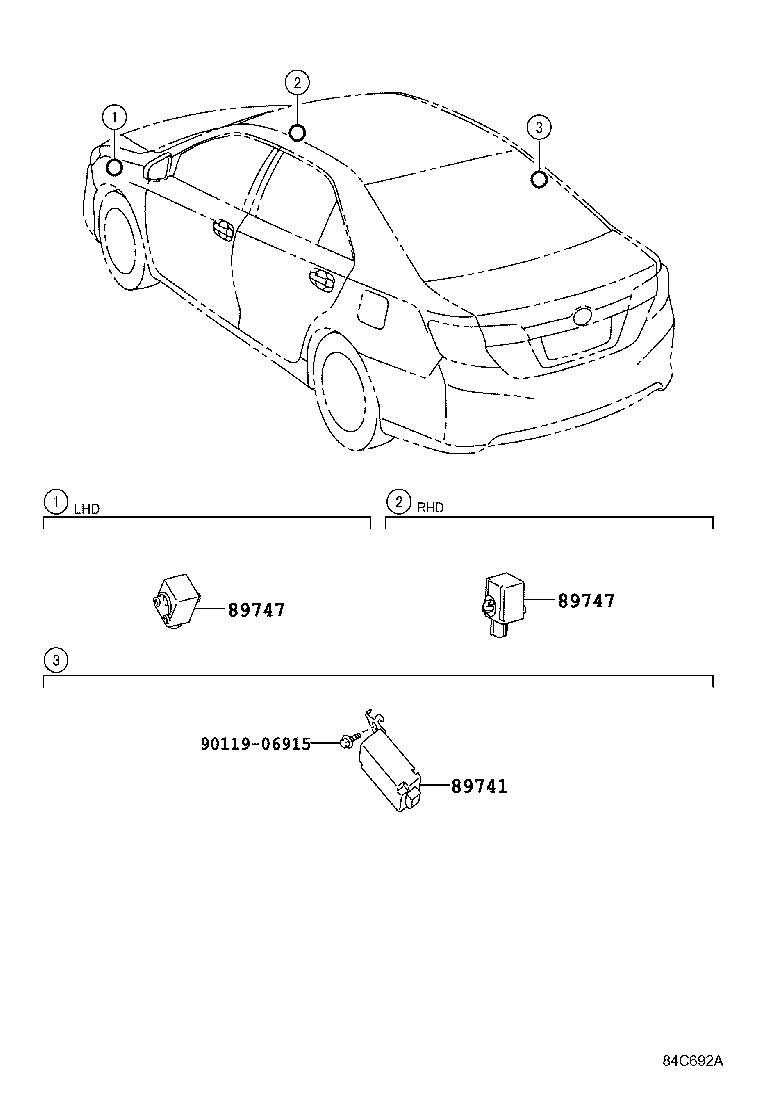

diagram 89741 89747 89747 9011906915
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-33501

ASV50..6F..GL

WIRELESS DOOR LOCK-WITH

 1
89741-33501

ASV50..6F..(GLX,SE)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ASV50..6F..(GLX,SE)

 1
89747-30040

ASV50..6F..GL

WIRELESS DOOR LOCK-WITH

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ASV50..6F..(GLX,SE)

 1
89747-30040

ASV50..6F..GL

WIRELESS DOOR LOCK-WITH

 1
Common parts
90119-06915
