ASV50L-DEFDKV (2011)
Toyota Camry/Aurion/Hv(Arl)

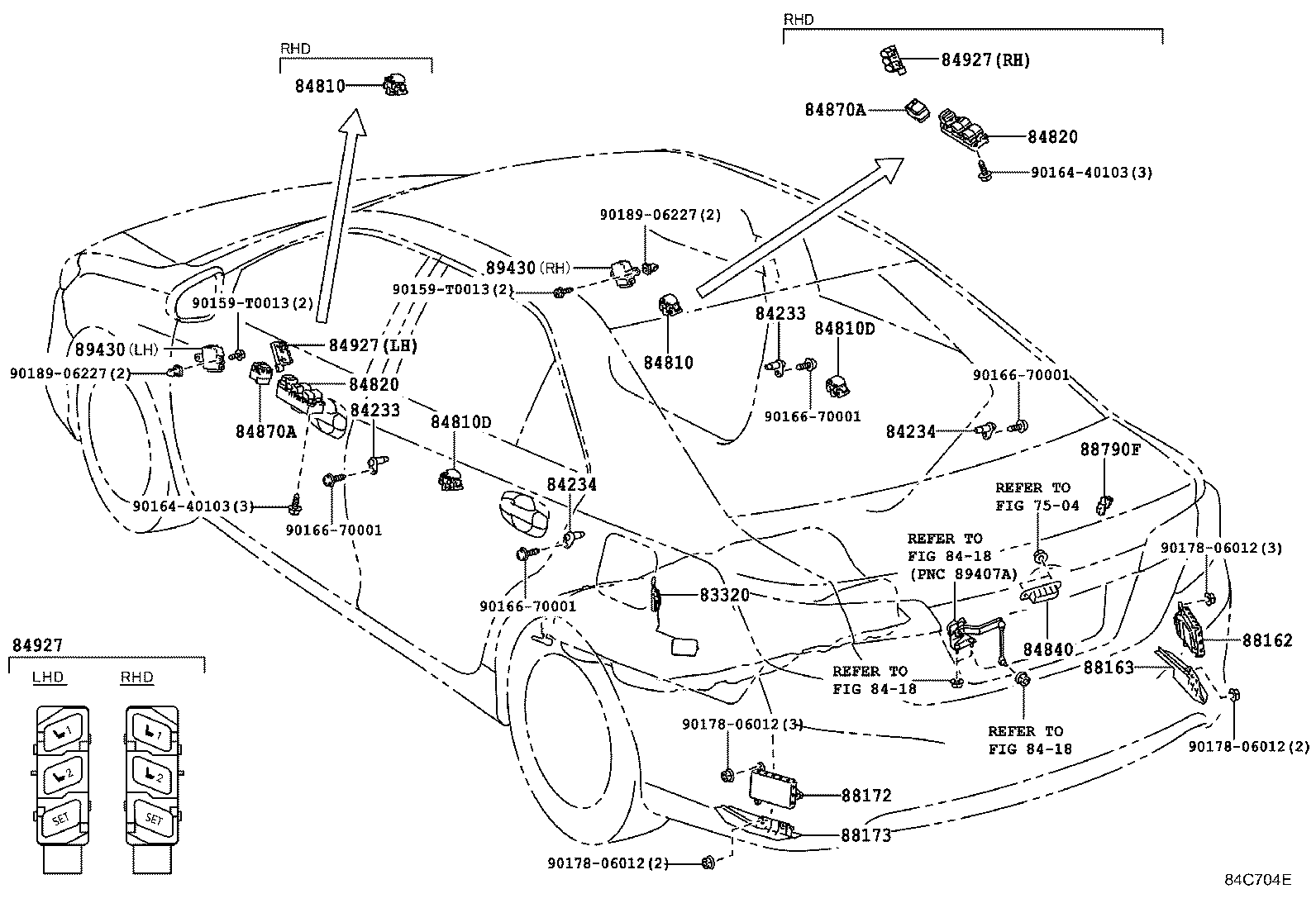

ILLUST NO. 8 OF 8(1110-1504)
DOOR,ROOF,FLOOR & LUGGAGE DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33100 |
ASV50,GSV50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ASV50..6F |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
ASV50..6F |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
ASV50..6F |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
ASV50..6F |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
ASV50..6F |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33270 |
ASV50..GL |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33270 |
ASV50..GL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-06040 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GD,GL,GLX,HBD,SE,SPVS,TOU |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-06040 |
ASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GD,GL,GLX,HBD,SE,SPVS,TOU |
1 | ||
| Common parts | ||||
| 90159-T0013 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 8418 | ||||

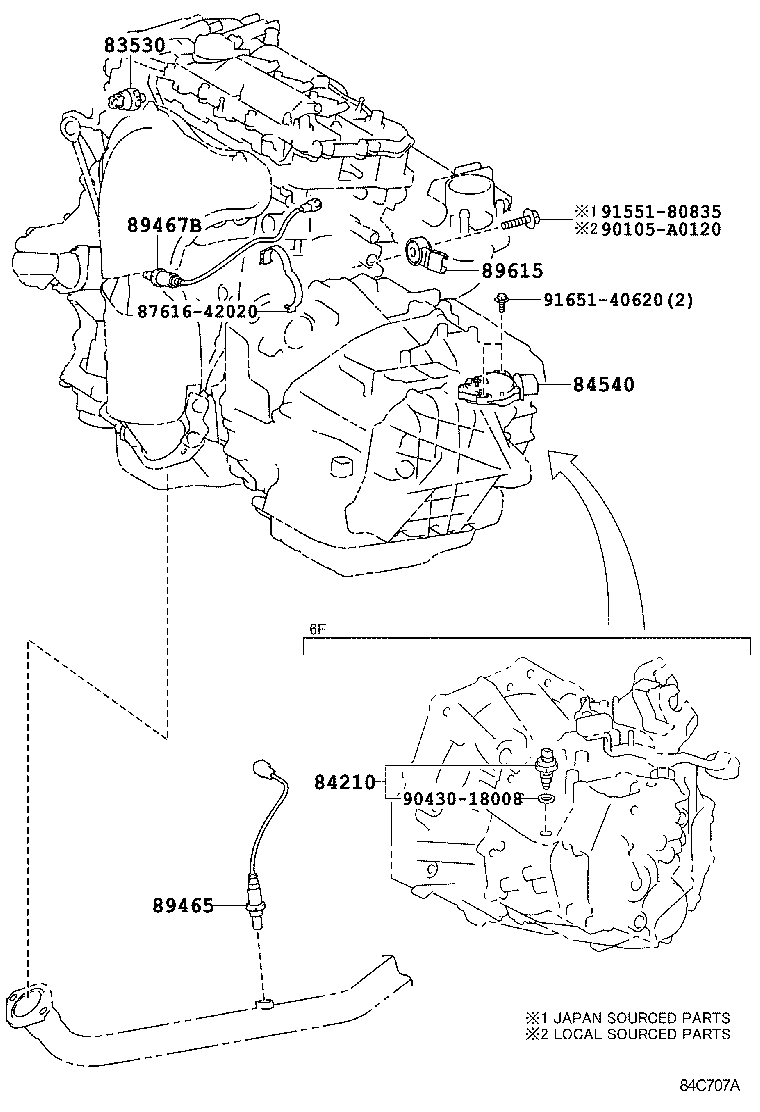

ILLUST NO. 1 OF 8(1110- )ASV50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASV50..6F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ASV50..6F |
1 | ||
| 84210-52050 |
ASV50..6F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-06280 |
ASV50..GCC |
1 | ||
| 89465-33560 |
ASV50..6F |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-48190 |
ASV50..6F |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ASV50..6F (J) |
1 | ||
| 89615-06010 |
ASV50..6F (L) |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90105-A0120 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 8(1110-1504)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-04037 | ||||

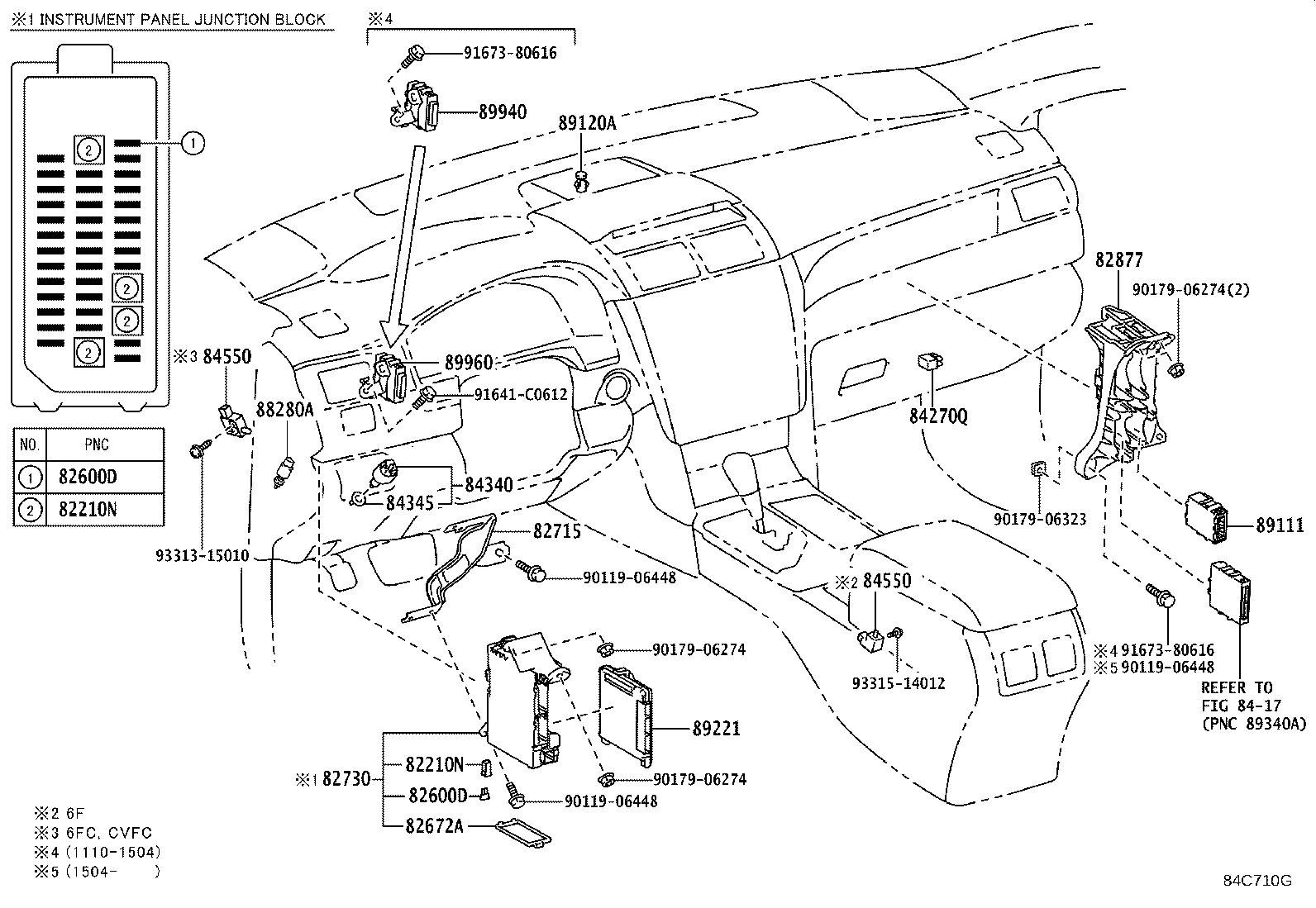

ILLUST NO. 4 OF 8(1110- )GCC
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV50..6F 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33372 |
ASV50..6F |
1 | ||
| 82672-33371 |
ASV50..6F;ASV50,AVV50..ARL |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-06560 |
ASV50..6F |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33F60 |
ASV50..6F |
1 | ||
| 82730-33F61 |
ASV50..6F |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
ASV50..6F |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ASV50..6F |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ASV50..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ASV50..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ASV50..6F |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-33500 |
ASV50..6F |
1 | ||
| Common parts | ||||
| 90119-06448 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 91641-C0612 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8417 | ||||

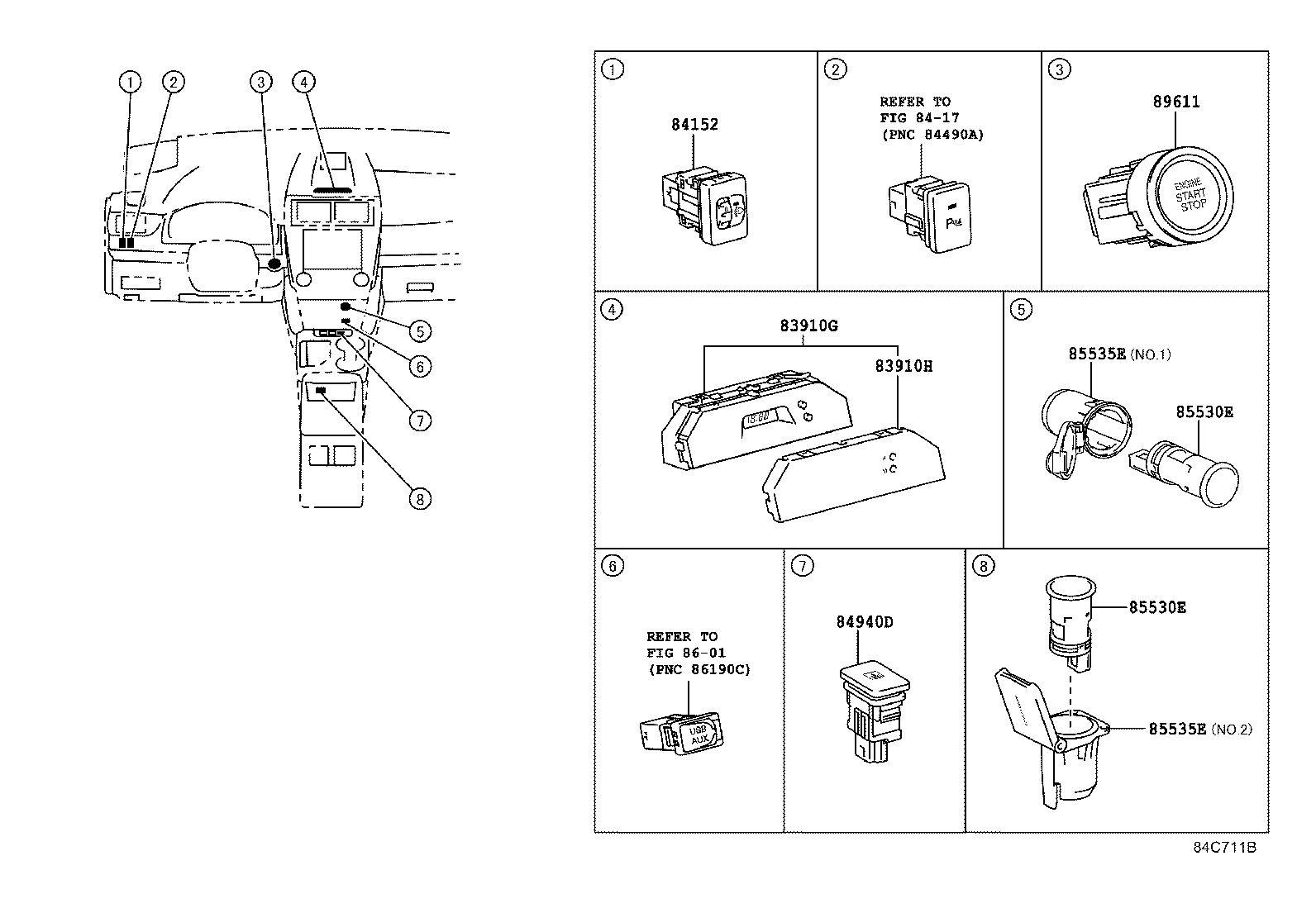

ILLUST NO. 5 OF 8(1110-1504)ASV50..GCC
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-06240 |
ASV50..6F |
1 | ||
| 83910H - LENS, CLOCK | ||||
| 8391B-06040 |
ASV50..6F |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
ASV50..6F |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ASV50..6F |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ASV50..6F |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
ASV50..6F NO.1 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
ASV50..6F NO.1 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||

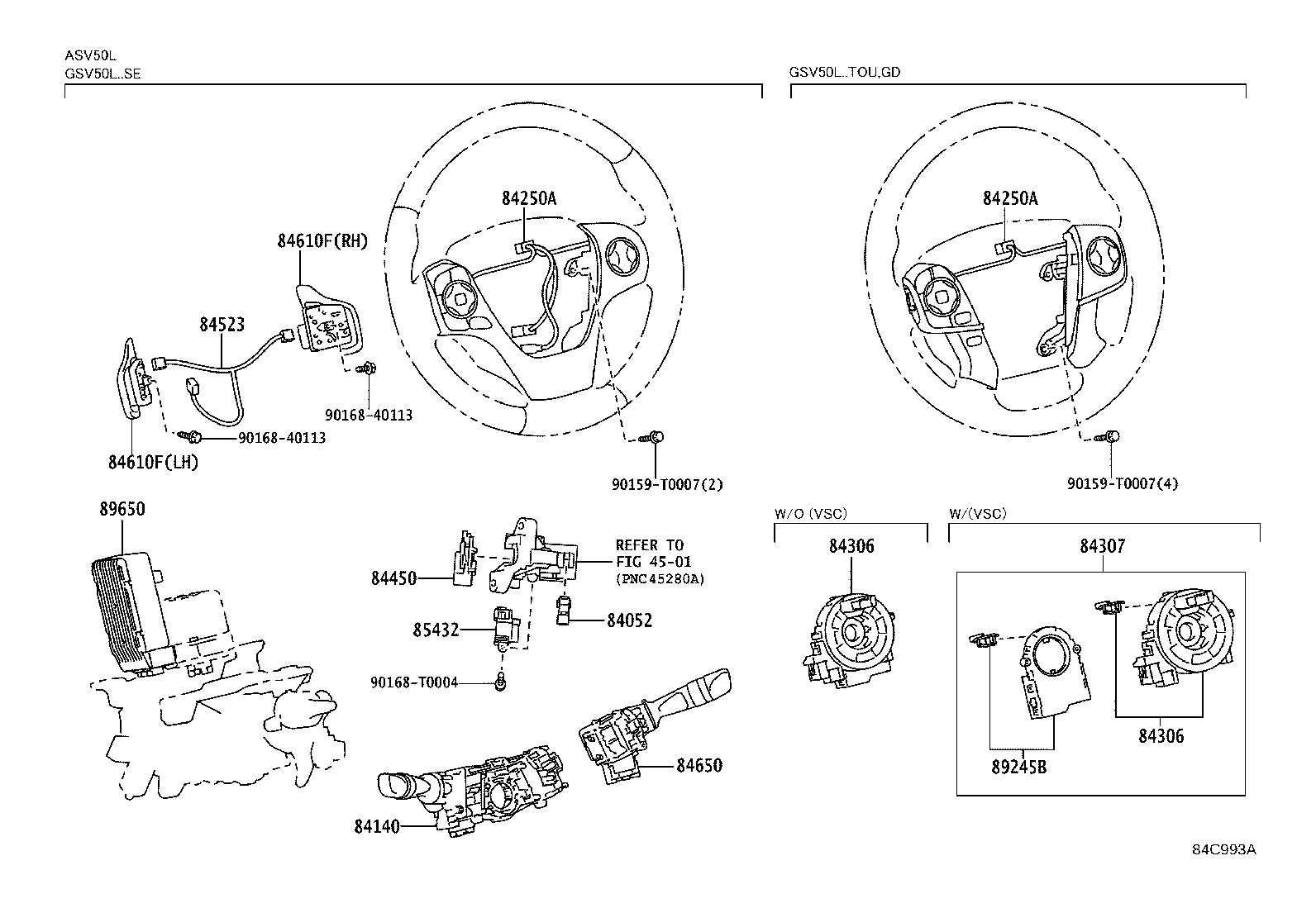

ILLUST NO. 6 OF 8(1110- )GCC
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
GSV50..ATX;ASV50..ALT,GL,GLX,SE |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-06550 |
ASV50..6F..GL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06210 |
ASV50..6F..GL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06210 |
ASV50..6F..GL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
ASV50..ALT,GL,GLX,SE |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-06260 |
ASV50..6F |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-06110 |
ASV50,GSV50..GCC |
1 | ||
| Common parts | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||

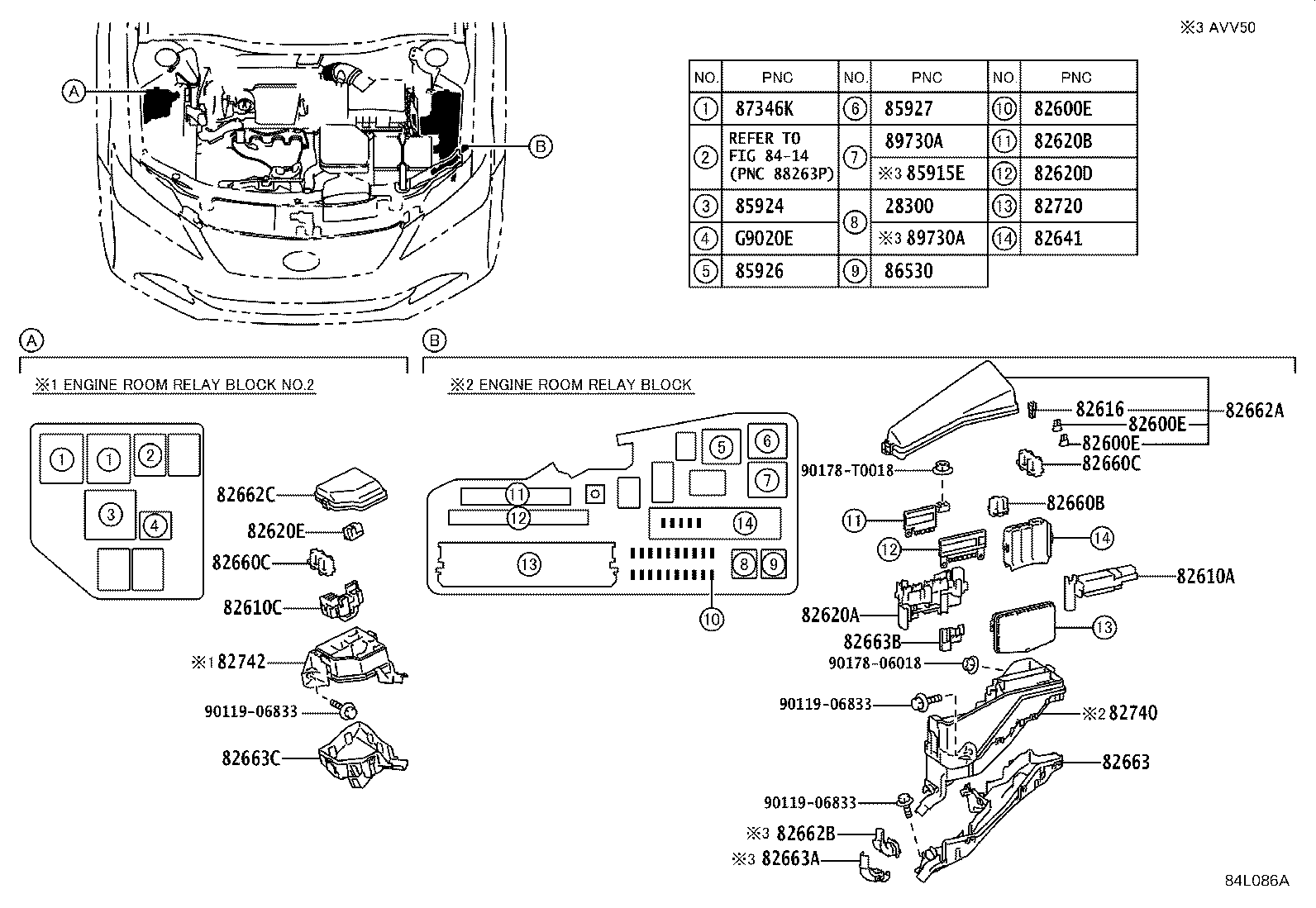

ILLUST NO. 3 OF 8(1110-1504)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2ARFE..ASV50..6F |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
ASV50..6F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ASV50..6F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASV50..6F 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASV50..6F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASV50..6F 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV50..6F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASV50..6F 5A,MINI FUSE,TAN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33090 |
ASV50..6F |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASV50..6F |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33050 |
ASV50..6F |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33070 |
ASV50..6F |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33060 |
ASV50..6F |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33150 |
ASV50..6F |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
ASV50..6F |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50..6F |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33030 |
ASV50..6F |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33370 |
ASV50..6F |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33110 |
ASV50..6F |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33170 |
ASV50..6F |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33260 |
ASV50..ALT,GL |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33030 |
ASV50..6F |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ASV50..6F |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87009 |
ASV50..6F |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ASV50..6F |
1 | ||
| Common parts | ||||
| 90119-06833 | ||||
| 90178-06018 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8414 | ||||
