ASV50L-DEFDKV (2011)

Toyota Camry/Aurion/Hv(Arl)

Production Oct 2011 - Nov 2012
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1110-1504)ASV50,AVV50 ; (1110- )GSV50

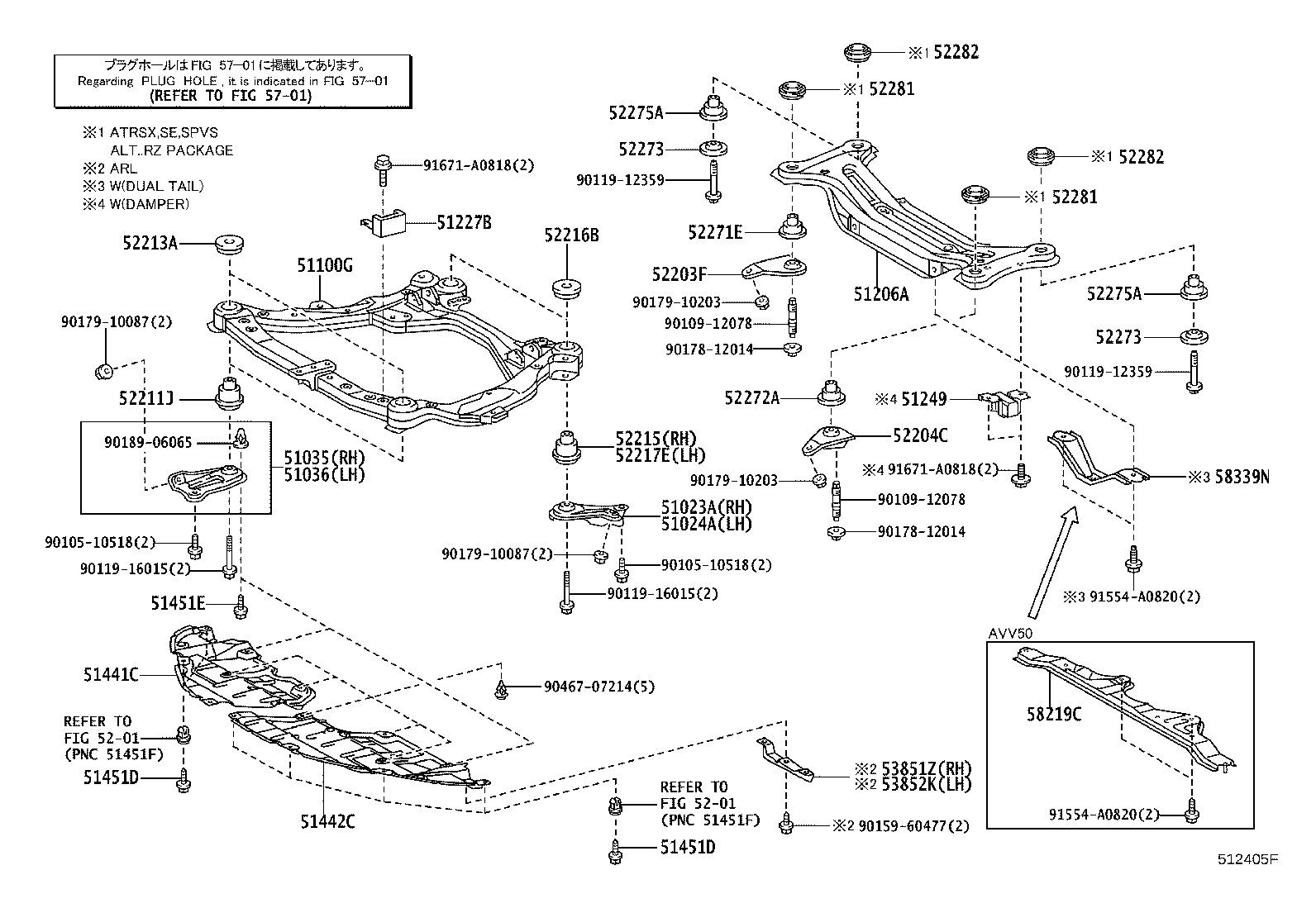

Click highlighted areas on diagram

diagram 51023A 51024A 51035 51036 51100G 51206A 51227B 51249 51441C 51442C 51451D 51451D 51451E 5201 5201 52203F 52204C 52211J 52213A 52215 52216B 52217E 52271E 52272A 52273 52273 52275A 52275A 52281 52281 52282 52282 53851Z 53852K 5701 58219C 58339N 9010510518 9010510518 9010912078 9010912078 9011912359 9011912359 9011916015 9011916015 9015960477 9017812014 9017812014 9017910087 9017910087 9017910203 9017910203 9018906065 9046707214 91554A0820 91554A0820 91671A0818 91671A0818
Part # Description Qty Price
51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51023-06030

ASV50..6F

 1
51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51024-06030

ASV50..6F

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-06030

ASV50..6F

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-06030

ASV50..6F

 1
51100G - FRAME ASSY, FRONT
51100-06090

ASV50..6F

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-06070

ASV50..6F

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-06070

ASV50..6F

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-06010

ASV50..6F..(GL,GLX)

 1
51441C - COVER, ENGINE UNDER, RH
51441-06160

ASV50..6F

 1
51442C - COVER, ENGINE UNDER, LH
51442-06150

ASV50..6F

 1
51451D - SCREW, NO.1
90159-60477

ASV50,AVV50,GSV50

 6
51451D - SCREW, NO.1
90159-60477

ASV50,AVV50,GSV50

 6
51451E - SCREW, NO.2
90159-60477

ASV50,AVV50,GSV50

 2
52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52203-33030

ASV50..6F

 1
52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52204-33030

ASV50..6F

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-06110

ASV50..6F

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-06110

ASV50..6F

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-06130

ASV50..6F

 1
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-06100

ASV50..6F

 2
52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52217-06110

ASV50..6F

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-06090

ASV50..6F..(GL,GLX)

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-06080

ASV50..6F..(GL,GLX)

 1
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-06020

ASV50..6F

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-06020

ASV50..6F

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-06090

ASV50..6F..(GL,GLX)

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-06090

ASV50..6F..(GL,GLX)

 2
Common parts
90105-10518
90109-12078
90119-12359
90119-16015
90159-60477
90178-12014
90179-10087
90179-10203
90189-06065
90467-07214
91554-A0820
91671-A0818
Linked diagrams
5201
5701
