AHV40R-DEXDBQ (2010)

Toyota Camry/Aurion/Hv(Arl)

Production Jan 2010 - Oct 2011
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF10(1001- )AHV40

Click highlighted areas on diagram

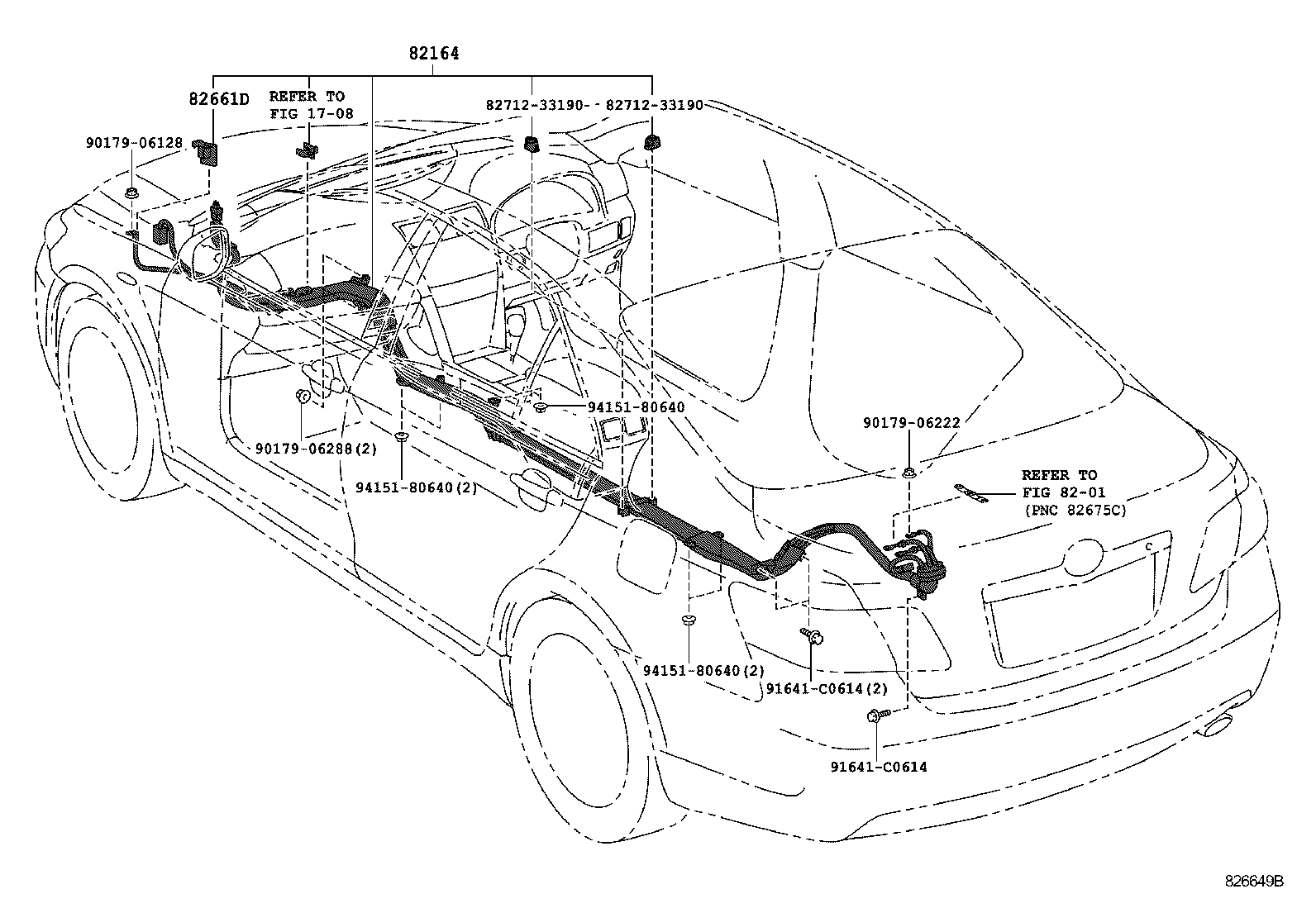

HIGH VOLTAGE CABLE

diagram 1708 8201 82164 82661D 8271233190 8271233190 9017906128 9017906222 9017906288 91641C0614 91641C0614 9415180640 9415180640 9415180640
Part # Description Qty Price
82164 - WIRE, FRAME
82164-33070

AHV40

 1
Common parts
82712-33190
90179-06128
90179-06222
90179-06288
91641-C0614
94151-80640
Linked diagrams
1708
8201

ILLUST NO. 1 OF10(1001- )AHV40

Click highlighted areas on diagram

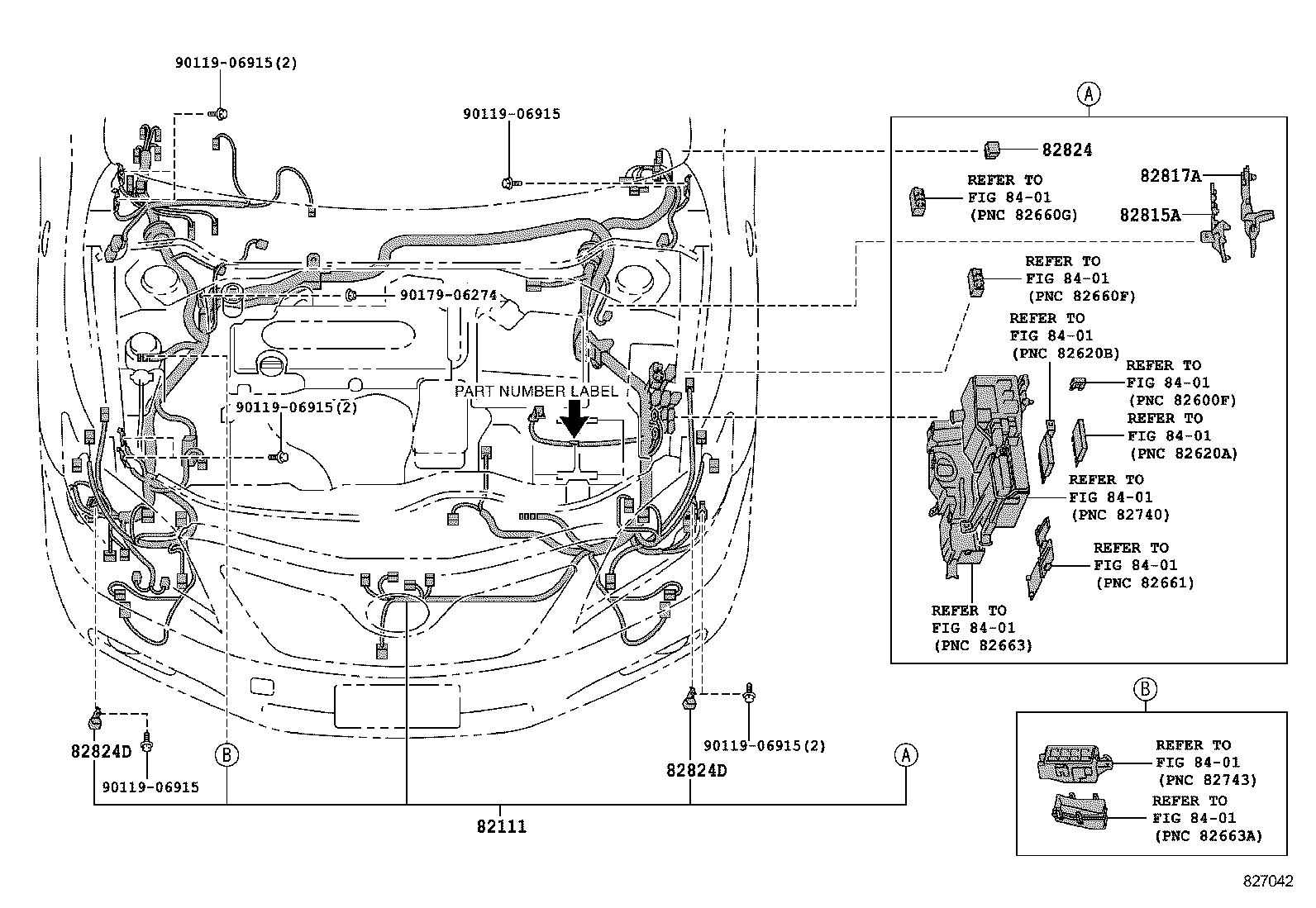

ENGINE ROOM

diagram 82111 82815A 82817A 82824 82824D 82824D 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9011906915 9017906274
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-06V00

AHV40

 1
82111-06V00

AHV40

PART NUMBER LABEL=82111-06V00

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-33330

AHV40

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-33B90

AHV40

 1
Common parts
90119-06915
90179-06274
Linked diagrams
8401

ILLUST NO. 2 OF10(1001- )AHV40

Click highlighted areas on diagram

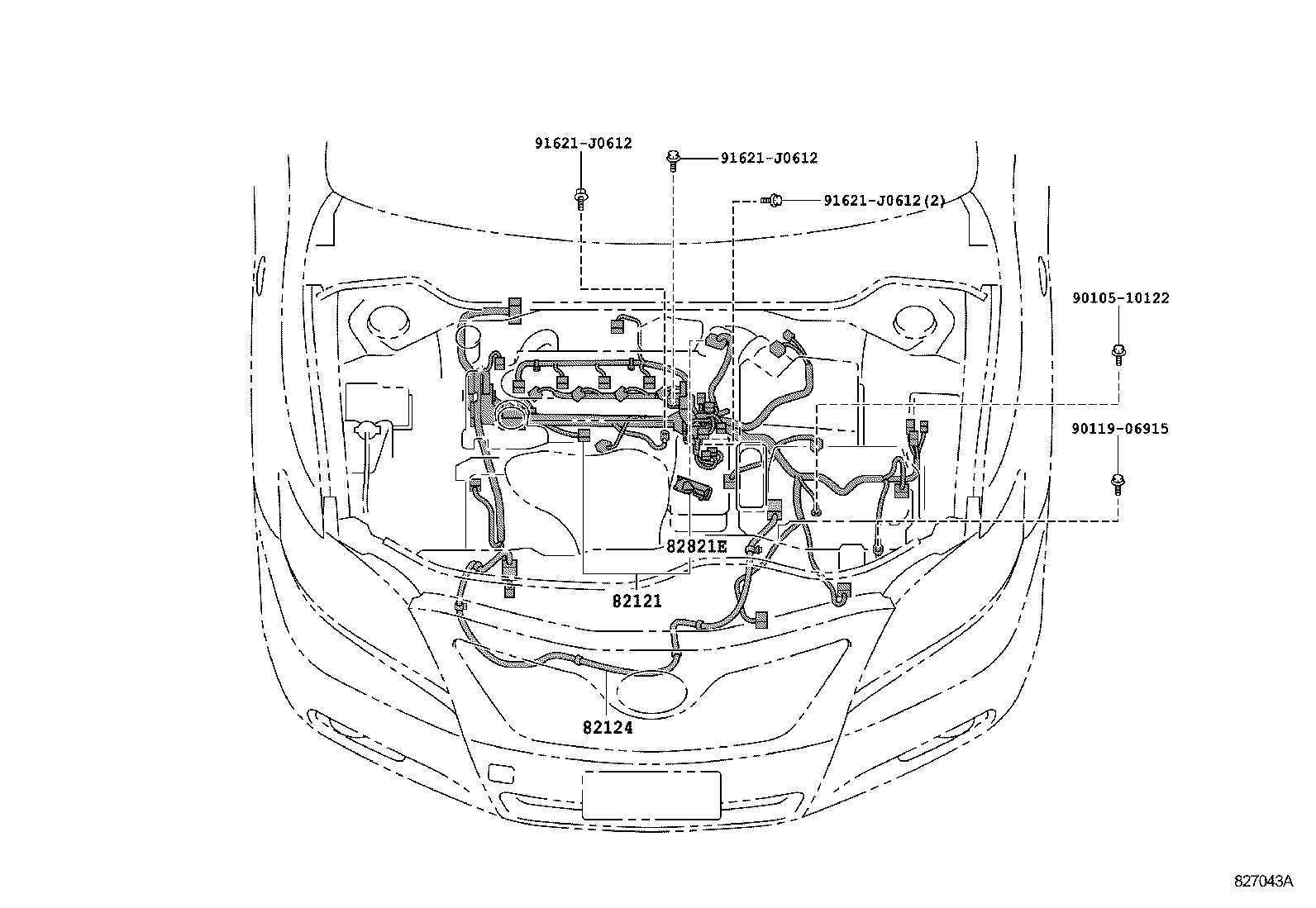

ENGINE

diagram 82121 82124 82821E 9010510122 9011906915 91621J0612 91621J0612 91621J0612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-06820

AHV40

 1
82124 - WIRE, ENGINE, NO.4
82124-33040

AHV40

 1
82821E - COVER, CONNECTOR
82821-33270

AHV40

 1
Common parts
90105-10122
90119-06915
91621-J0612

ILLUST NO. 8 OF10(1001- )AHV40

Click highlighted areas on diagram

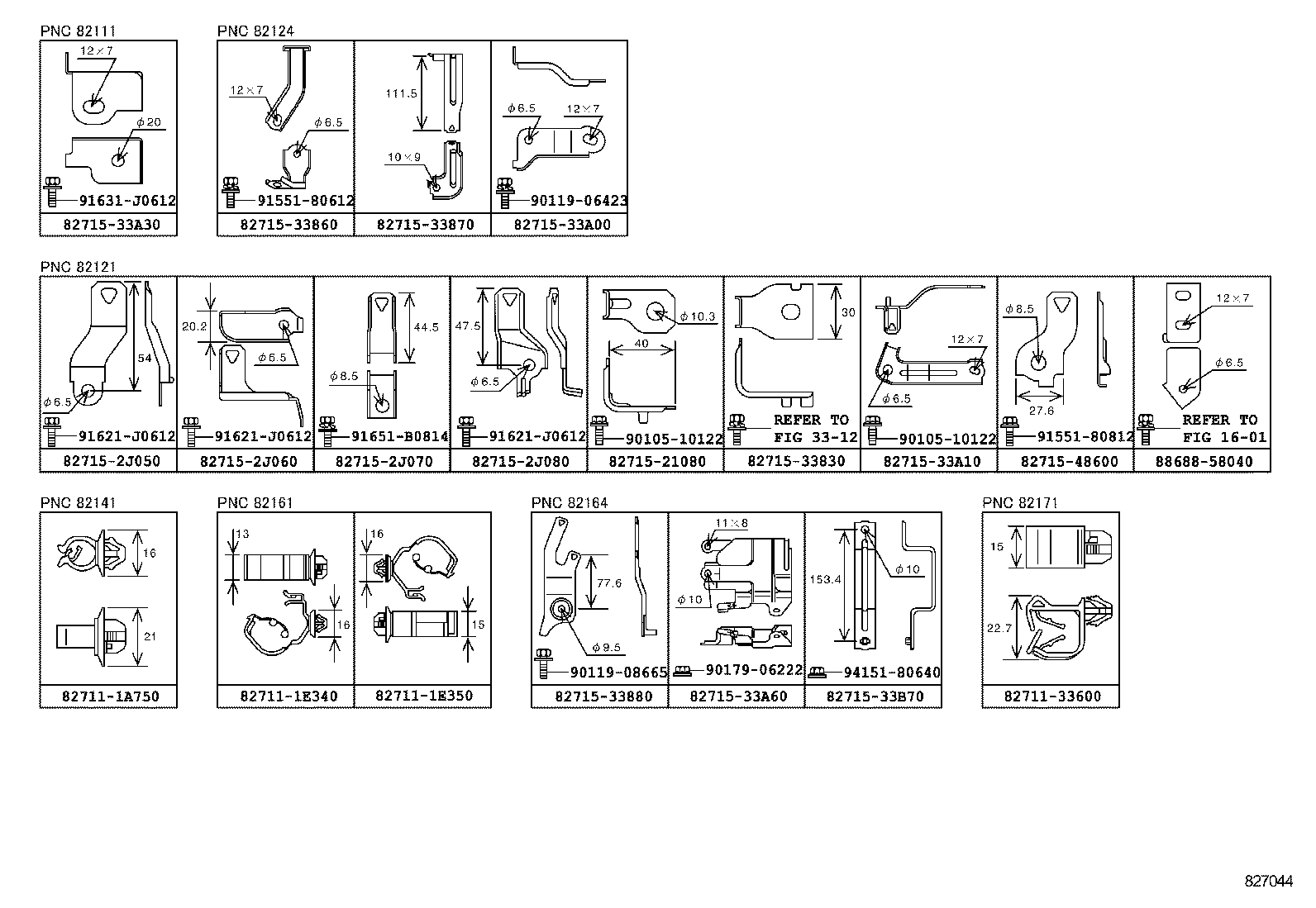

CLAMP & BRACKET

diagram 1601 3312 827111A750 827111E340 827111E350 8271133600 8271521080 827152J050 827152J060 827152J070 827152J080 8271533830 8271533860 8271533870 8271533880 8271533A00 8271533A10 8271533A30 8271533A60 8271533B70 8271548600 8868858040 9010510122 9010510122 9011906423 9011908665 9017906222 9155180612 9155180812 91621J0612 91621J0612 91621J0612 91631J0612 91651B0814 9415180640
Part # Description Qty Price
Common parts
82711-1A750
82711-1E340
82711-1E350
82711-33600
82715-21080
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33830
82715-33860
82715-33870
82715-33880
82715-33A00
82715-33A10
82715-33A30
82715-33A60
82715-33B70
82715-48600
88688-58040
90105-10122
90119-06423
90119-08665
90179-06222
91551-80612
91551-80812
91621-J0612
91631-J0612
91651-B0814
94151-80640
Linked diagrams
1601
3312

ILLUST NO. 9 OF10(1001- )AHV40

Click highlighted areas on diagram

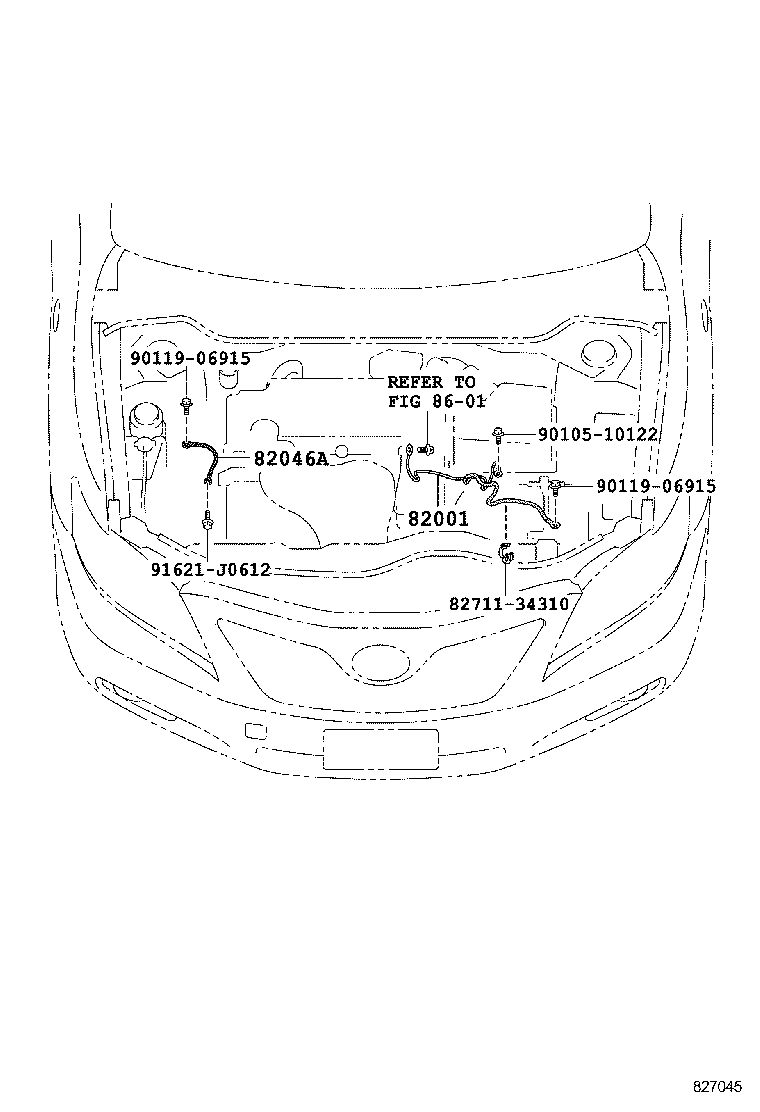

CABLE BOND

diagram 82001 82046A 8271134310 8601 9010510122 9011906915 9011906915 91621J0612
Part # Description Qty Price
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-60150

AHV40

 1
Common parts
82711-34310
90105-10122
90119-06915
91621-J0612
Linked diagrams
8601

ILLUST NO. 5 OF10(1001- )AHV40

Click highlighted areas on diagram

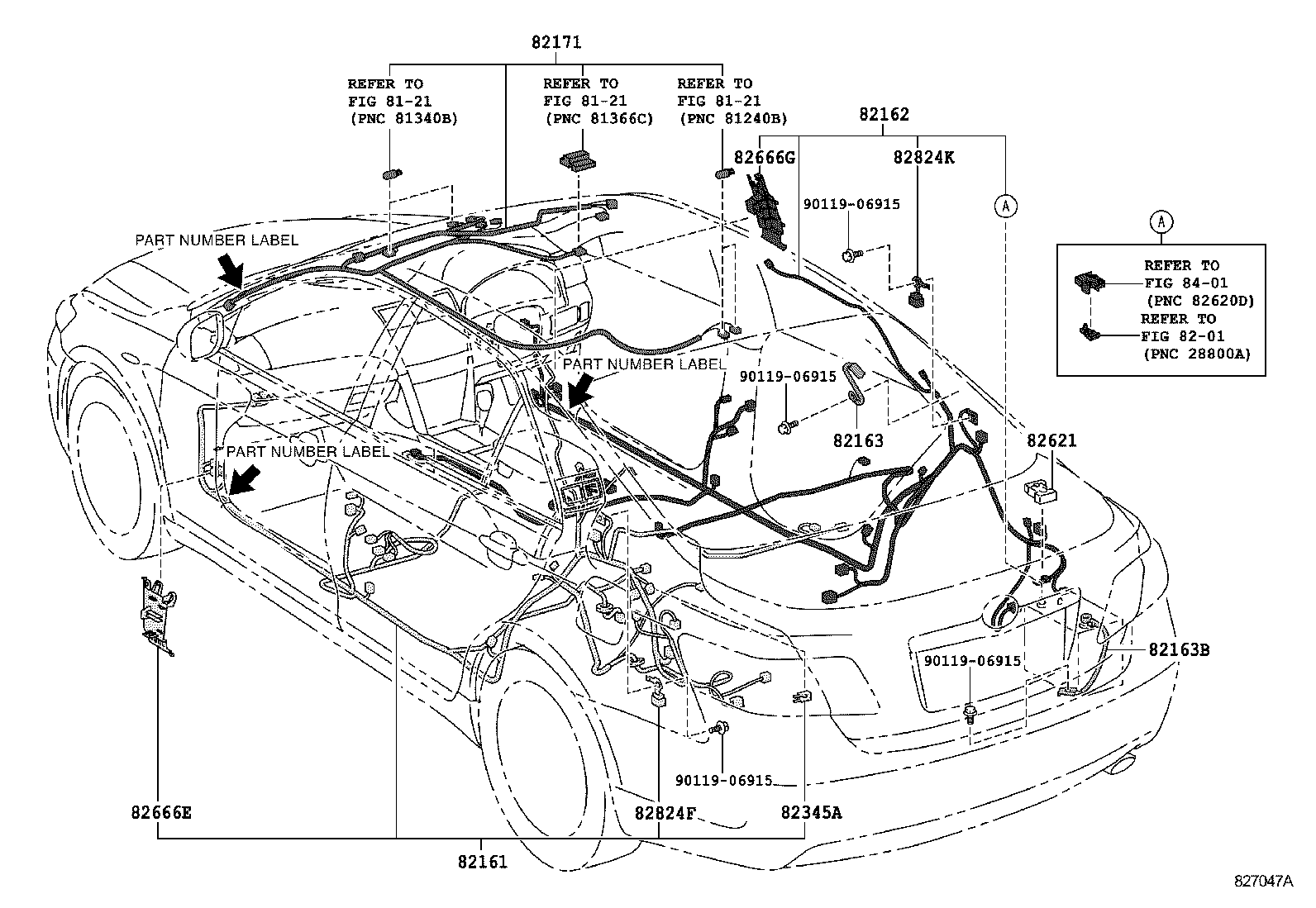

FLOOR & ROOF

diagram 8121 8121 8121 8201 82161 82162 82163 82163B 82171 82345A 82621 82666E 82666G 82824F 82824K 8401 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-06T51

AHV40

 1
82161-06T81

AHV40

2.4HV HI

 1
82161-06T52

AHV40

 1
82161-06T82

AHV40

2.4HV HI

 1
82161-06T81

AHV40

PART NUMBER LABEL=82161-06T81

 1
82161-06T82

AHV40

PART NUMBER LABEL=82161-06T82

 1
82161-06T51

AHV40

PART NUMBER LABEL=82161-06T51

 1
82161-06T52

AHV40

PART NUMBER LABEL=82161-06T52

 1
82162 - WIRE, FLOOR, NO.2
82162-06K71

AHV40

 1
82162-06K72

AHV40

 1
82162-06K71

AHV40

PART NUMBER LABEL=82162-06K71

 1
82162-06K72

AHV40

PART NUMBER LABEL=82162-06K72

 1
82163B - WIRE, FLOOR NO.5
82165-33080

AHV40

 1
82171 - WIRE, ROOF, NO.1
82171-06D80

AHV40

2.4HV HI&MOON ROOF-WITH

 1
82171-06C50

AHV40

2.4HV HI

 1
82171-06C11

GSV40..ATX,GD,SPVS;ACV40,AHV40..ALT,ATEVA,GLX,HBD,SPV

 1
82171-06D60

AHV40

MOON ROOF-WITH&AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

 1
82171-06J00

AHV40

AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

 1
82171-06C50

AHV40

2.4HV HI&AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

 1
82171-06D80

AHV40

2.4HV HI&MOON ROOF-WITH&AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

 1
82171-06C50

AHV40

PART NUMBER LABEL=82171-06C50

 1
82171-06D60

AHV40

PART NUMBER LABEL=82171-06D60

 1
82171-06D80

AHV40

PART NUMBER LABEL=82171-06D80

 1
82171-06D80

AHV40

PART NUMBER LABEL=82171-06D80

 1
82171-06C50

AHV40

PART NUMBER LABEL=82171-06C50

 1
82171-06J00

AHV40

PART NUMBER LABEL=82171-06J00

 1
82171-06C11

GSV40..ATX,GD,SPVS;ACV40,AHV40..ALT,ATEVA,GLX,HBD,SPV

PART NUMBER LABEL=82171-06C11

 1
82621 - COVER, FUSIBLE LINK
82621-33010

AHV40

 1
82666G - HOLDER, CONNECTOR NO.8
82666-33370

AHV40

 1
82824K - CONNECTOR, WIRING HARNESS
82824-48070

AHV40

 1
Common parts
90119-06915
Linked diagrams
8121
8201
8401

ILLUST NO.10 OF10(1001- )AHV40

Click highlighted areas on diagram

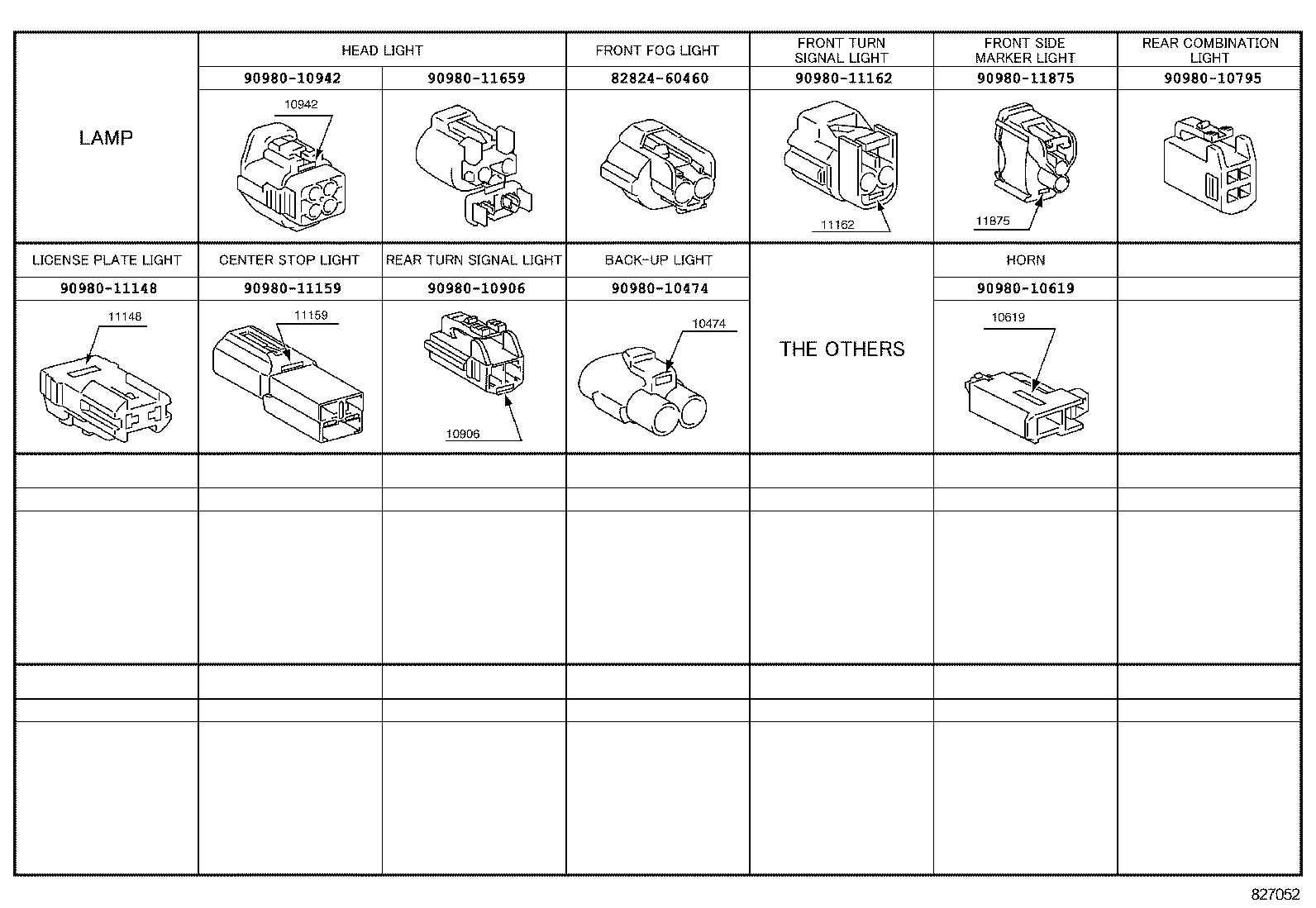

CONNECTOR

diagram 8282460460 9098010474 9098010619 9098010795 9098010906 9098010942 9098011148 9098011159 9098011162 9098011659 9098011875
Part # Description Qty Price
Common parts
82824-60460
90980-10474
90980-10619
90980-10795
90980-10906
90980-10942
90980-11148
90980-11159
90980-11162
90980-11659
90980-11875
