ACV40R-DEMVKQ (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

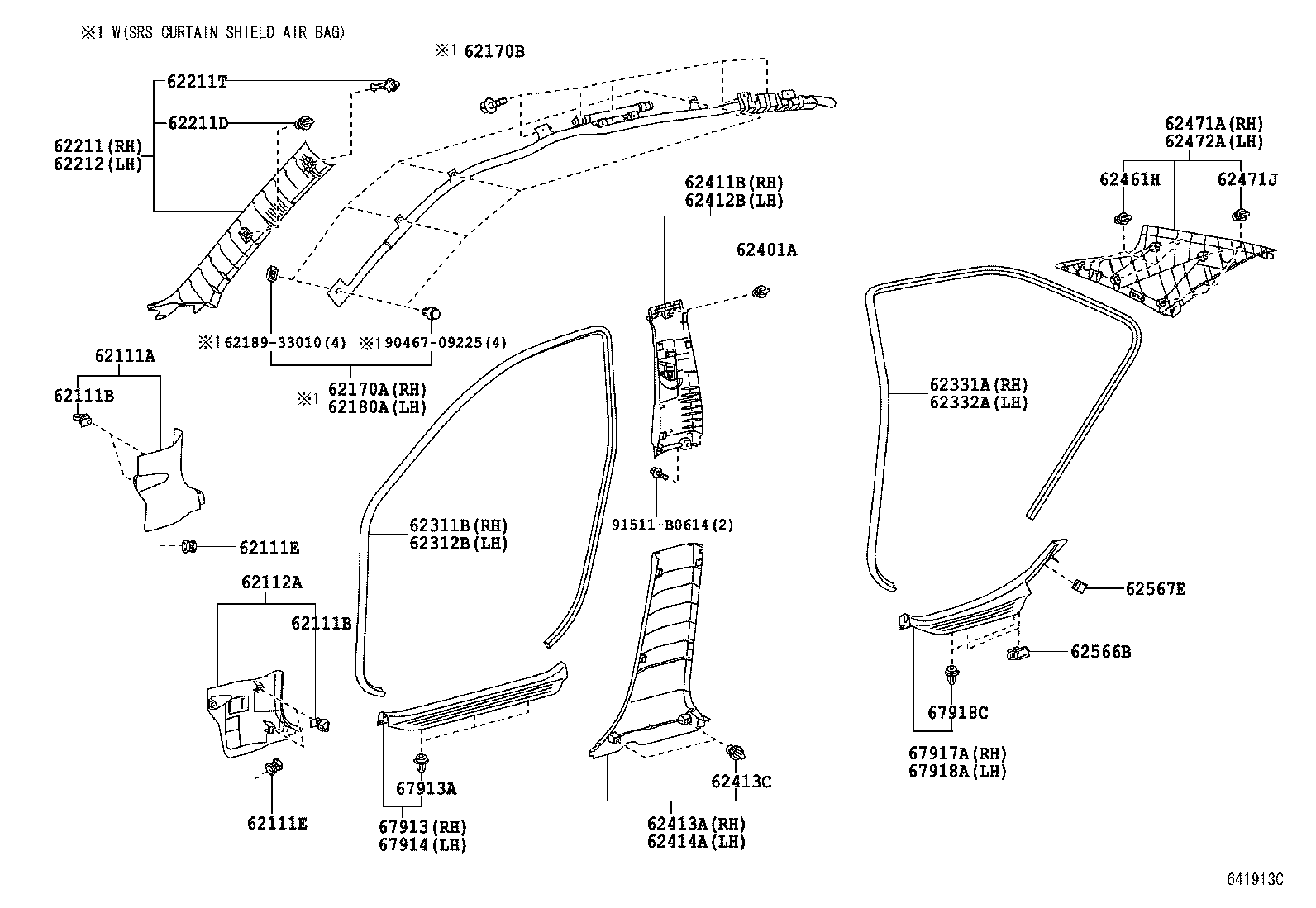

Click highlighted areas on diagram

diagram 62111A 62111B 62111B 62111E 62111E 62112A 62170A 62170B 62180A 6218933010 62211 62211D 62211T 62212 62311B 62312B 62331A 62332A 62401A 62411B 62412B 62413A 62413C 62414A 62461H 62471A 62471J 62472A 62566B 62567E 67913 67913A 67914 67917A 67918A 67918C 9046709225 91511B0614
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-06090B0

ACV40,GSV40..(ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09212

ACV40

 4
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09212

ACV40

 4
62111E - RETAINER, COWL SIDE TRIM
90467-06147

ACV40

 2
62111E - RETAINER, COWL SIDE TRIM
90467-06147

ACV40

 2
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-06090B0

ACV40,GSV40..(ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-06032

ACV40..ATEVA,GD,SPV

 1
62170B - BOLT, W/WASHER
90119-06869

ACV40..ATEVA,GD,SPV

 10
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-06032

ACV40..ATEVA,GD,SPV

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-06120B0

ACV40..ATEVA,GD,SPV

GRAY,TRIM1#

 1
62210-06121B0

ACV40..ATEVA,GD,SPV

GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

ACV40

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-33030

ACV40..ATEVA,GD,SPV

 2
62217-33031

ACV40

 2
90950-08004

ACV40..ATEVA,GD,SPV

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-06121B0

ACV40..ATEVA,GD,SPV

GRAY,TRIM1#

 1
62220-06120B0

ACV40..ATEVA,GD,SPV

GRAY,TRIM1#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-06110B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-06110B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-06100B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-06100B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10167

ACV40

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62410-06100B1

ACV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,SE,SPV,SPVS,SPVZ,TOU

GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62420-06100B1

ACV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,SE,SPV,SPVS,SPVZ,TOU

GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-06090B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

ACV40

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-06090B0

ACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10188

ACV40

 6
62471A - GARNISH, ROOF SIDE, INNER RH
62470-06150B0

ACV40,GSV40..(ATEVA,ATX,GD,SPV,SPVS,SPVZ)..ARL

GRAY,TRIM1#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10161

ACV40

 4
62472A - GARNISH, ROOF SIDE, INNER LH
62480-06150B0

ACV40,GSV40..(ATEVA,ATX,GD,SPV,SPVS,SPVZ)..ARL

GRAY,TRIM1#

 1
62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566-YC010

ACV40

 4
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33040

ACV40

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-06100B0

ACV40,GSV40..SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
67913A - CLIP(FOR SCUFF PLATE)
90467-10161

ACV40

 6
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-06100B0

ACV40,GSV40..SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-06060B0

GSV40..PRD;ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-06060B0

GSV40..PRD;ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
67918C - CLIP(FOR REAR SCUFF PLATE)
90467-10161

ACV40

 4
Common parts
62189-33010
90467-09225
91511-B0614
