ACV40R-DEMVKQ (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0606-0906)ACV40..GD ; (0606- )ALT,ATEVA,GL,GLX,SE,SPV ; (0610- )ATX,PRD,SPVS

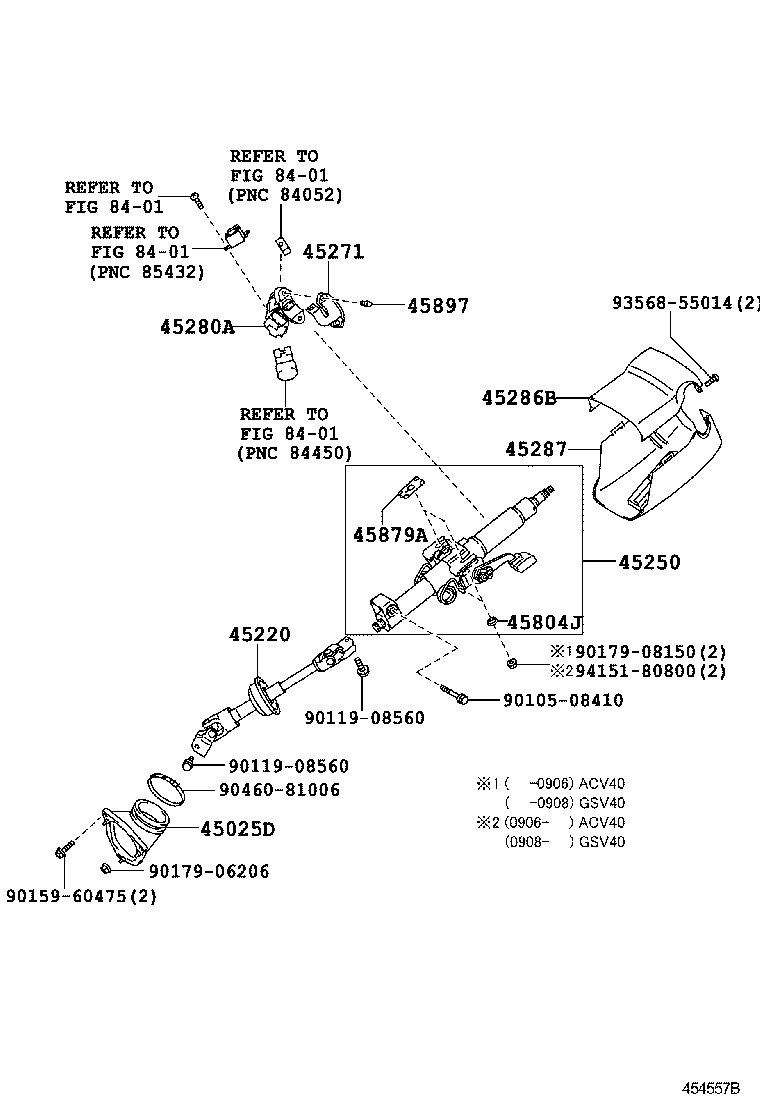

Click highlighted areas on diagram

diagram 45025D 45220 45250 45271 45280A 45286B 45287 45804J 45879A 45897 8401 8401 8401 8401 9010508410 9011908560 9011908560 9015960475 9017906206 9017908150 9046081006 9356855014 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33100

ACV40..ARL

MADE IN JAPAN

 1
45025-06080

ACV40..ARL

MADE IN AUSTRALIA

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-06130

ACV40,GSV40..ARL

 1
45220-06131

ACV40..ARL

 1
45250 - COLUMN ASSY, STEERING
45250-06510

ACV40

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-06040

ACV40

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-06100

ACV40..5F

 1
45286B - COVER, STEERING COLUMN, UPR
45286-06110B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-06110B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
45804J - COLLAR SUB-ASSY, BREAK AWAY
45804-22030

ACV40

 2
45879A - CAPSULE, BREAK AWAY
45879-22070

ACV40

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

ACV40

 2
Common parts
90105-08410
90119-08560
90159-60475
90179-06206
90179-08150
90460-81006
93568-55014
94151-80800
Linked diagrams
8401
