Toyota Camry/aurion/hv(arl) ACV40 METER

Home Blog About Contact Search

ACV40R-DEMDKQ (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009

Engine 2AZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

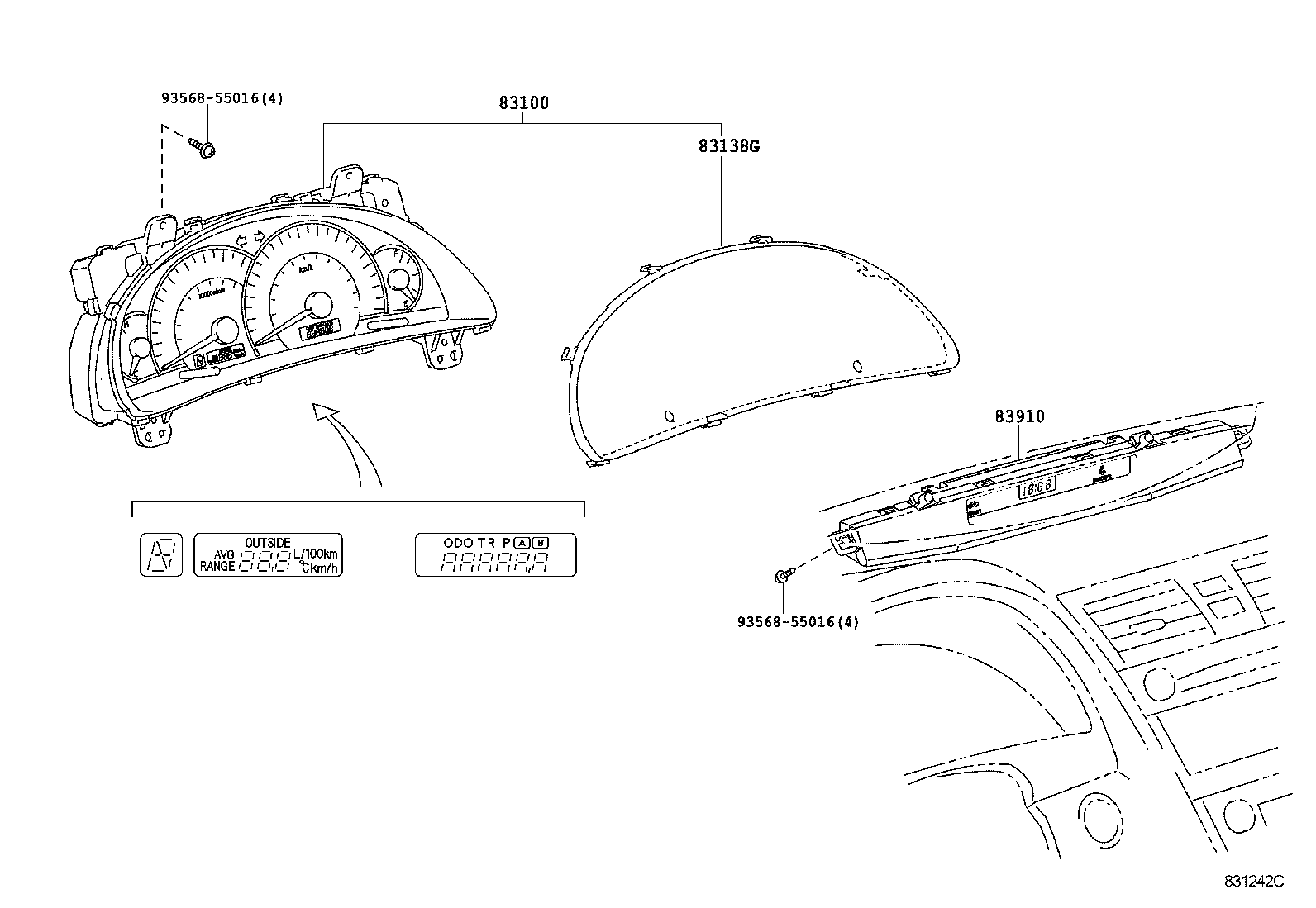

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-06L71	ACV40..ALT	06/2006 - 05/2007	1
83800-06U41	ACV40..ALT	08/2007 - 06/2009	1
83800-06U40	ACV40..ALT	05/2007 - 08/2007	1
83138G - GLASS, COMBINATION METER
83852-06L70	ACV40	06/2006 - 06/2009	1
83910 - CLOCK ASSY
83910-06140	ACV40..ARL	06/2006 - 06/2007	1
83910-06200	ACV40..ARL	06/2007 - 06/2009	1
Common parts
93568-55016
