ACV40R-DEMDKQ (2006)
Toyota Camry/Aurion/Hv(Arl)
(0606- )ALT,HBD

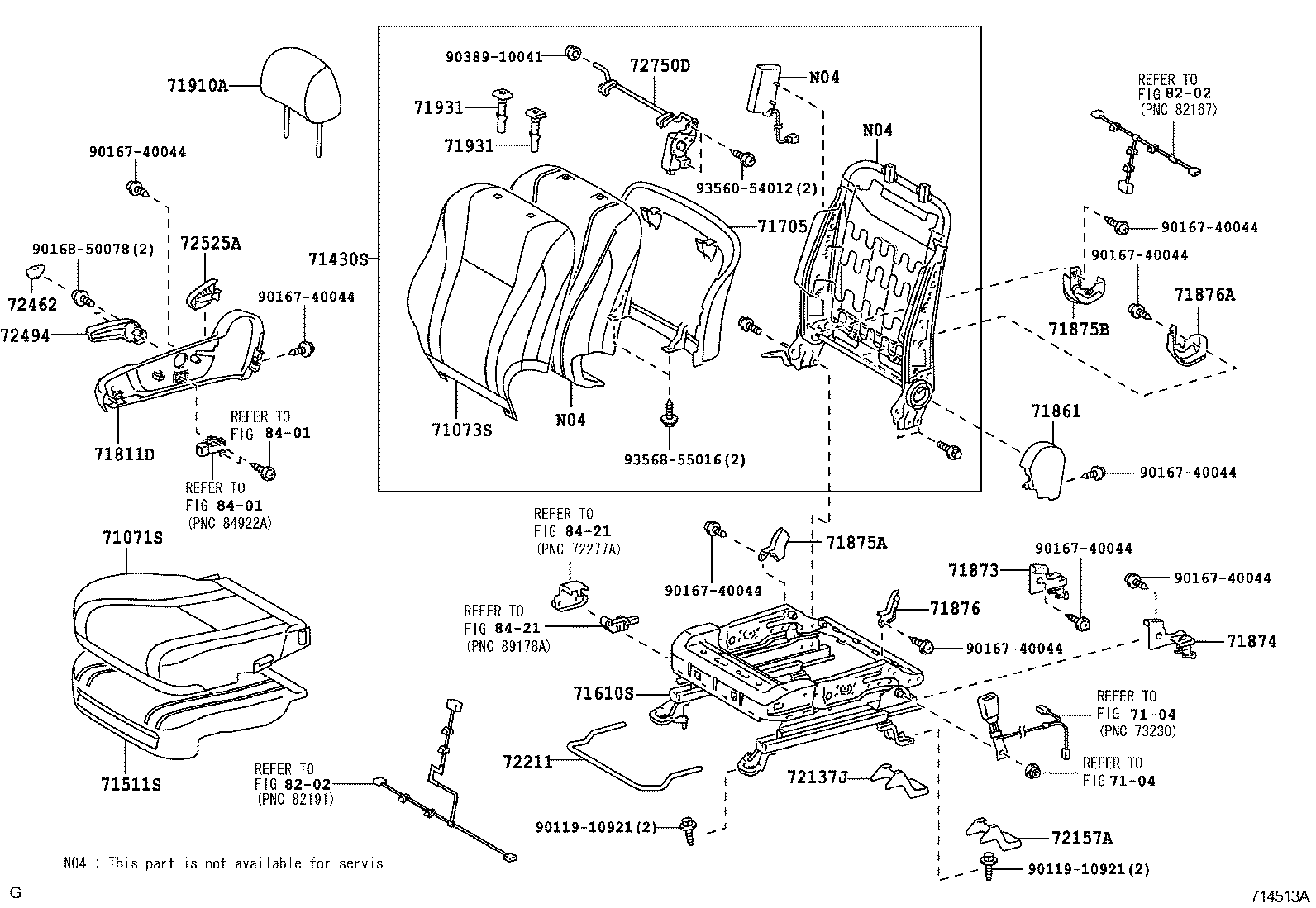

DRIVER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06650B1 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71071-06650B0 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06780B3 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71073-06780B4 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71073-06800B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK.GRAY,TRIM15 |
1 | ||
| 71073-06800B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-06750B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK.GRAY,TRIM15 |
1 | ||
| 71430-06750B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-06360 |
ACV40..ALT |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-06100 |
ACV40..ALT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-06070B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71705-06070B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06140B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71811-06140B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06080B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71861-06080B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06330 |
ACV40 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06310 |
ACV40 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06140B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71875-06140B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06380 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71876-06350B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06410 |
ACV40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B1 |
ACV40..ALT DK. GRAY,TRIM15 |
2 | ||
| 71910-06340B0 |
ACV40..ALT GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72137-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72157-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-06030B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72462-06030B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-06040B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72494-06040B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06070B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72525-06070B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-06030 |
ACV40..ARL |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(0606- )ALT,ATX,HBD,SPVS

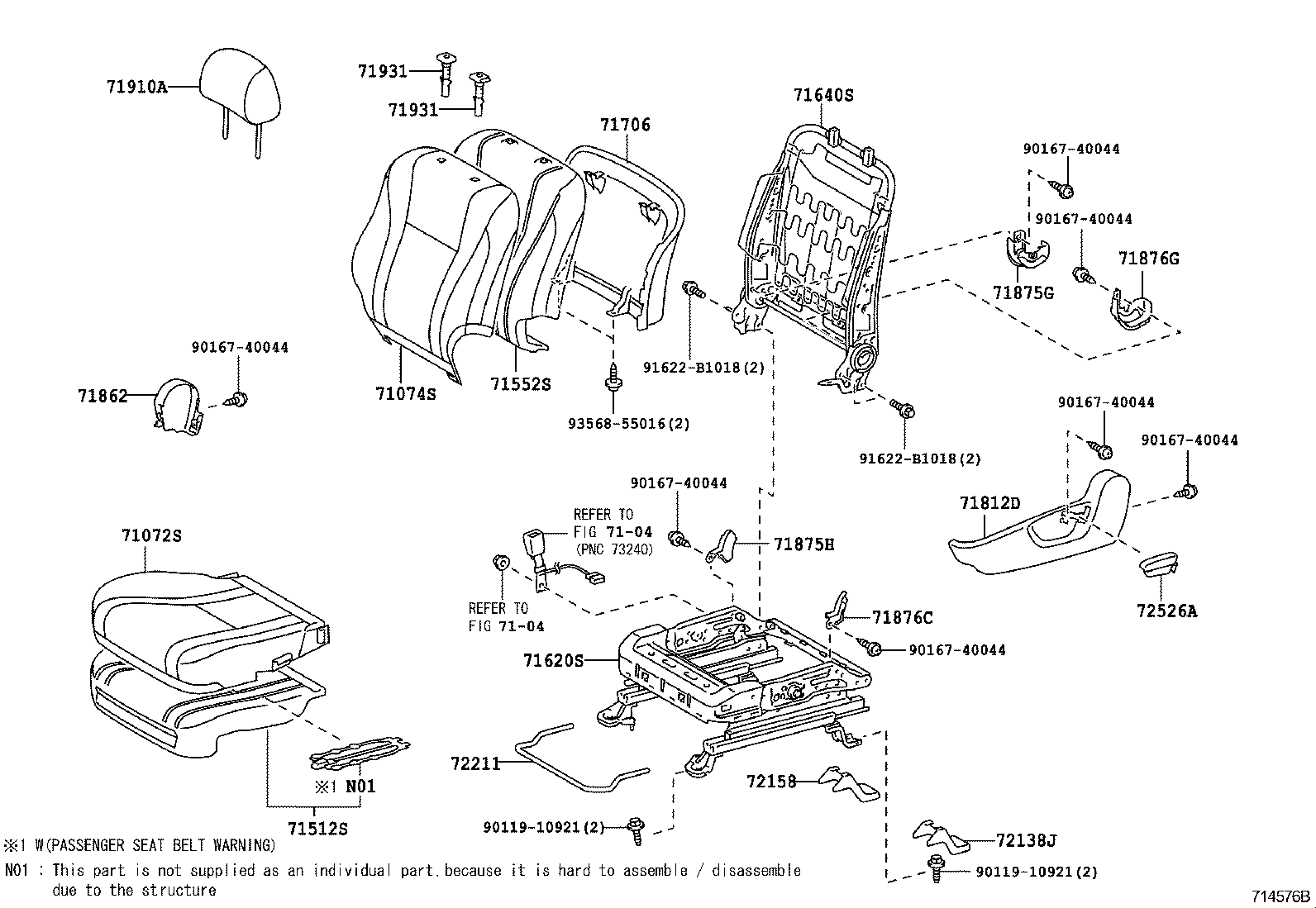

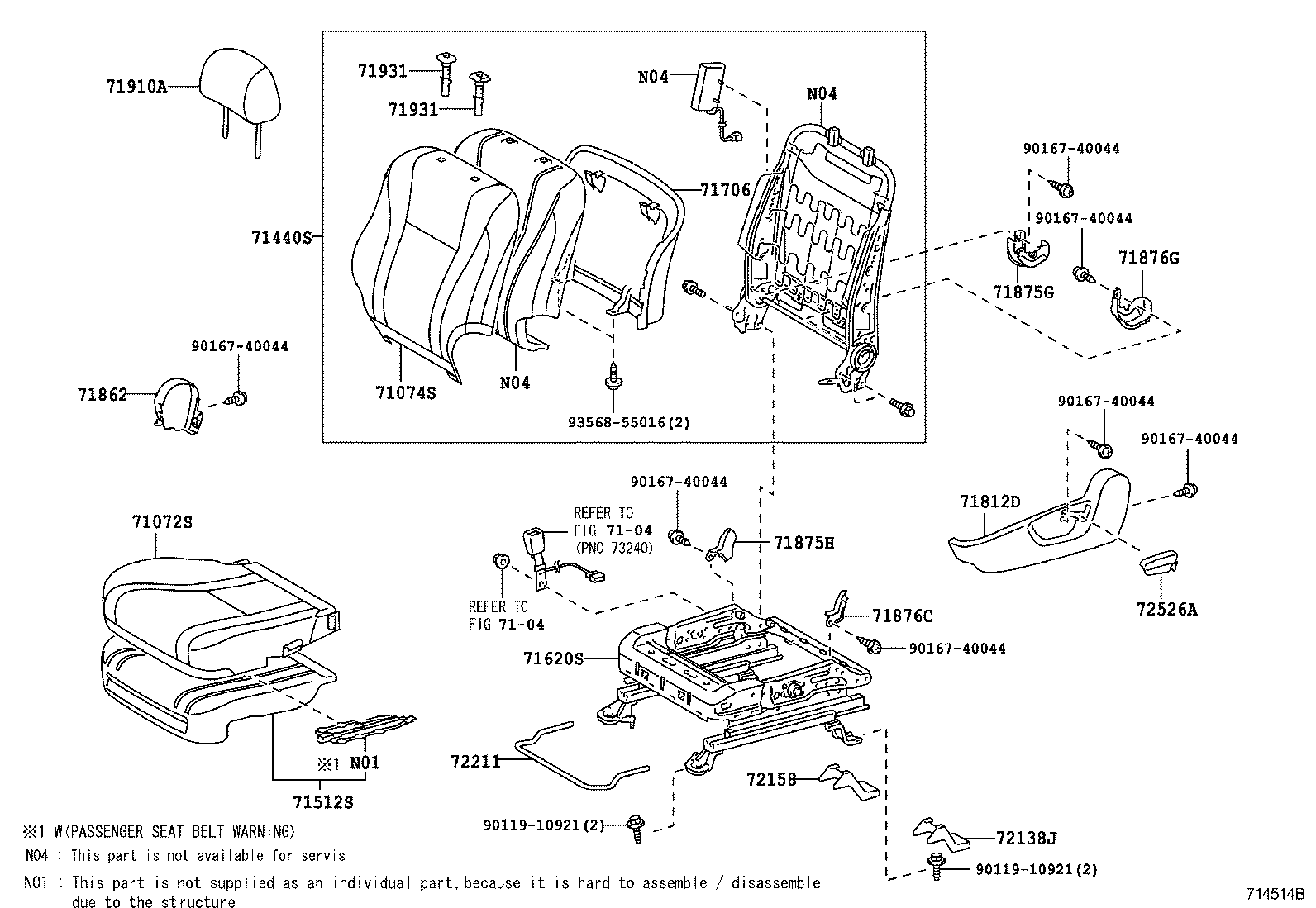

PASSENGER SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06660B0 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71072-06660B1 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06630B4 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71074-06640B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71074-06630B3 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71074-06640B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK. GRAY,TRIM15 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-06630B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71440-06630B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK.GRAY,TRIM15 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06130 |
ACV40..ALT |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06100 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN) |
1 | ||
| 71620-06210 |
ACV40..ALT |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-06030B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71706-06030B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06150B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71812-06150B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06090B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71862-06090B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06380 |
ACV40 |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06140B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71875-06140B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71876-06350B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06410 |
ACV40,GSV40..ALT,GL,SPVS |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B1 |
ACV40..ALT DK. GRAY,TRIM15 |
2 | ||
| 71910-06340B0 |
ACV40..ALT GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06060B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72138-06060B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72158-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06040B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72526-06040B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
(0606- )ALT

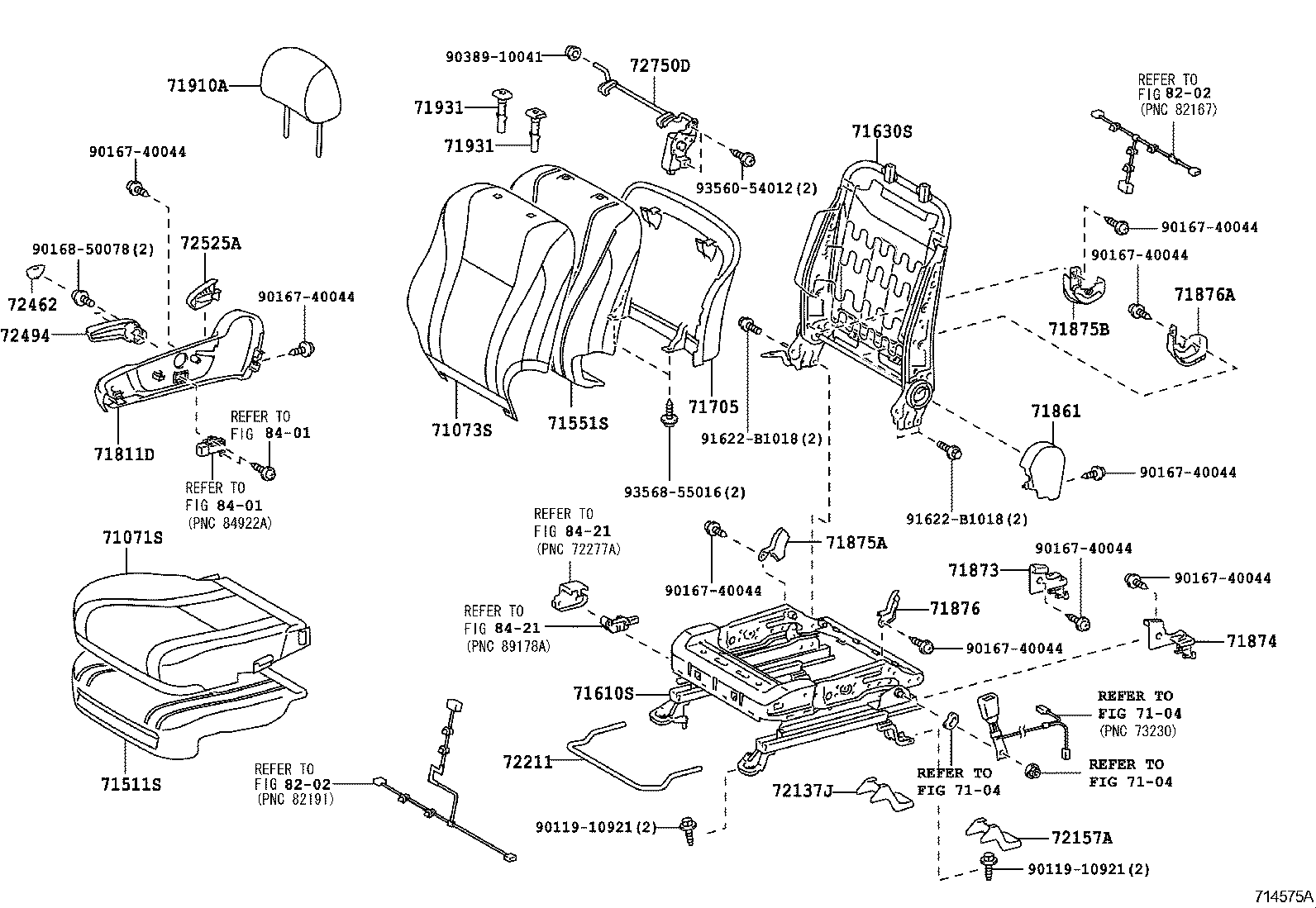

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06650B1 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71071-06650B0 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06780B3 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71073-06780B4 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71073-06800B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK.GRAY,TRIM15 |
1 | ||
| 71073-06800B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-06360 |
ACV40..ALT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-06230 |
ACV40..ALT,GL,GLX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-06100 |
ACV40..ALT |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-06280 |
ACV40..ALT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-06070B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71705-06070B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06140B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71811-06140B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06080B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71861-06080B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06330 |
ACV40 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06310 |
ACV40 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06140B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71875-06140B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06380 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71876-06350B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06410 |
ACV40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B1 |
ACV40..ALT DK. GRAY,TRIM15 |
2 | ||
| 71910-06340B0 |
ACV40..ALT GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72137-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72157-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-06030B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72462-06030B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-06040B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72494-06040B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06070B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 72525-06070B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-06030 |
ACV40..ARL |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 91622-B1018 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(0606- )ALT
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06660B0 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71072-06660B1 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06630B4 |
ACV40..ALT DK. GRAY,TRIM15 |
1 | ||
| 71074-06640B0 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),GRAY,TRIM13 |
1 | ||
| 71074-06630B3 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71074-06640B1 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),DK. GRAY,TRIM15 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06130 |
ACV40..ALT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-06170 |
ACV40..ALT,GL,GLX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06100 |
ACV40..ALT SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN) |
1 | ||
| 71620-06210 |
ACV40..ALT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-06210 |
ACV40..ALT,GL |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-06030B0 |
ACV40..ALT DK.GRAY,TRIM15 |
1 | ||
| 71706-06030B1 |
ACV40..ALT GRAY,TRIM13 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06150B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71812-06150B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06090B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71862-06090B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06380 |
ACV40 |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06140B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71875-06140B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 71876-06350B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06410 |
ACV40,GSV40..ALT,GL,SPVS |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B1 |
ACV40..ALT DK. GRAY,TRIM15 |
2 | ||
| 71910-06340B0 |
ACV40..ALT GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B4 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W(BUTTON),GRAY,TRIM13 |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..ALT,ATX W(LOCK)&W/O(BUTTON),GRAY,TRIM13 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06060B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72138-06060B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06070B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72158-06070B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06040B0 |
ACV40,GSV40..ALT,ATX DK.GRAY,TRIM15 |
1 | ||
| 72526-06040B1 |
ACV40,GSV40..ALT,ATX GRAY,TRIM13 |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 91622-B1018 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
