ACV40R-DEMDKQ (2006)
Toyota Camry/Aurion/Hv(Arl)
Production
Jun 2006
-
Jun 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

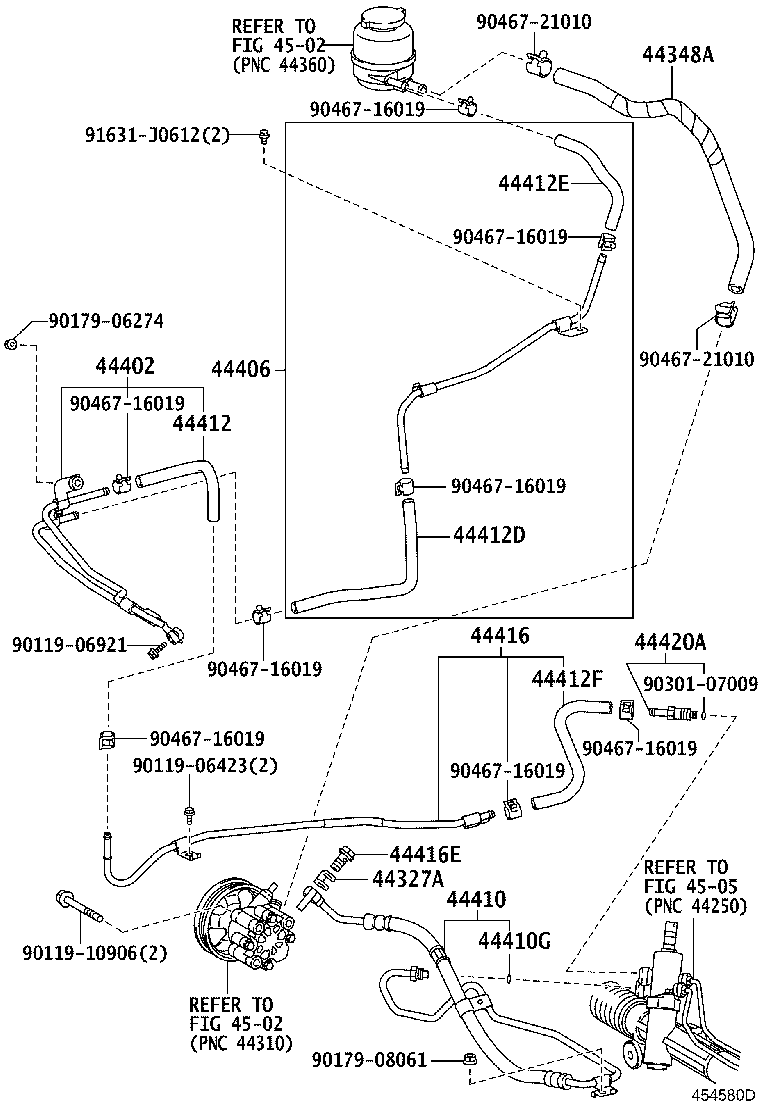

(0606-0904)ACV40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACV40,GSV40 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-33230 |
ACV40..ARL |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-06091 |
ACV40,GSV40 |
1 | ||
| 44402-06090 |
ACV40 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-06180 |
ACV40,GSV40 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-06260 |
ACV40..ARL |
1 | ||
| 44410-33201 |
ACV40..ARL |
1 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
ACV40..ARL |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-8Y006 |
ACV40 |
1 | ||
| 44412-8Y013 |
ACV40,GSV40 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-8Y007 |
ACV40,GSV40 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-8Y008 |
ACV40,GSV40 |
1 | ||
| 44412F - HOSE, RETURN, NO.3 | ||||
| 44412-8Y010 |
ACV40..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-06190 |
ACV40..ARL |
1 | ||
| 44416-06191 |
ACV40..ARL |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACV40,GSV40 |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-06010 |
ACV40..ARL |
1 | ||
| Common parts | ||||
| 90119-06423 | ||||
| 90119-06921 | ||||
| 90119-10906 | ||||
| 90179-06274 | ||||
| 90179-08061 | ||||
| 90301-07009 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||

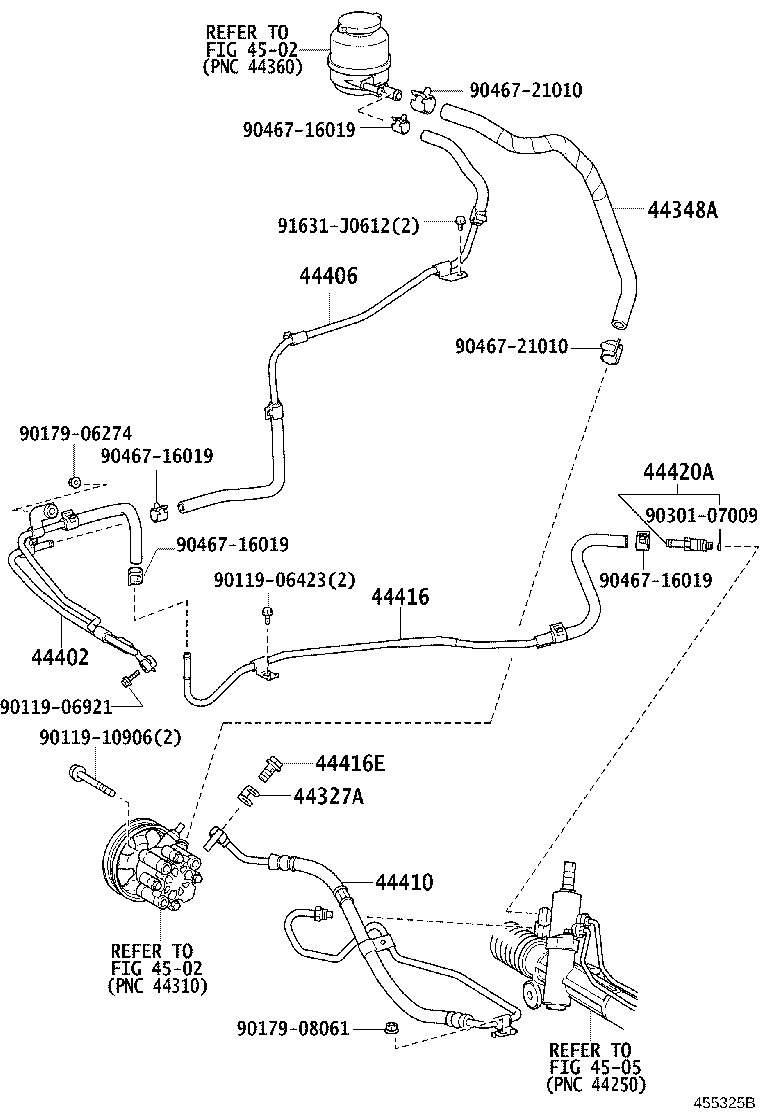

(0904- )ACV40..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACV40,GSV40 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-33230 |
ACV40..ARL |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-06091 |
ACV40,GSV40 |
1 | ||
| 44402-06090 |
ACV40 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-06180 |
ACV40,GSV40 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-06260 |
ACV40..ARL |
1 | ||
| 44410-33201 |
ACV40..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-06190 |
ACV40..ARL |
1 | ||
| 44416-06191 |
ACV40..ARL |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACV40,GSV40 |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-06010 |
ACV40..ARL |
1 | ||
| Common parts | ||||
| 90119-06423 | ||||
| 90119-06921 | ||||
| 90119-10906 | ||||
| 90179-06274 | ||||
| 90179-08061 | ||||
| 90301-07009 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
