ACV40R-DEAVKQ (2009)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2009 - Oct 2011
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

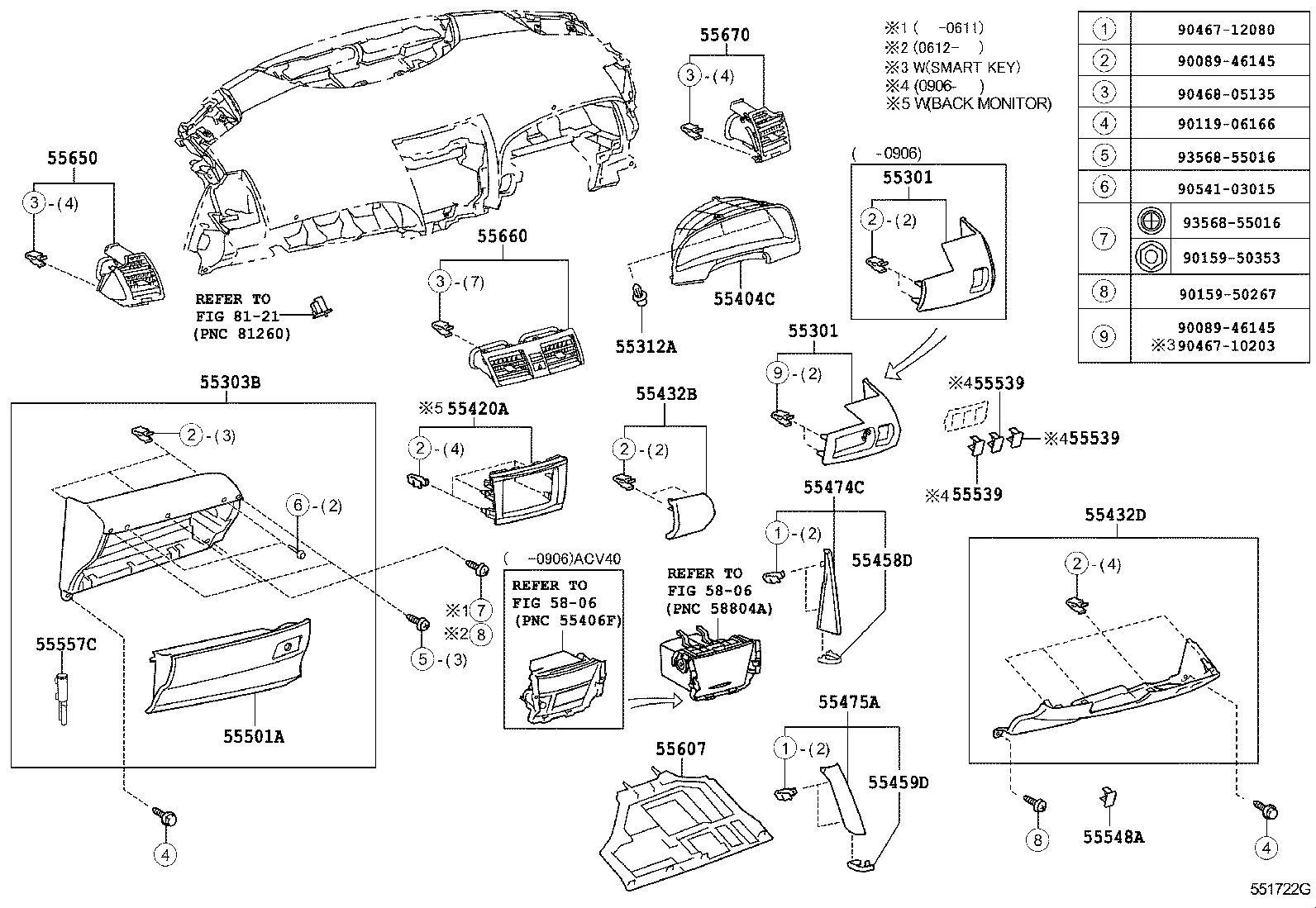

ILLUST NO. 2 OF 2(0606-1002)ACV40,AHV40..ARL

Click highlighted areas on diagram

diagram 55301 55301 55303B 55312A 55404C 55420A 55432B 55432D 55458D 55459D 55474C 55475A 55501A 55539 55539 55539 55548A 55557C 55607 55650 55660 55670 5806 5806 8121 9008946145 9008946145 9011906166 9015950267 9015950353 9046710203 9046712080 9046805135 9054103015 9356855016 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-06020B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55301-06250B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301-06020B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-06020B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55301-06250B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301-06020B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55303-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55312A - CLIP, INSTRUMENT PANEL
90467-0707122

ACV40,AHV40,GSV40

BLACK

 2
90467-0707122

ACV40

BLACK

 2
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-06040

ACV40,AHV40,GSV40..ARL

 1
55404-06040

ACV40..ARL

 1
55404-06041

ACV40,AHV40,GSV40..ARL

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-06040

ACV40..ALT,ATEVA,SPV

BACK MONITOR-WITH

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55480-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55480-06050B0

ACV40,GSV40..ATEVA,PRD,SPV,SPVS

DK.GRAY,TRIM1#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55302-06040B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55302-06040B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55458-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55459D - COVER, INSTRUMENT, LOWER LH
55459-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55459-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55474-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55475-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-06040B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55501-06040B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55548-06050B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55557C - DAMPER, GLOVE COMPARTMENT DOOR
55557-33030

ACV40,AHV40,GSV40

 1
55557-33030

ACV40

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-06050

ACV40,GSV40..ARL

 1
55607-06050

ACV40..ARL

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-06070B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55650-06070B0

ACV40,GSV40..ATX,SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-06100B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55660-06100B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-06120B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55670-06120B0

ACV40,GSV40..ATX,SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
Common parts
90089-46145
90119-06166
90159-50267
90159-50353
90467-10203
90467-12080
90468-05135
90541-03015
93568-55016
Linked diagrams
5806
8121

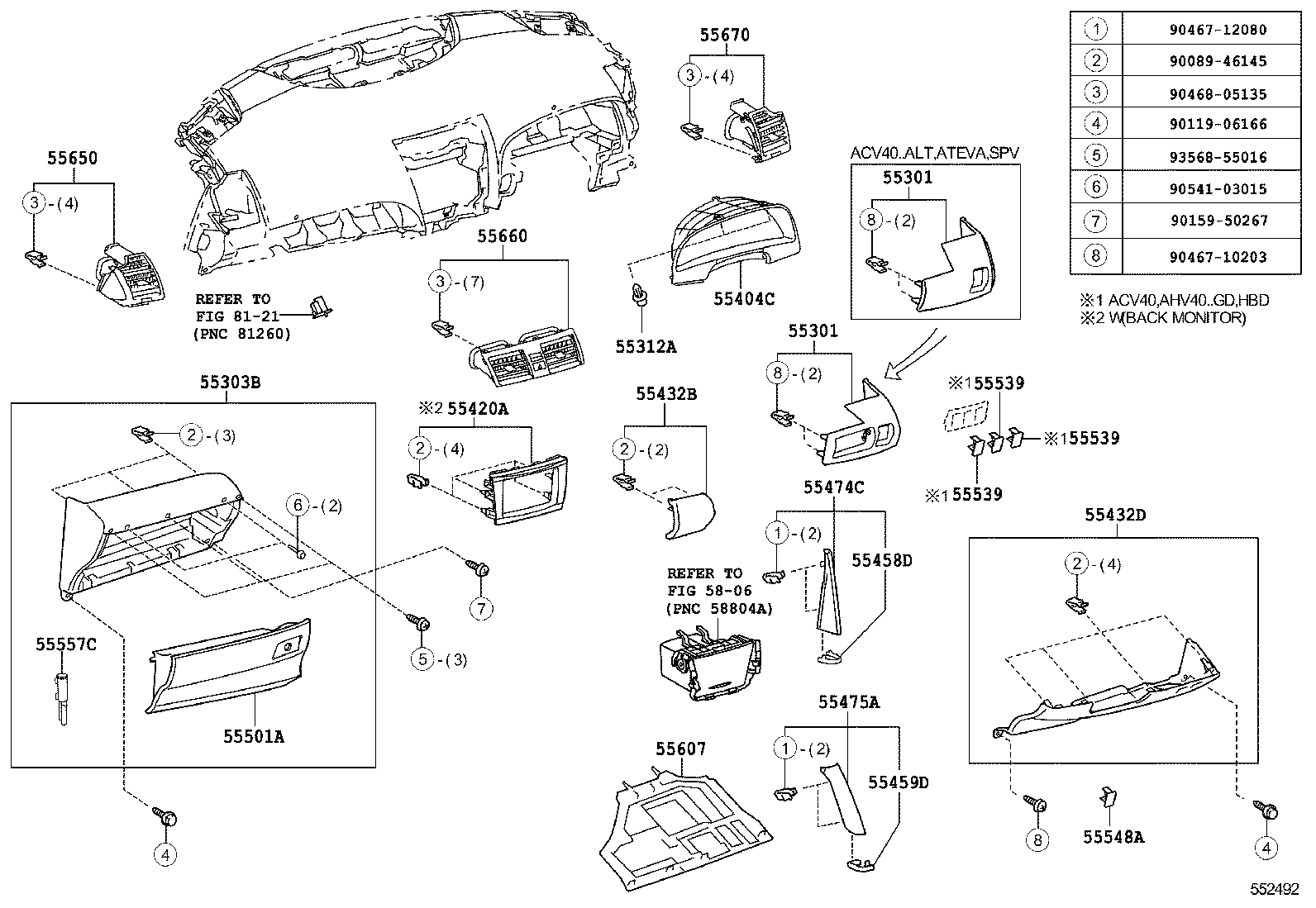

ILLUST NO. 2 OF 2(1002- )ACV40,AHV40..ARL

Click highlighted areas on diagram

diagram 55301 55301 55303B 55312A 55404C 55420A 55432B 55432D 55458D 55459D 55474C 55475A 55501A 55539 55539 55539 55548A 55557C 55607 55650 55660 55670 5806 8121 9008946145 9011906166 9015950267 9046710203 9046712080 9046805135 9054103015 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-06020B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55301-06250B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301-06020B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-06020B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55301-06250B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55301-06020B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55303-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55312A - CLIP, INSTRUMENT PANEL
90467-0707122

ACV40,AHV40,GSV40

BLACK

 2
90467-0707122

ACV40

BLACK

 2
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-06040

ACV40,AHV40,GSV40..ARL

 1
55404-06040

ACV40..ARL

 1
55404-06041

ACV40,AHV40,GSV40..ARL

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-06040

ACV40..ALT,ATEVA,SPV

BACK MONITOR-WITH

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55480-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55480-06050B0

ACV40,GSV40..ATEVA,PRD,SPV,SPVS

DK.GRAY,TRIM1#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55302-06040B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55302-06040B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55458-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55459D - COVER, INSTRUMENT, LOWER LH
55459-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55459-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55474-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-06040B0

ACV40..ATEVA,SE,SPV

DK.GRAY,TRIM1#

 1
55475-06040B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-06040B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55501-06040B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-06050B0

ACV40..ATEVA,SPV

DK.GRAY,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-06050B0

ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
55548-06050B0

ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,SPV,SPVS,SPVZ)..ARL

DK.GRAY,TRIM1#

 1
55557C - DAMPER, GLOVE COMPARTMENT DOOR
55557-33030

ACV40,AHV40,GSV40

 1
55557-33030

ACV40

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-06050

ACV40,GSV40..ARL

 1
55607-06050

ACV40..ARL

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-06070B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55650-06070B0

ACV40,GSV40..ATX,SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-06100B0

ACV40..SPV

DK.GRAY,TRIM1#

 1
55660-06100B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-06120B0

ACV40..ATEVA,GD,SE,SPV

DK.GRAY,TRIM1#

 1
55670-06120B0

ACV40,GSV40..ATX,SPV,SPVS,SPVZ

DK.GRAY,TRIM1#

 1
Common parts
90089-46145
90119-06166
90159-50267
90467-10203
90467-12080
90468-05135
90541-03015
93568-55016
Linked diagrams
5806
8121
