ACV40R-DEANKQ (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

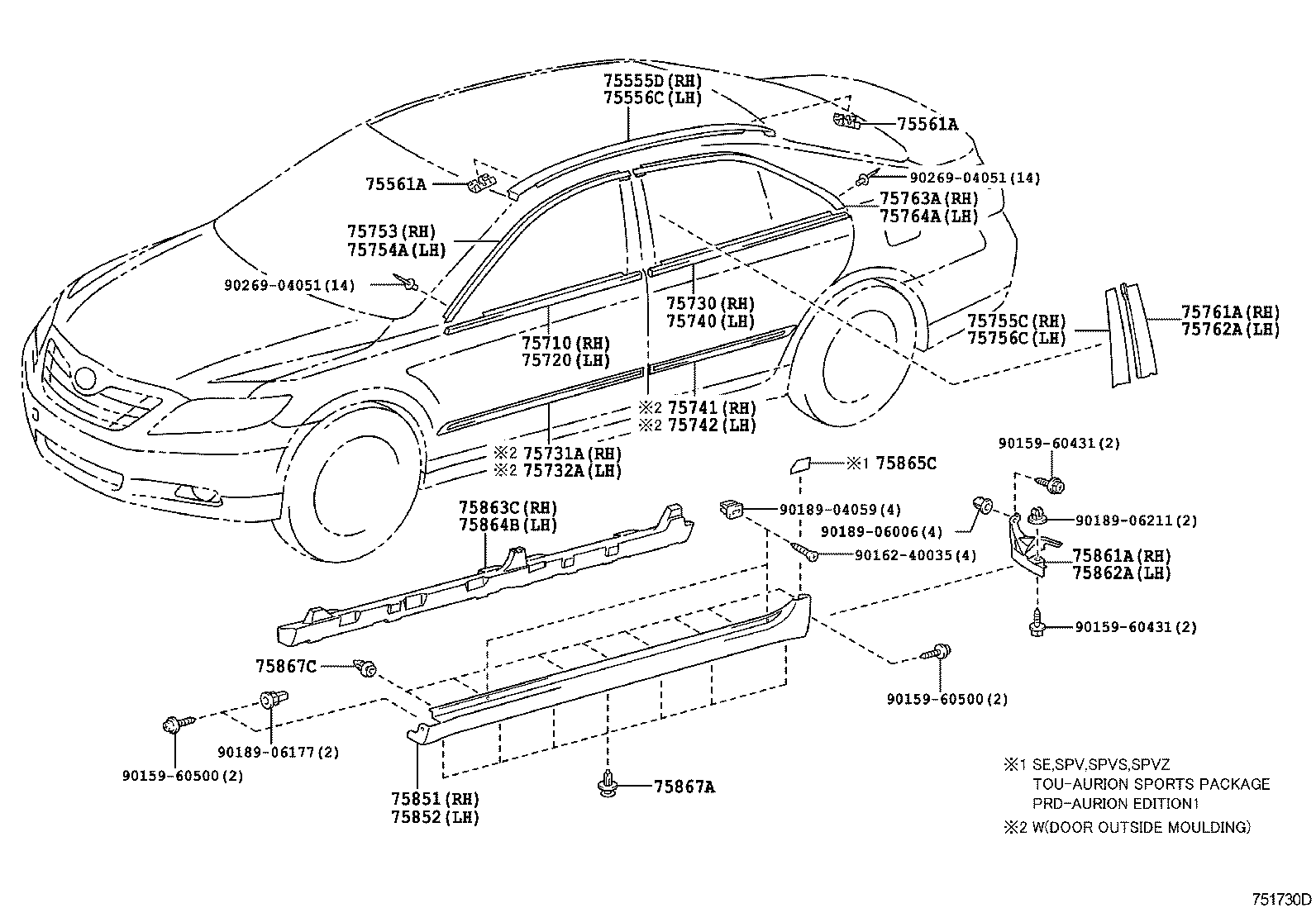

Click highlighted areas on diagram

diagram 75555D 75556C 75561A 75561A 75710 75720 75730 75731A 75732A 75740 75741 75742 75753 75754A 75755C 75756C 75761A 75762A 75763A 75764A 75851 75852 75861A 75862A 75863C 75864B 75865C 75867A 75867C 9015960431 9015960431 9015960500 9015960500 9016240035 9018904059 9018906006 9018906177 9018906211 9026904051 9026904051
Part # Description Qty Price
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-33030

ACV40

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-33030

ACV40

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-YC020

ACV40

 4
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-YC020

ACV40

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-06110

ACV40

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-06110

ACV40

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-06090

ACV40

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-8Y002

GSV40..SPVS,SPVZ;ACV40..ALT,ATEVA,GD,SE,SPV

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-8Y002

GSV40..SPVS,SPVZ;ACV40..ALT,ATEVA,GD,SE,SPV

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-06090

ACV40

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-8Y003

GSV40..SPVS,SPVZ;ACV40..ALT,ATEVA,GD,SE,SPV

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-8Y003

GSV40..SPVS,SPVZ;ACV40..ALT,ATEVA,GD,SE,SPV

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-06060

ACV40

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-06060

ACV40

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-33010

ACV40

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-33010

ACV40

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-33010

ACV40

NO PAINT REQ.

 1
75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-33010

ACV40

NO PAINT REQ.

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-06070

ACV40

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-06070

ACV40

 1
75851 - MOULDING, ROCKER PANEL, RH
75851-06906

ACV40..ALT,ATEVA,GD,GL,GLX

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-06906

ACV40..ALT,ATEVA,GD,GL,GLX

 1
75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1
75861-06020

ACV40

 1
75862A - PROTECTOR, ROCKER PANEL MOULDING, NO.2
75862-06030

ACV40

 1
75863C - PROTECTOR, ROCKER PANEL MOULDING, NO.3
75863-06060

ACV40..ALT,ATEVA,GD,GL,GLX

 1
75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4
75864-06060

ACV40..ALT,ATEVA,GD,GL,GLX

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-30120

ACV40

 14
75867C - CLIP, ROCKER PANEL MOULDING
75867-33030

ACV40

 16
Common parts
90159-60431
90159-60500
90162-40035
90189-04059
90189-06006
90189-06177
90189-06211
90269-04051
